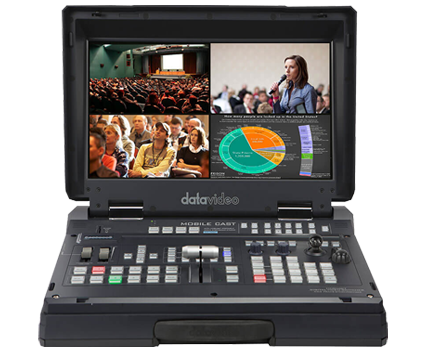

Datavideo HS-1600T Mark II Portable Video Streaming Studio
Datavideo HS-1600T Mark II, 4-Channel HD/SD HDBaseT Portable Video Streaming Studio with PTZ Camera Control
Email me when the availability or price changes
Finance this product
- From £150.71 / month (APR 16.9%) or 0% for 4 months
- With a 10% deposit from just £142.03 / month (APR 19.9%)
Datavideo - 'HS-1600T Mark II'
'4-Channel HS/SD HDBaseT
Portable Video Streaming Studio'
Made for Mobility, Made for the webThe HS-1600T Mark II brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable "briefcase" design and HDBaseT Technology. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time.

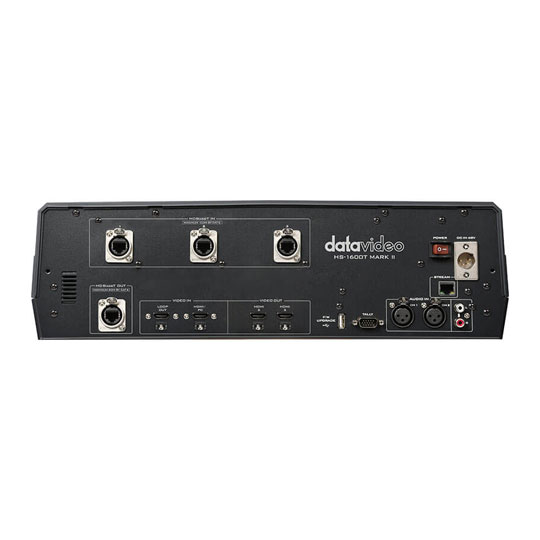

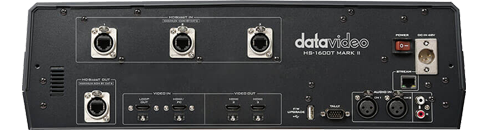

Variety of video and audio input/ouput4 video inputs (RJ-45 x 3 + HDMI x 1) and 4 video (HDMI x 3)+HDBaseT outputs
Audio inputs: XLR Analogue x 2 + RCA Analogue (L/R) x 2

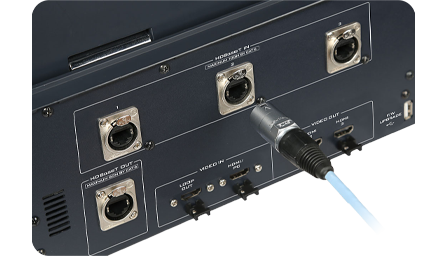

Increased Flexibility with HDBaseT
Made with HDBaseT TechnologyCamera connections typically require one cable for video, a second cable for power, and a third one for control. However, the HS-1600T Mark II is able to do all of the above using only one ethernet cable for each camera. This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations (like spots without nearby power outlets)
*Neutrik Connector not included.

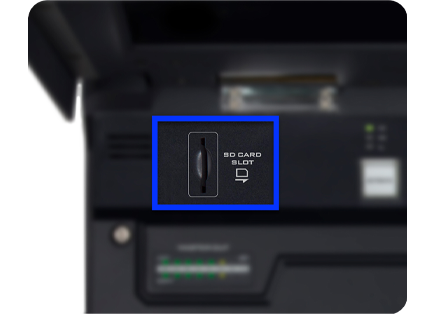

Built-in H.264 recorder for SD cardsThe HS-1600T Mark II comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network of your choice or to your website.

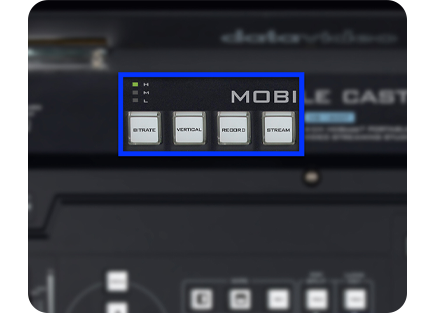

Dual Stream encoder to Facebook Live, YouTube, Twitch, and moreDual Stream encoder to Facebook Live, YouTube, Twitch, and more

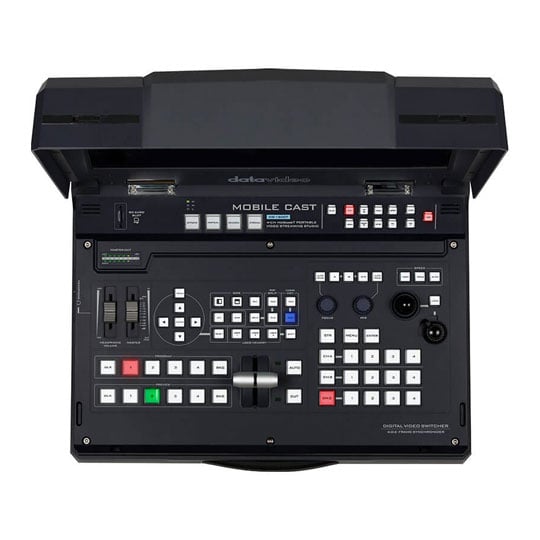

Built-in Control for PTZ Cameras

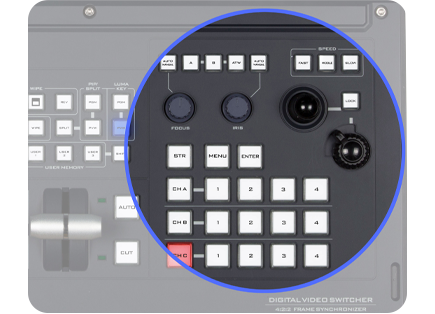

Built-in camera controlThe HS-1600T Mark II's next generation design saves you time, money, and table space with its built-in camera control interface for up to 3 Datavideo PTZ cameras. (Works with PTC-140T and PTC-150TL)

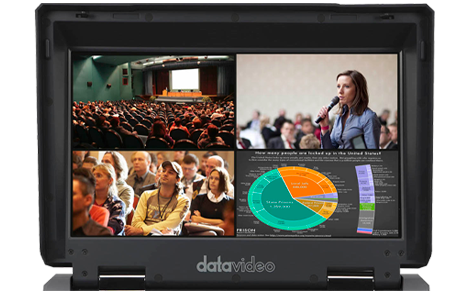

17.3" LED Backlit MonitorBuilt-in Monitor Display. 17.3” HD TFT LED backlit monitor with resolution 1920x1080 pix.
dvCloud Compatibility
Seamlessly compatible with dvCloudGet the most out of your streaming hardware using DVCloud. The HS-1600T Mark II is seamlessly compatible with Datavideo’s DVCloud service.
This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.
You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform.
Direct SRT streaming to dvCloud prevents hickups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP.
The Tech Spec
| Features | Specification | Video Standard | HD & SD |
|---|---|
| Video Format | 1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz 576i/p 50Hz 480i/p 59.94Hz |
| Input Routable / Crosspoint | N/A |
| Video Inputs | 3 x HDBaseT 1 x HDMI |
| Computer Graphic Interface | 1 via HDMI |
| Down-converted Output | Yes |
| Video Outputs | 2 x HDMI PGM 1 x HDBaseT (RJ-45) 1 x Stream Port (RJ-45) |
| Audio Inputs | 2 x Balanced XLR 1 x Stereo RCA (L/R) De-embedded Digital Audio |
| Audio Output | 1x Stereo headphone |
| Digital Embedded Audio Support | Input 2 channels Output 2 channels |
| Audio Delay Calibration | N/A |
| A+V Switching | N/A |
| USK | 1x USK Lumakey support |
| DSK | N/A |
| Picture in Picture | 1 |
| Logo Insertion | N/A |
| Built-in-Audio Mixer | 4 channels |
| Built-in Monitor Display | 17.3” HD TFT LED Backlit 1920x1080 pixels |
| Built-in Intercom & Tally | N/A |
| Streaming Video Encode | H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps |
| Streaming Audio Encode | AAC-LC Configurable bit rate ranging from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit |
| Streaming Protocol | TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP RTMP/RTMPS (Publish) |
| Streaming Control | Web UI for system configuration and control |
| Recording File System | FAT, exFAT, NTFS |
| Recording File Format | MP4 |
| Recording Setting Control | Web UI for system configuration and control |
| Dimension (LxWxH) | 455 x 355 x 134 mm |
| Weight | 7.8 kg, Reinforce Plastic Case |
| Power | DC 48V, 4.16A |
| Operating Temp. Range | 0~40 °C |
| Whats in the Box | 1 x HS-1600T Mark II Product 1 x AD Switch DC 56V with AC Cord 1 x Thank You Card 3 x Ethernet Cables (55in. / 140cm) |
