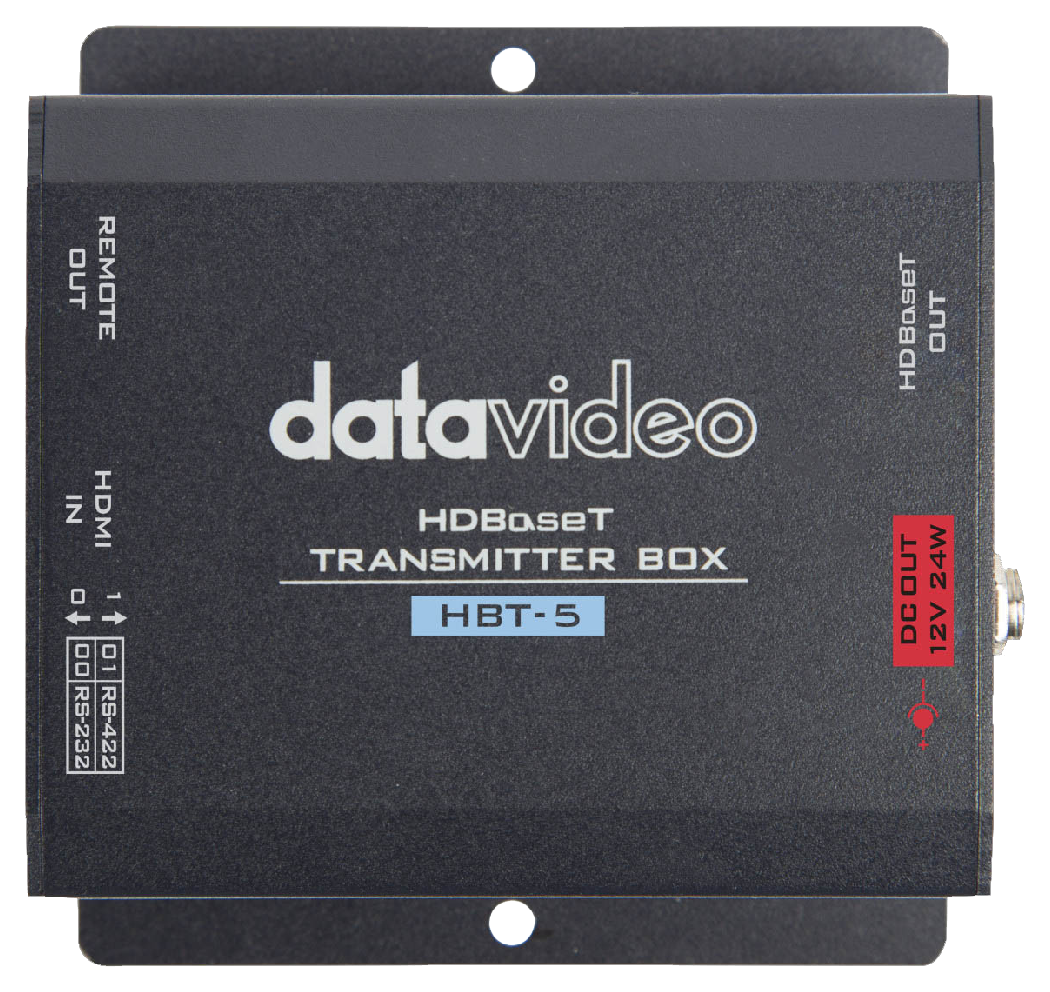

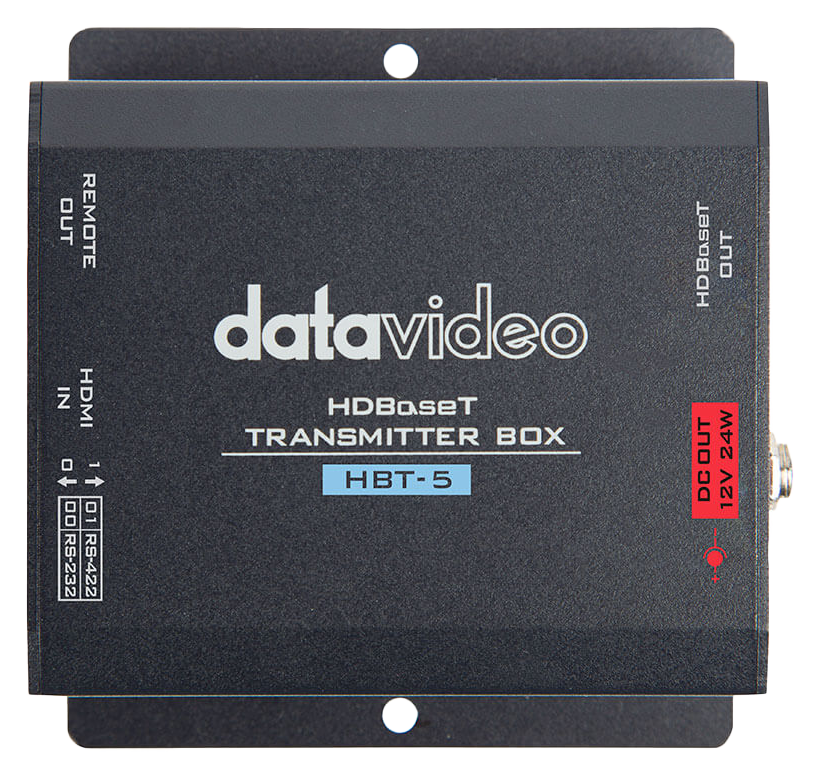

Datavideo - 'HBT-5 HDBaseT Transmitter'

HDMI Deep Colour & full 3D & 4K@30Introducing the Datavideo HBT-5 Transmitter Box, featuring cutting-edge HDBaseT technology, this powerful transmitter box supports HDMI Deep Colour, full 3D, and stunning 4K2K@30 resolution, ensuring your visuals remain vivid and captivating. This innovative device transmits HDMI signals up to 60 meters at 1080p and 35 meters at 4K@30 using just a Cat 6 cable. HDCP compliance guarantees secure content transmission, while the EDID pass-through effortlessly bridges the gap between your source and display. Experience pure, uncompressed 7.1-channel digital HDMI over Cat.5/5e/6 cable transmission, enabling you to immerse yourself in pristine DTS-HD Master Audio and Dolby TrueHD high bit rate audio support.
HDMI Deep Colour

HDMI Deep Colour supports better colour depthsHDMI Deep Colour supports better colour depths. To giving your display device a great image.
Transmits Up To 60m

Transmits HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cableThe extender supports Ultra HD and Full HD resolution and the accompanying digital audio.
Multiple Power Options

Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitterHBT-5 transmitter can be powered by the same single power source using Power-over-Ethernet (PoE), easy to install for various applications. Support 12V power out for remotely located equipment.
HDCP Compliant

HDCP compliantCan perfectly display the video source with HDCP in high clarity with zero interruption.
Multiple Control Options

Supports control over RS-232/ RS-422HBT-5 offers RS-232/RS-422 control signals, which allow to control the source device from the display location.
EDID Pass Through

Supports default EDID and EDID learning from the displayEDID pass-through passes signal between the source and display.
Dolby Audio Support

Dolby TrueHD & DTS Master audio supportSupports Dolby Digital, DTS-HD and Dolby TrueHD audio
Compatible With Datavideo HDBaseT Cameras

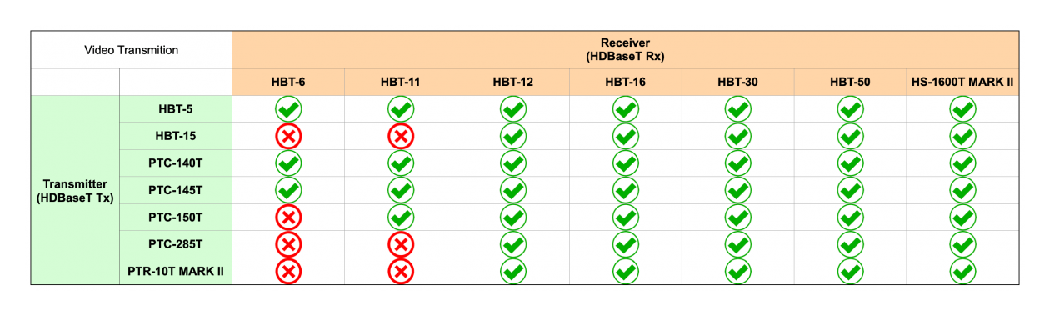

PoE Compatibility ListThe chart above shows the product's direct compatibility with other HDBaseT products.
