??The PUV-1510TX Transmitter enables transmission of video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), and LAN signals up to 100m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.
• HDCP 2.2 Compliant.
• Supports uncompressed video/audio up to 10.2Gbps.
• Supports HDCP repeating and CEC functions.
• Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings.
• 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7.
• 1080p signals can be transmitted up to 100m via CAT5e/6/6a/7.
• Audio support up to 7.1CH & Dolby TrueHD, DTS-HD.
• 5-Play™ convergence: HDMI, LAN, Bi-Directional POE & Control (IR & RS232).
• Supports 3D signals.

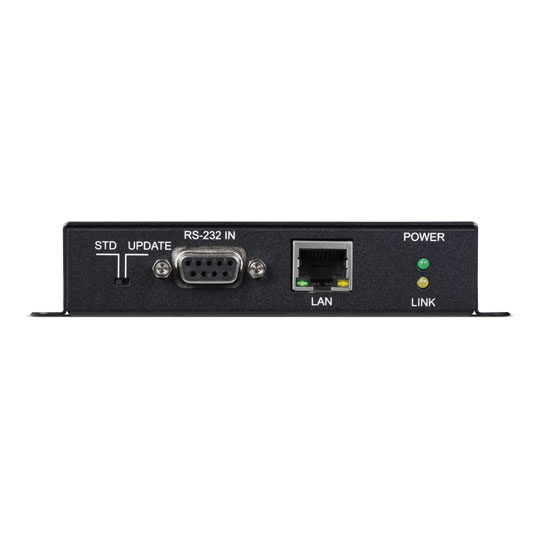

Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 9pin Dsub [1x RS-232 Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
Outputs: 1x RJ45 [1x HDMI & Propriety Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter], 1x RJ45 [1x Ethernet (I/O) IP]
PSU: 48V/0.83A
Dimensions: 116mm [W] x 106mm [D] x 27mm [H]
Net Weight: 360g
Gross Weight: 680g
