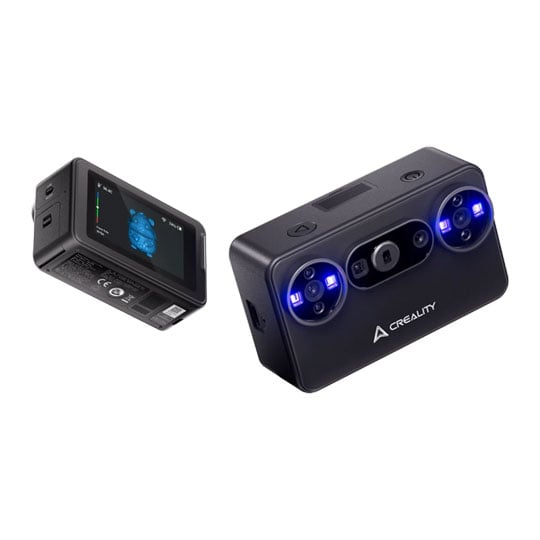

Creality PIKA Handheld Portable 3D Scanner

Creality Pika 3D Scanner

Bring real-world objects into the digital world with the Creality Pika 3D Scanner, a compact and portable solution designed for detailed 3D scanning, modelling and 3D printing workflows. Combining 7 parallel blue laser lines with NIR structured light, Pika delivers up to 0.03mm accuracy for capturing fine details and complex surfaces, while scanning at up to 110fps when connected to a PC for smooth, efficient capture. Its lightweight 260g design, built-in 3-inch touchscreen and wireless connectivity make it easy to take anywhere, while AI-assisted processing through CrealityScan helps turn captured data into usable 3D models. With support for objects ranging from small components to larger subjects and the ability to capture full-colour data, the Creality Pika provides a versatile tool for makers, designers, engineers and 3D printing enthusiasts.

Dual Scanning Modes

Choose the right scanning technology for your project with two dedicated scanning modes. The 7 Parallel Blue Laser mode is designed for capturing fine details and complex contours with greater precision, while NIR Structured Light provides a wider scanning range suited to larger objects and more flexible scanning applications.

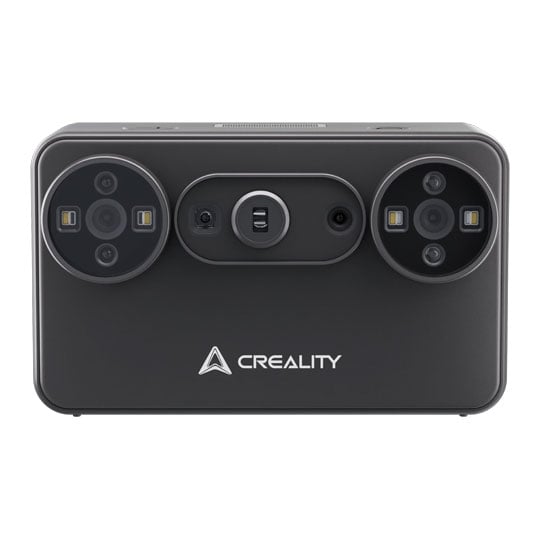

High-Precision Blue Laser Scanning

Capture intricate details with the 7 Parallel Blue Laser mode, offering accuracy of up to 0.03mm and 3D resolution from 0.1-2mm. With support for marker, global marker and marker-free alignment, it's well suited to detailed scanning of smaller objects, components, models and other complex shapes.

Versatile NIR Structured Light

For larger objects and more flexible scanning, switch to NIR Structured Light. This mode offers up to 0.1mm accuracy, a working distance of up to 1,000mm and Geometry/Texture alignment, making it suitable for larger subjects and applications including body scanning.

Fast 3D Scanning

Scan efficiently with speeds of up to 110 FPS on PC using Blue Laser mode, or up to 40 FPS when scanning with a phone. NIR Structured Light provides speeds of up to 30 FPS on PC and 20 FPS on a phone, giving you flexibility depending on the scanning mode and device you're using.

Full-Colour Scanning

Capture colour information alongside 3D geometry with colour mapping, helping create more detailed digital representations of real-world objects. NIR Structured Light is particularly suited to full-colour capture, making it useful for applications where both shape and surface appearance are important.

Compact & Portable Design

Take your scanner wherever your projects require it. Weighing just 260g, the lightweight Pika is easy to handle during extended scanning sessions and convenient to carry between workspaces, workshops and other locations.

Scan in Bright Outdoor Conditions

Pika is designed to handle challenging lighting conditions, with Blue Laser scanning supporting up to 110,000 lux and NIR Structured Light supporting up to 80,000 lux with the NIR filter. This gives you greater freedom to scan both indoors and outdoors.

Marker-Free Scanning

Reduce preparation time with marker-free scanning in Blue Laser mode. This allows you to begin scanning compatible objects without placing markers across their surface, while marker and global marker alignment options remain available when additional tracking is beneficial. Creality specifies that marker-free laser scanning is available in wired PC mode.

AI-Assisted Processing

Once you've captured your scan, AI-assisted processing in CrealityScan helps turn your captured data into usable 3D models. Pika supports common formats including STL, OBJ, PLY and ASC, making it suitable for 3D printing, modelling and digital creation workflows.

Portable Design

Weighing just 260g including the battery and measuring 100 × 60 × 35mm, Pika is compact enough to take between workspaces or out on location. Its integrated battery, touchscreen and wireless connectivity make it particularly suited to portable scanning.

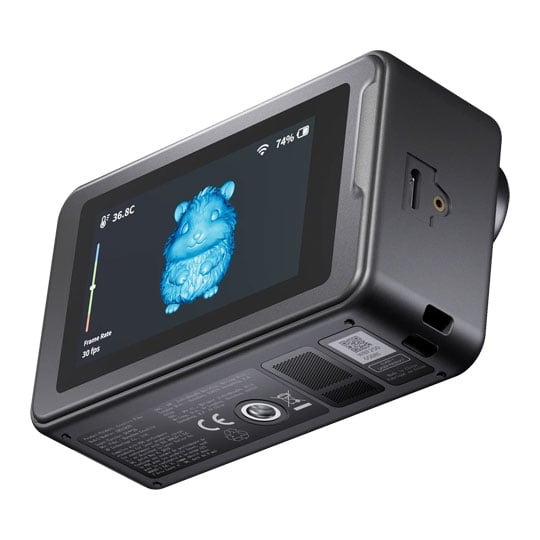

Built-In Touchscreen

The integrated 3-inch touchscreen provides direct access to scan settings, status information and device controls, helping you manage your scanning workflow without constantly reaching for a connected device.

Wi-Fi 6 Connectivity

With Wi-Fi 6 alongside USB Type-C/USB 3.0 connectivity, Pika supports wireless scanning workflows as well as a wired PC connection. Creality specifically supports wireless PC operation, while marker-free laser scanning requires a wired PC connection.

• ual Scanning Modes - Choose between 7 Parallel Blue Laser and NIR Structured Light for different scanning applications.
• Up to 0.03mm Accuracy - Achieve high-precision results with Blue Laser scanning.
• 7 Parallel Blue Laser Lines - Capture fine details and complex contours with precision.
• NIR Structured Light - Scan larger objects and subjects across a wider working distance.
• Up to 110 FPS Scanning - Capture quickly with Blue Laser mode when connected to a PC.
• Up to 40 FPS on Phone - Enjoy fast Blue Laser scanning when using a compatible mobile device.
• Full-Colour Scanning - Capture colour information alongside 3D geometry.
• Marker-Free Scanning - Scan compatible objects without applying markers when using wired PC Blue Laser mode.
• Up to 110,000 Lux Outdoor Scanning - Blue Laser mode supports scanning in bright outdoor conditions.
• AI-Assisted Processing - Use CrealityScan to help process captured data into usable 3D models.
• 3-Inch Touchscreen - Access scan settings, status information and device controls directly from Pika.
• Wi-Fi 6 Connectivity - Supports convenient wireless scanning workflows.
• 3350mAh Battery + Backup Battery - Includes a spare battery for extended scanning sessions.
• 260g Lightweight Design - Compact and portable for scanning at home, in the workshop or on location.
• 3D Printing Ready - Export scans in formats including STL, OBJ, PLY and ASC for use in 3D printing and modelling workflows.
