Cranborne Audio C.A.S.T. Introduction Bundle

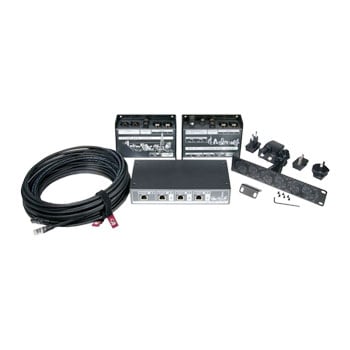

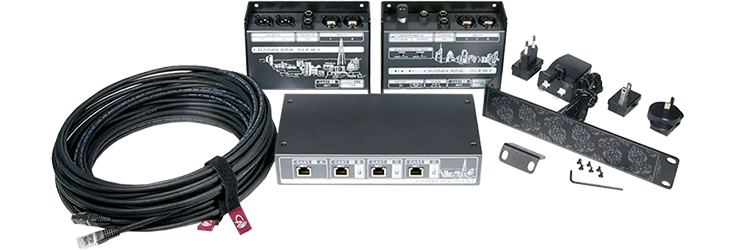

Everything You Need In One Package!The Cranborne Audio C.A.S.T. Introduction Bundle features all of the essentials you need to get your studio set up and connected using Cranborne Audio’s proprietary cable management system, C.A.S.T. This package includes the N8, which works as central connectivity hub, along with the N22 and N22H breakout boxes. The C.A.S.T. Intro Bundle is the perfect entry-level into the world of C.A.S.T. and comes with two 10m Cat 6 cables and other accessories to get you going.

C.A.S.T. enables you to deploy analogue patch points and stageboxes throughout your studio and directly to where they're required'. Instead of dealing with multiple XLR cables and endless clutter, C.A.S.T. can replace 4 XLR cables using a single network cable for tidy cable management, high-quality sound you can rely on, and easier set up during mobile recording.

At A Glance • Bundle with 4 Cranborne Audio products and 2x 10m C.A.S.T cables for instant C.A.S.T. connectivity
• 2 breakout boxes included allow for connectivity of up to 4 C.A.S.T. breakout boxes
• C.A.S.T. IN A, B, C, and D ports on RH45 with 2 dedicated Input and output paths each
• Fully-balanced, high-quality audio paths
• Completely passive operation

C.A.S.T. Distribution Hub

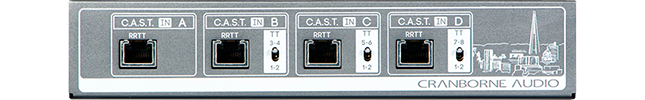

& Audio Over Cat 5 SystemWhen using an N8 Distribution Hub and C.A.S.T., you can use standard network cables to distribute IO, headphone amps. mic preamps, and more across your studio with plug-and-play simplicity. With Input and Output connectors on DB25, N8 converts 8 analogue inputs and 8 analogue outputs to Cranborne Audio’s proprietary C.A.S.T. system.

With 4 dedicated C.A.S.T. ports, N8 allows up to 4 Cranborne Audio breakout boxes to be connected simultaneously for 16 channels of audio routing with any audio interface, mixer, or audio installation.

Amazing Features • C.A.S.T. Distribution Hub and Audio Over Cat 5 System
• Compatible with any shielded Cat 5e/Cat 6/Cat 7 cable with distances up to 100m/330ft
• C.A.S.T. IN A, B, C, and D ports on RH45 with 2 dedicated Input and output paths each
• Improved crosstalk performance with high-performance Cat 6 and Cat 7
• Fully-balanced, high-quality audio paths
• Completely passive operation

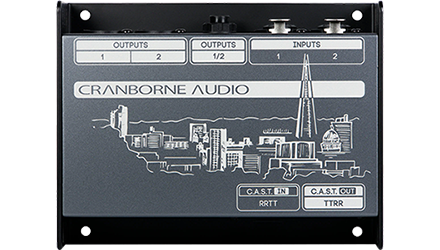

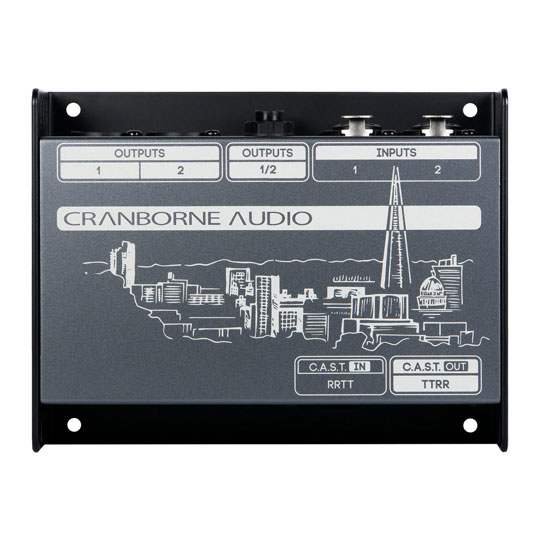

Cat 5 Snake & C.A.S.T. Breakout BoxThe Cranborne Audio N22 is a standalone 4 channel Cat 5 snake and advanced audio distribution system using C.A.S.T. Essentially, the N22 replaces 4 balanced XLR cables with 1 shielded Cat 5e, Cat 6, and Cat 7 cable over distances of up to 100m. Featuring the C.A.S.T. system, N22 distributes audio around studios or stages by repurposing the internal copper wires of shielded Cat 5e, Cat 6, and Cat 7 cable to send balanced analogue audio between other C.A.S.T. enabled products - like another N22.

Studios already built around a Cranborne Audio interface can use N22’s to transform their studio space. Put the N22 in a live room and audio connected to N22 will appear directly at the interface's inputs ready recording. The same C.A.S.T. connection can also send a stereo monitor mix from the interface directly to N22’s balanced outputs.

At A Glance • Standalone 4-channel Cat 5 snake and C.A.S.T. audio distribution system
• Transmit 4 channels of balanced analogue audio over distances of up to 100 meters
• Replaces 4 balanced XLR cables with 1 Cat 5 cable using C.A.S.T.
• Uses Cat 5e, Cat 6, or Cat 7 Ethernet cable

Reference-Grade Headphone Amplifier

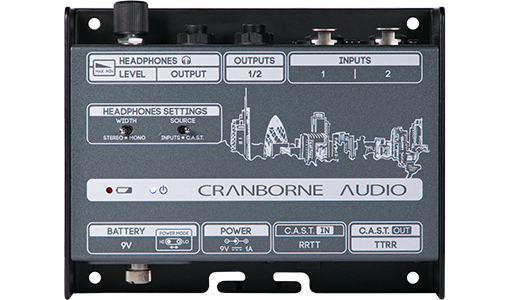

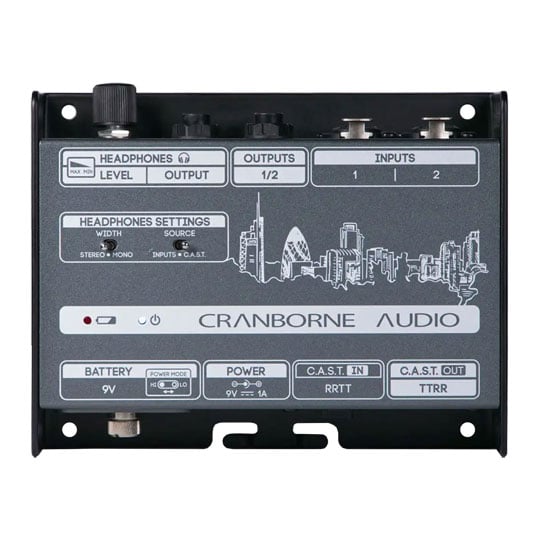

Cat 5 Snake & C.A.S.T. Breakout BoxThe Cranborne Audio N22H is a reference-grade headphone amplifier with advanced C.A.S.T. cable management, battery power, and switchable power modes. N22H works as a headphone amp that can be deployed right beside the musician where it is needed. Using the C.A.S.T. system, N22H can be connected on the end of a 100m (330ft) shielded Cat 5e, Cat 6, and Cat 7 cable and provide a headphone mix directly to the musician during tracking.

Based around the same custom design found in the renowned 500R8 interface, N22H’s headphone amplifier achieves a flat Frequency Response from 0.8Hz to above 250kHz and ultra-low distortion (0.0009% THD+N, 100 kOhm load) allowing it to power headphones with clean, transparent power during crucial listening, mixing, and mastering.

At A Glance • Two balanced combi jack inputs with two balanced XLR and 1/4” jack outputs
• Compatible with any shielded Cat 5e/Cat 6/Cat 7 cable with distances up to 100m/330ft
• Improved crosstalk performance with high-performance Cat 6 and Cat 7 (recommended)
• C.A.S.T IN RRTT Port and C.A.S.T OUT TTRR Port
• 9V Battery compartment and 9V DC Power Inlet
• Reference-quality headphone amplifier
