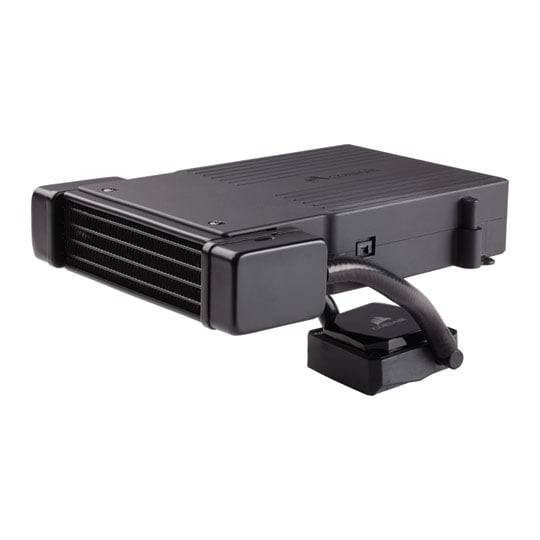

Corsair H5 SF Low Profile AIO Hydro/Liquid CPU Cooler

Corsair Hydro Series H5 SF All-In-One Low-Profile Liquid CPU Cooler, Mounts to any Mini ITX Motherboard, For SFF PCs

Scan code: LN68701 Manufacturer code: CW-9060023-WW Request call
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 31st Jul 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Quiet, powerful low-profile liquid CPU cooling for high-performance Mini-ITX PCs
The Hydro Series H5 SF is a low profile liquid CPU cooler that provides efficient cooling for small form factor Mini-ITX systems. Building a small form factor system shouldn't have to mean compromising on processor speed, and with the H5 SF you can provide reliable cooling for your system's high performance CPU.

Lots of cooling power in a small size
The H5 SF solves the problem of providing effective liquid cooling for high performance CPUs in cases where a full-sized Hydro Series liquid CPU cooler won't fit.

Universal Mini-ITX compatibility
The H5 SF was originally developed for the Corsair Bulldog living room gaming system, but it also works great in any system that's built around a Mini-ITX motherboard.

Unique cooling system design

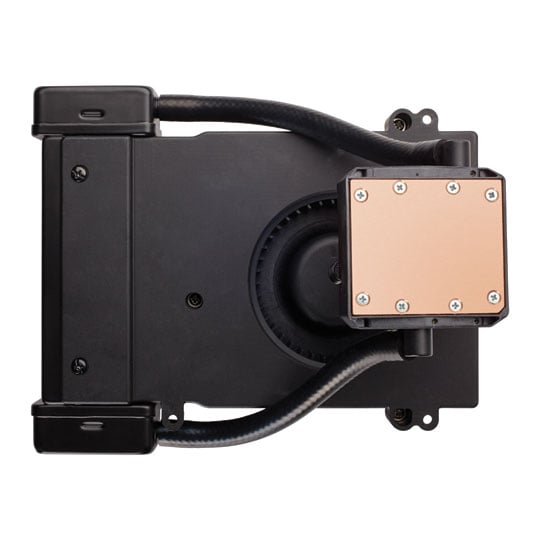

It has a pump assembly with a copper coldplate and flexible, low permeability tubing, just like our larger Hydro Series models. They're matched with a one-piece blower which cools the circulated liquid by drawing cool air from the inside of your PC and exhausting it outside the case. So, in addition to keeping your CPU cool, the H5 SF provides additional cooling for the motherboard and other components by constantly pulling cool air across them.

Premium components for high performance and easier installation
The low permeability tubing helps ensure long life, and the flexible design makes installation easier in tight spaces. The cold plate uses copper for its excellent heat transfer properties, and pre-applied thermal compound saves you time and mess during installation. Features • Low profile liquid CPU Cooling: provides efficient cooling for small form factor cases.
• High-pressure blower fan: powerful and quiet liquid cooling.

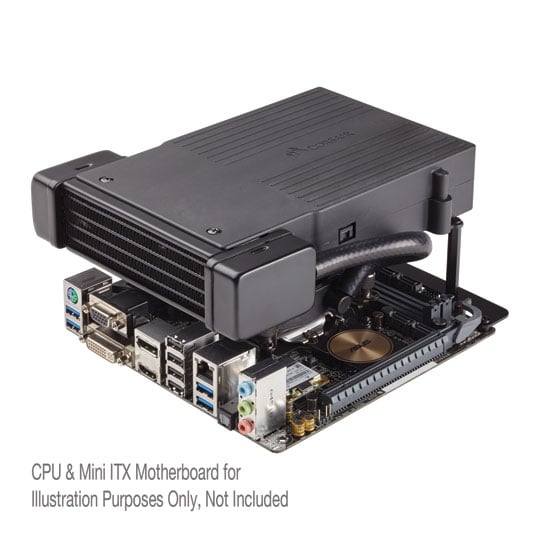

• Ultimate SFF compatibility: mounts to any Mini-ITX motherboard.
• Low permeability tubing: ensures long life, and the flexible design makes installation easier in tight spaces.
• Copper cold plate with pre-applied thermal compound: pre-applied thermal compound saves you time and mess when installing.

Compatible wth:
• Mini ITX Motherboards

Compatible with Corsair Mini ITX Cases such as:
• Corsair Bulldog
• Corsair 250D
• Corsair 380T
• Corsair Air 240

• H5 SF Low-Profile Liquid CPU Cooler

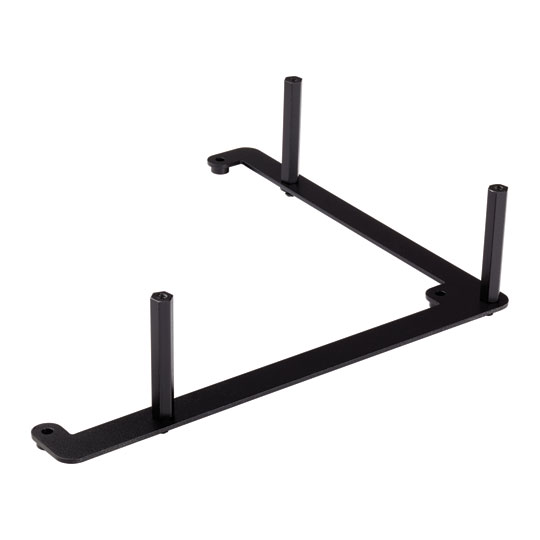

• Cooler Mounting Hardware
• CPU Mounting Hardware
• Detailed installation guide
• Warranty leaflet
Cooler Specifications
Edition Hydro Series H5 SF
Cooler Form Factor Low-Profile All-In-One Hydro Cooler
Heatpipes N/A
Cooler Features
  • Aluminium Fins
  • Copper Base
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • AM2
  • AM3
  • FM1
  • FM2
  • Mini ITX Motherboards
Max. Cooling Capacity
Fan Specifications
Included Fan Configuaration 1 x 120mm
Fan Edition Integrated High-Pressure Blower Fan
PWM Fan Yes
Fan Bearing Type
Fan Colour Black
LED Lighting Colour N/A
Fan Connectors 1 x 3-pin
Approx Fan Speed 1000 - 1800 rpm
Adjustable Fan Speed Controller No
Fan Airflow 12 - 24 CFM
Air Pressure 2.5 - 8.3 mm H2O
Sound Level (dB) 36 - 42 dB
Sound Level (Sone)
Fan Material Plastic
Heatsink Material Aluminium / Copper
Dimensions & Weight
Fan Dimensions 120 x 120 x 32 mm
Heatsink Dimensions
Total Dimensions 167 x 40 x 57 mm (WxHxD)

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
0871 472 4747
Customers also bought
Questions & Answers

I have an existing NOCTUA NH-9i fan on ASUS MAXIMUS VII IMPACT BOARD

Would this Corsair Hydro Series H5 SF all in one liquid CPU cooler, fit the above board, with 2X 8GB Corsair Vengeance Memory Modules fitted to it, in an EVGA HADRON AIR case? If so, would it be a much better proposition than the Noctua NH-9i fan fitted already to it? I was running my rig at 4.2GHZ, OVERCLOCKED Originally, but had to reduce it down to the standard 3.5GHZ, due to the NH-9i fan being low profile & NOT suitable for Overclocking, which defeats the object! I want to return to the Overclocked 4.2GHZ RIG, so would this Corsair Hydro H5 SF be suitable for the performance from the Overclocked Rig?
