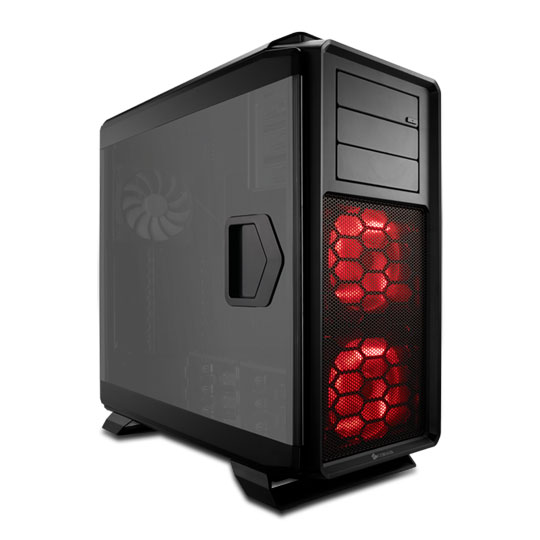

Corsair Graphite 760T V2 Full Tower Case - Black
The Graphite Series 760T full-tower PC case starts with a visually stunning design that’s a match for its stunning performance potential.
The beauty begins on the outside with its sculpted shapes and ingenious, full windowed hinged side panel with flush-mount latches. The front panel has two massive 140mm intake fans bathed in soft LED light, and there’s a dual-speed fan selector for performance or silence. Inside, there’s ample cooling potential, with eight fan mounting locations and room for multiple radiators for self-contained liquid CPU coolers, or even custom liquid cooling. And, clever touches like modular drive cages and laterally mounted SSD bays maximize interior volume to help your high-performance dreams come true. Features Swing-out side panels

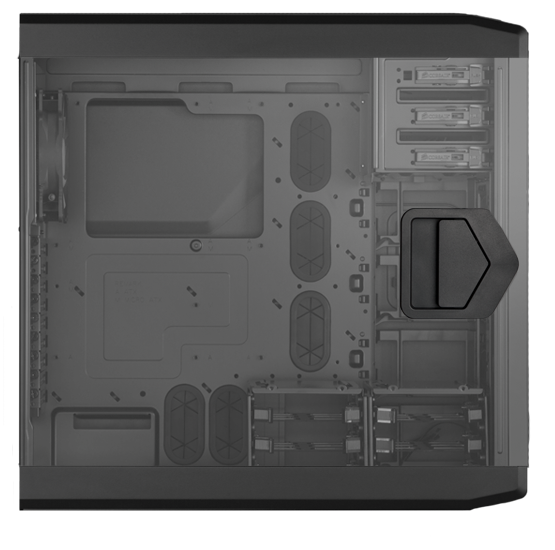

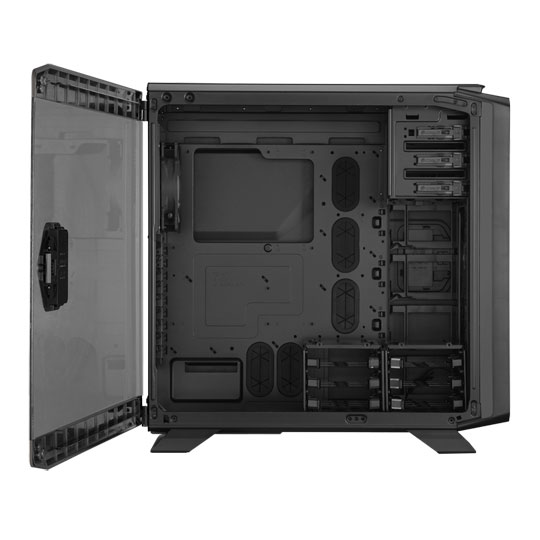

The side panels are hinged, so opening your 760T is as simple as pulling the flush-mounted latch. They can also be removed entirely by simply lifting them off of the hinges.
Ample cooling potential
Like all Corsair cases, the 760T is designed for high-performance system builds, and high-performance systems require sophisticated cooling. There are eight total fan mounts, with room for top, front, bottom and rear-mounted radiators.
A clever drive bay design that maximizes interior volume
The four SSD bays are mounted laterally to make the most efficient use of the interior space. The combo 3.5” / 2.5” drive bays employ a modular bay system, so you can remove the bays you don’t need. The end result is an open interior optimized for extra-long GPUs and free airflow.
Front I/O panel with USB 3.0 and USB 2.0 connectors
You can never have too many devices. The 760T front panel has two high-speed USB 3.0 connectors and two USB 2.0 connectors, plus headphone and microphone connectors for your headset.

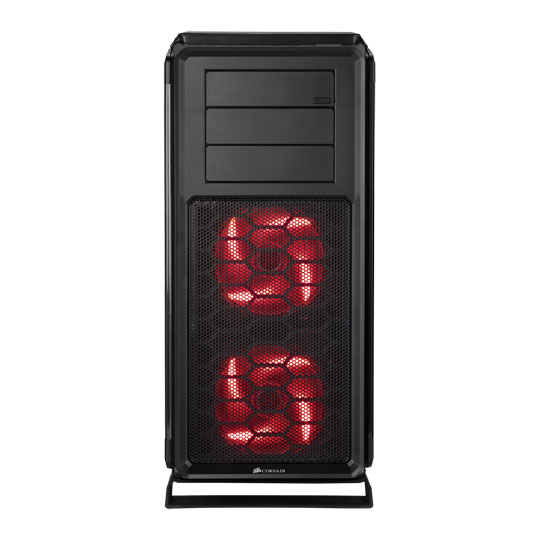

Dual AF140L 140mm LED front intake fans with dual-speed control
The AF140L fans are custom-engineered by Corsair to deliver high-volume airflow with less noise and turbulence. The extra-large diameter allows them to run at a lower RPM, and they’re positioned to deliver cool air directly to your GPUs. A front panel switch allows you to toggle between silent and performance modes.
Radiator Mount Locations
|Case Form Factor||Full Tower|
|Motherboard Form Factor||
|Front/ Side/ Top Panel||
|Fans Included||3 x 140mm|
|Front Radiator Compatibility|
|Top Radiator Compatibility|
|Bottom Radiator Compatibility|
|Rear Radiator Compatibility|
|Side Radiator Compatibility|
|Power Supply Form Factor||ATX|
|Max PSU Length|
|Max CPU Cooler Height||170 mm|
|Max VGA Card Length||450 mm|
|Dimensions||246 x 564 x 568 (WxHxD mm)|
|Weight||11.2 kg (Approx)|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 24 months
- DOA Period:
- 28 days
- RTB Period:
- 24 months
- Corsair / SCAN
- 0871 472 4747
Date Issued: 6th Jul 2011
There's more choice than ever before, but which computer case is right for you and which features should you look out for?
Date Issued: 20th Oct 2008
The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.
Date Issued: 19th Jun 2008
Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.
Ask your questions. Share your answers.
Any water cooling kit that has a radiator size of 240/280/360mm will fit.
It has the capability to run 3 x 120mm coolers or 2 x 140mm coolers on top according to Corsair's website.You'd be looking at most of their AIO watercooling range for this.
