Corsair FRAME 5000D RS Black Modular Mid Tower Tempered Glass PC Gaming Case

Corsair FRAME 5000D RS Mid Tower Chassis, Black, TG Window, 4 x 140mm PWM Fans, USB-C, mITX / mATX / ATX / E-ATX

Scan code: LN158528 Manufacturer code: CC-9011307-WW
£124.99
£5.48 Next day delivery
Order now and get it tomorrow, Mon 21st Jul
Get it Tomorrow, 21 JulIn stock
Pay in 3 interest-free payments of £41.66

Email me when the availability or price changes

  • By DPD On 21st Jul Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

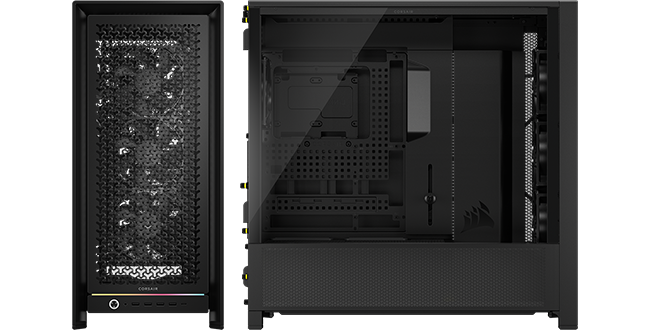

FRAME 5000D RS Modular Mid-Tower PC Case in Black from Corsair

FRAME 5000D RS

We Provide the Frame, You Create the Art Build the high-airflow, low-temperature PC of your dreams in the CORSAIR FRAME 5000D highairflow case, featuring the innovative FRAME Modular Case System offering unprecedented flexibility to perfectly customize your build as you want it. The InfiniRail Mounting System simplifies fan installation, while support for up to a 420mm radiators and a new 3D Y-Pattern Airflow front panel ensure cool air is directed precisely where it’s needed most. The increased width and length ensure compatibility with the most powerful graphics cards and cooling options, with support for reverse connection motherboards future-proofing your system. We provide the frame. You create the art.

A New System Design

Modular Case System

FRAME Modular Case SystemThe revolutionary FRAME system gives new meaning to the word customization. he revolutionary FRAME Modular Case System redefines customization. Some of the choices include upgrading the motherboard tray to billet aluminum, replacing the front I/O panel with different USB ports, and swapping out the front intake panel for a different look. This case evolves with your needs, offering a variety of options for future upgrades and aesthetic changes.

Clean Lines or Turbo Cooled

Internal Side Panel

choose your wayThe internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential.

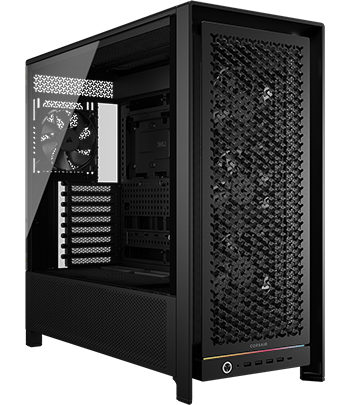

Superior Cooling

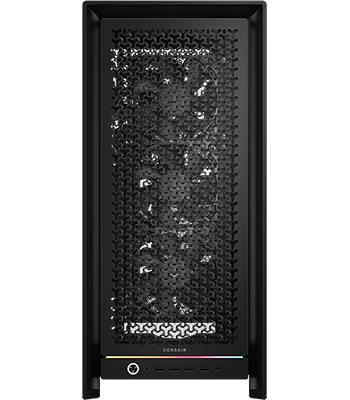

Frame 5000D RS Cooling

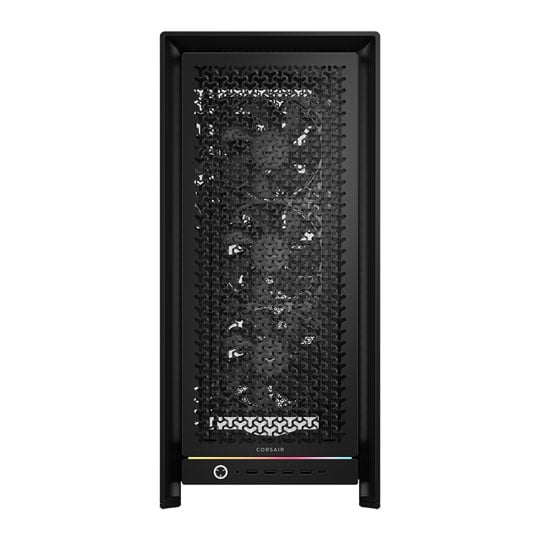

3D Y-Pattern Airflow PanelOptimized for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.

Top 420mm Radiator SupportTake your cooling to the next level with a top-mounted 420mm radiator and room for 360mm radiators on the front or side.

infiniRail™ Fan MountingMount up to 14x 120mm fans simultaneously to keep cool air flowing in and hot air exhausting quickly and efficiently, or easily adjust the InfiniRail™ fan mounts for 140mm or 200mm fan locations. The combinations are nearly endless.

Four RS140 Fans IncludedRS140 PWM fans feature daisy-chainable connections for easy setup. Their magnetic dome bearings minimize friction, delivering a perfect combination of high airflow and quiet operation.

Building is a Breeze

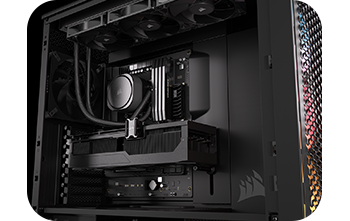

Reverse Connection Motherboards

Supports Reverse Connection MotherboardsASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.

Versatile Connectivity

Frame 5000D RS Ports

a wealth of portsThe FRAME 5000D offers four USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C front I/O panel. The I/O ports have also been relocated to the bottom of the case to make it easy for folks with their PC on their desk to connect devices.

Extensive Storage Space

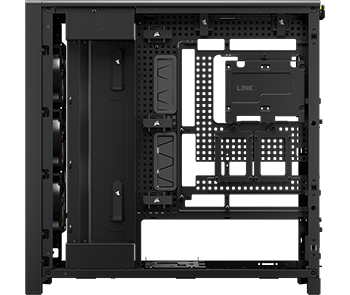

Frame 5000D RS Drive Trays

future-proofed storageIncluded drive trays for dual 3.5” hard drives or four 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cables.

Bigger and Better

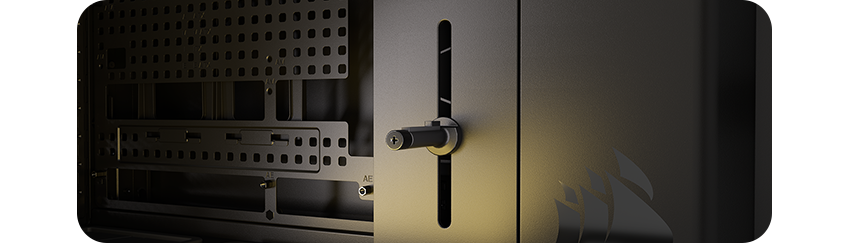

GPU Anti-sag arm

Solid GPU SupportModern graphics cards are bigger and heavier than ever, which is why every 5000D comes with an included GPU Anti-sag stabilization arm. GPUs are getting bigger and hotter, which is why the Frame 5000D was designed slightly longer and wider than most other mid-tower cases.

Touches of Elegance

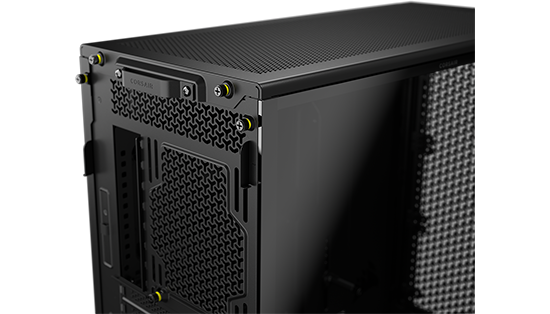

Frame 5000D Captive Screws

in stunning detailThe Frame 5000D includes a number of features displaying CORSAIR's attention to detail. They include external cable management points, captive screws that won’t get lost, fully color-matched rivets, screws, and plastic components, an attractive Frost White option, and built-in rotatable PCI slots for vertical GPU mounting fans.

Customisation is Easier than Ever

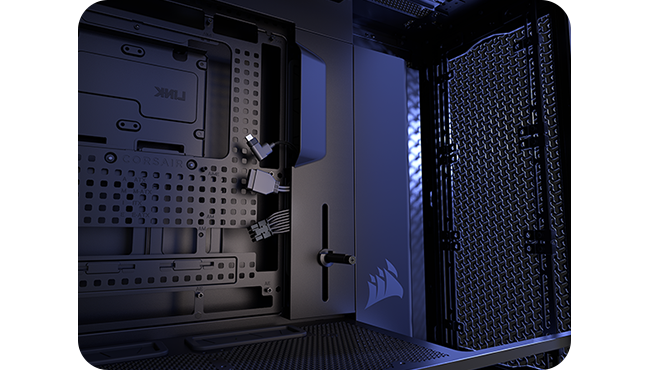

RapidRoute 2.0

RapidRoute 2.0FRAME 5000D features the next generation of CORSAIR's cable-routing hardware, with a pegboard-style motherboard tray that allows for custom mounting points for tie-downs and buckles. It also comes with several types of cable clips, or you can 3D print your own. It includes six cinching straps and two wire loom pairs to secure extra cable lengths for a tidy interior.

PC building Just Got A Lot More Modular

Specifications
Core Chassis Specifications
Case Edition FRAME 5000D RS
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
  • Mini-ITX
Back Connect Compatible Yes
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 1 x Power Button
  • 4 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays
  • 6 x 2.5" Internal
  • 2 x 3.5"
Standard Expansion Slots 8
Vertical Expansion Slots 3
Fans & Filters
Fan Bays
  • 4 x 120mm
  • 3 x 120mm / 140mm / 2x 200mm
  • 7 x 120mm / 7x 140mm
Fans Included 4 x 140mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • Side
Liquid Cooling Support
Front Radiator Compatibility 1 x 240/280/360mm
Top Radiator Compatibility 1 x 240/280/360/420mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120/140mm
Side Radiator Compatibility 1 x 240/280/360mm
Clearances
Max CPU Cooler Height 175 mm
Max GPU Card Length 450 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 250 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials Steel / Tempered Glass
Dimensions 250 x 542 x 556 (WxHxD mm)
Weight 12.7 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN158528
Model Number CC-9011307-WW
GTIN 840440491279
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Corsair / SCAN
Telephone:
0871 472 4747
