Scan code: LN58820 Manufacturer code: CC-9011070-WW

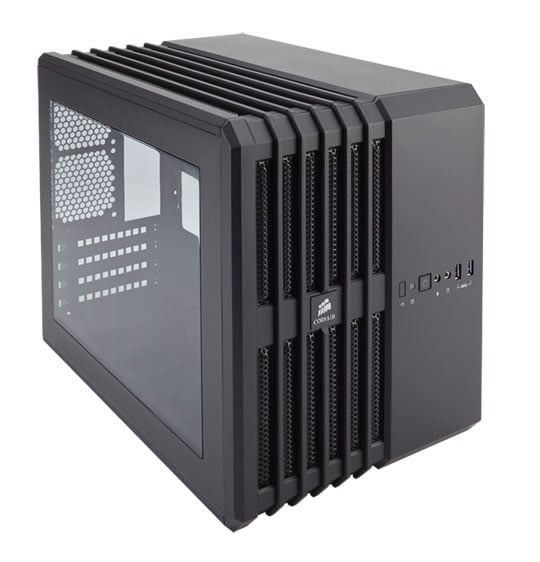

Corsair Carbide Air 240 micro-ATX Cube Case - Black

Corsair Carbide Series Air 240 High Airflow micro-ATX PC Case - Black

Scan code: LN58820 Manufacturer code: CC-9011070-WW
review 3xs Approved
Delivery Options
  • By DPD On 29th May 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

Corsair Carbide Air 240 - MicroATX / Mini-ITX - Gaming PC Case

Corsair Carbide Air 240 MicroATX Case

Carbide Air 240 Micro-ATX / Mini-ITX PC Case

The Corsair Air 240 High Airflow PC case is an extraordinary small form factor PC for Mini-ITX and MidroATX computers. The cube design is complete with a full side windows. The internals are designed for maximum airflow or advanced watercooling configurations. Although it’s the same size as many Mini-ITX cases, the Air 240 supports MicroATX motherboards. This gives you the option of installing dual GPUs. The flexibility goes beyond dual Mini-ITX and MicroATX compatibility. The included rubber feet can be placed on any of three sides, so you can customize the orientation; as a standard tower, an inverted tower, or as a desktop.

This case is also available in:
White - Carbide Air 240 Case

Easy and Compact System Builds

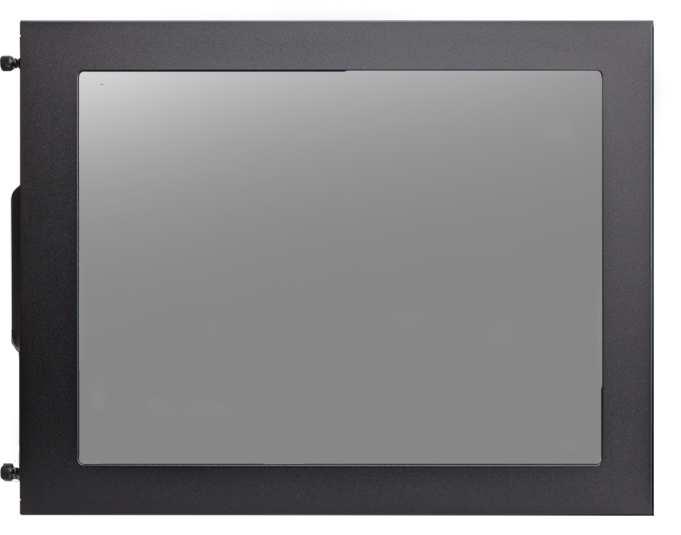

Carbide Air 240 Door Panel

Easy to Build, Hard to Beat

The Air 240 has cable routing holes with grommets and tie-downs, with dedicated cable housing space behind the motherboard tray. It’s easy to move your cables out of the way and out of the airflow path. The panoramic window also allows you to admire your work.

Direct Airflow Path Cooling

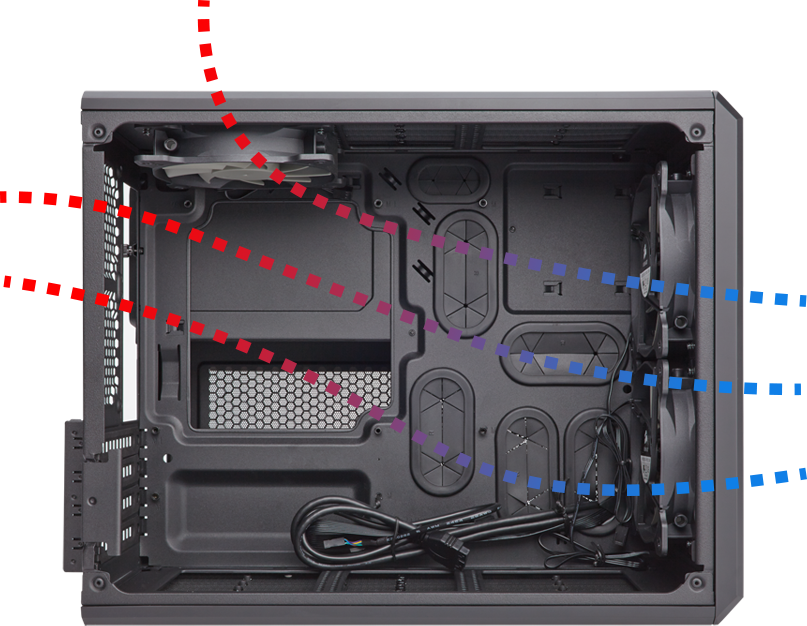

Carbide Air 240 Cooling

Awesome Cooling Potential

The unusual interior design is optimized to allow the intake fans to deliver cool air directly to your components that generate the most heat. The Air 240 has three fans included to help keep your components cool. Three 120mm fans are included 2x front intake fans and 1x 120mm extraction fan.

Liquid Cooling Capable

Corsair Carbide 450D Cooling

Watercool your Graphics Card and Processor

The Air 240 has room at the front and bottom for radiators, allowing you to quiet down your GPU and CPU with liquid coolers, this also allows you to get better overclocks out of your components for better quality gaming.

The length for the radiators that are compatable with the Air 240 case are as follows:
240mm: Front or Bottom

Case Edition Carbide Series Air 240 High Airflow
Case Form Factor MicroATX
Motherboard Form Factor
  • MicroATX
  • Mini-ITX
Material Plastic / Steel
Front/ Side/ Top Panel
  • 1 x Line In
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 3 x 2.5" Internal
  • 3 x 3.5" Internal
Expansion Slots
Fan Bays
  • 7 x 120mm
  • 2 x 80mm
Fans Included 3 x 120mm
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window Yes
Power Supply Form Factor
Max PSU Length
Max CPU Cooler Height
Max VGA Card Length
Colour Black
Dimensions 260 x 320 x 397 (WxHxD mm)

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Corsair / SCAN
0871 472 4747
Customers also bought
Corsair Carbide Series Air 240 High Airflow micro-ATX PC Case - Black is rated 4.7 out of 5 by 11.
Rated 5 out of 5 by from Fantastic case for visuals and build ease This case is definitely one of my favourites, the dual zone allows such easy cable management and makes your build look really tidy. The size of the case is perfect to sit on your desk while not taking up too much space. It is very easy to install fans and take the case apart.
Date published: 2017-04-07
Rated 4 out of 5 by from Nice compact Air240 This case may not be highend compared to some of the other cases coming out these days but for mATX-mITX I would say its still the best. The second compartment makes this case stand out and cable management is perfect, even for beginners. Pros Small/Compact Nice design Hidden section for PSU/HDD/SDD Good airflow Nice side window Can fit up to 6x 120mm fans if you go mITX :) Cons Very easily prone to marks due to the finish Side window can also me easily marked HDD cage gets in the way of CPU power cable, if you want a tidier finish you will have to remove the HDD cage completely GPU height is a problem (best sticking with reference blower cards to be safe or check out the air240 owners club online). Using a mATX motherboard will stop you from using 120mm fans at the bottom Overall I recommend this case given it has a few flaws its still a lovely case to work with if you want to adventure into a smaller form factor, I would recommend a mITX mobo to go with this build.
Date published: 2016-10-14
Rated 5 out of 5 by from Good quality well designed case I was extremely impressed with this case. Attention to detail and build quality was outstanding throughout; from the soft touch paint finish down to the magnetically attached fan grills and externally accessible 2.5" and 3.5" quick release drive bays. Even the logo on the front is magnetically attached so it can be rotated to fit your case orientation preference. The case comes supplied with three good quality Corsair 120mm fans, as well as a selection of fixtures and fittings which include screws, cable ties, rubber feet, etc. Due to the way the case is designed the top, bottom, sides and front are all removable without having to disconnect any wiring. It also has access to the rear of the motherboard which allows for exotic CPU cooler installations. All this combined with the spacious layout gives great accessibility making installation a pleasure. I also like the compartmentalised design which is starting to get more popular these days, with the motherboard + cards in the upper compartment and the PSU + drives in the lower compartment. This allows for a very cosmetically pleasing, almost "wireless" installation visible through the top clear panel. Also it helps improve cooling with great airflow unimpeded by wires. Originally I chose this case as its dimensions suited my on desk placement but after using this layout I don't think I could go back to a regular PC case again.
Date published: 2016-04-08
Rated 4 out of 5 by from Typical Corsair - Good quality, and looks good too. I had a Corsair Obsidian 250D ITX case, but decided to move it into the slightly larger Carbide Air 240. As expected with Corsair, the case is designed like a dream, and looks great, and is easy to place components like my H100i 240mm Radiator and fans. The only bit I felt wasn't great was the plastic panels, since they tend to bend ever-so-slightly, so when the panels are closed and any cables or screws that tighten them, cause the panel to bend ever so slightly. It's only apparent when you examine the lines of the panel gaps - other than that - I really like it.
Date published: 2016-03-30
Rated 5 out of 5 by from Easy to work with This is a really nicely laid out case, Corsair have got a lot of things right which make it so easy to install whatever I've tried so far. If I had to put together another mid-range machine tomorrow I'd choose this case in front of all the others I've used in the past.
Date published: 2016-01-01
Rated 4 out of 5 by from Good case but a couple of niggles. This case would have gotten an excellent rating were it not for just a minor thing. The 'bottom' of the case (left hand side the way I have it set up) does not really have room for normal fans to fit because they would get in the way of the PCI-E slot and all the USB2/3 and audio headers. I can fit slim 12mm fans here but that means ordering them specially from a limited number of suppliers. If the case had been designed a little wider that would have been really good. Otherwise, the design is excellent wiith easy cable routing, access to all components. It is easy to open with an almost completely tool-less design. The only places a screwdriver is needed is for mounting the motherboard, cooling (fans, cpu cooler, etc) and for 2.5" drives on the 3.5" trays. The trays themselves are tool-less if you are fitting the correct sized drive. I would use this case again, unlike my last case which got used for 1 PC and never got upgraded because it was a pain to access (Lian-Li).
Date published: 2015-08-12
Rated 5 out of 5 by from Excellent Top quality fantastic case for small build and with the dual chamber effortless beautiful build. on the down side if you like to use a dvd reader or anything else you will have to buy an external as haven't any cuts for installation but hey there is where the mod pleasure coming to play
Date published: 2015-07-07
Rated 5 out of 5 by from Great little case! Bought this for a LAN party rig... what a brilliant bit of kit! will fit a mATX board with full cpu watercooling. Also fits two full sized GPU's
Date published: 2015-06-26
  • y_2018, m_5, d_23, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_11
  • loc_en_GB, sid_58820, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Maximimum Height of heatsink/cpu cooler?

Struggling to find this information, I have a large Zalman CNPS10x Performa and am unsure if it will fit!
Asked by: Jpizzle
Just measured my case- 115mm from CPU cap to underside of side panel. this should give you about 3mm clearance with the side on. Hope this helps Jpizzle
Answered by: Simpsonite
Date published: 2015-07-17

Would my MSI 970A-G43 PLUS motherboard fit in this please?

Asked by: ExtremeStriker
Hello, This case is only designed for use with a Micro-ATX or Mini-ITX motherboard. It would not be compatibile with an MSI 970A-G43 PLUS. Regards,
Answered by: JackB
Date published: 2017-11-29

VGA height

What's the max VGA card height?
Asked by: Entropy
Hello, The maximum GPU length this case supports would be 290mm. Regards,
Answered by: JackB
Date published: 2017-08-18

If I buy the SF450 PSU, will I need an adapter plate to convert the chassis from ATX?

Asked by: crowley
This case has space for a standard ATX power supply, you do not need an adapter.
Answered by: DanielBull2
Date published: 2016-06-11
