Scan code: LN62104 Manufacturer code: CC-9011075-WW

Corsair Carbide 100R Mid Tower Gaming Case

Corsair Carbide Series 100R Mid-Tower Computer Chassis with Side-Window, USB 3.0, Cable Management w/o PSU

Thumbnail 1 : Corsair Carbide 100R Mid Tower Gaming Case Thumbnail 2 : Corsair Carbide 100R Mid Tower Gaming Case Thumbnail 3 : Corsair Carbide 100R Mid Tower Gaming Case Thumbnail 4 : Corsair Carbide 100R Mid Tower Gaming Case Corsair Carbide 100R Mid Tower Gaming Case : video thumbnail 1
Scan code: LN62104 Manufacturer code: CC-9011075-WW
3xs Approved
Order now and get it tomorrow, Tue 26th Oct
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 26th Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

Corsair Carbide 100R with Window - Mid-Tower Gaming Case

Carbide 100 Series Mid-Tower PC Case

The Carbide 100R is a Mid Tower case from Corsair that adds to the family of 100 Series cases. The case has all the versatility that all serious PC builders crave. The clean and modern exterior design is something that all users can agree with; the tool free access to the interior allows you to access your components for maintenance and cleaning very easily. The ranges of cooling options are all available to the builder.

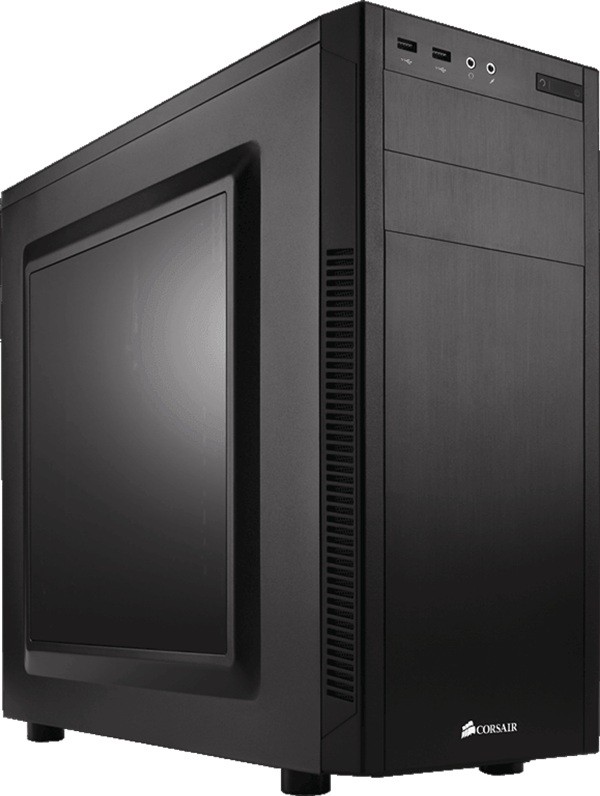

Corsair Carbide 100R Silent PC Case

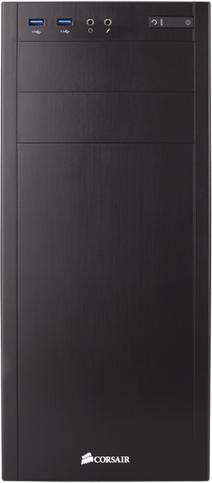

Case Accessibility

Easy to Build, Hard to Beat

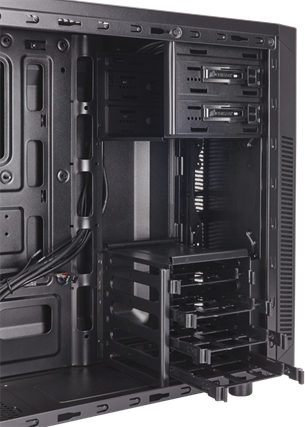

It’s the performance PC platform in stealth mode. With a mesh-free front panel, flush-mounted side panel window and clean lines, the 100R is both professional enough for the office and customizable enough for any home PC build. The simplicity begins with tool-free 3.5” and 5.25” drive installation, and all four hard drive trays provide solid-state drive support so you can mix and match to fit your needs. On the outside, dual USB 3.0 front panel ports give you quick and easy access to the latest high-speed portable hard drives and flash drives.

Direct Airflow Technology

Corsair Case Cooling

Five internal fan mounts let you customize your cooling to match your build. We’ll get you started with one included 120mm fan. The case is designed to draw airflow directly to the GPU to help ensure that you and your graphics card will both keep your cool during intense gaming sessions.

Corsair Fans

One Included Corsair Series Fans

For maximum airflow the 100R comes with one 120mm corsair fan included, this allows for the hot air generated from your PC's components to be directed out of the case.

Liquid Cooling Capable

Watercool Your Graphics Card and Processor

The Carbide 100R has room at for radiators, allowing you to quiet down your GPU and CPU with liquid coolers, this also allows you to get better overclocks out of your components for better quality gaming.

The length for the radiators that are compatable with the 100R case are as follows:
H55, H60, H75, H80i

Core Chassis Specifications
Case Edition Carbide 100R
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 4 x 2.5"/ 3.5" Internal
  • 2 x 5.25" External
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 2 x 120/140mm
  • 3 x 120mm
Fans Included 1 x 120mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Max CPU Cooler Height 150 mm
Max GPU Card Length 414 (Top Slots) / 275 (Lower Slots) mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length 260 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Steel
Dimensions 200 x 471 x 430 (WxHxD mm)
Weight 4.8 kg (Approx)
Please Note
Additional Information
Scan Code LN62104
Model Number CC-9011075-WW
GTIN 843591055710

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Corsair / SCAN
0871 472 4747
Loading Please Wait

Please wait . . .

Corsair Carbide Series 100R Mid-Tower Computer Chassis with Side-Window, USB 3.0, Cable Management w/o PSU is rated 4.7 out of 5 by 6.
Rated 4 out of 5 by from Recommended, but not for my build I Bought this case for a PC upgrade, but sadly the motherboard and the Corsair H100x cooler would not fit, so I had to buy a different case, which was hard to find as I needed slots for internal Bluray drives, which seem to be becoming artificially obsolete. I was able to use left over spare parts from the upgrades to build another PC. But if you want to use a top mounted cooler then this is not the case to use.
Date published: 2020-07-31
Rated 5 out of 5 by from this replaces a full tower case Mid tower case now has the capacity to install 4 drives + m2 on board/ front bays allow card reader & drd drive. room for water cooling with good air flow. space for dust filters / installed sound proofing on on outer case. looks good, window for led light display
Date published: 2020-01-01
Rated 4 out of 5 by from Good entry level PC case Great entry level case. Very light for what it is but sturdy enough. Lots of options regarding HDD, or SSDs, fans etc. If using an aftermarket cooler, check the height of the cooler before purchase. This case is not made to take a 240mm water cooling radiator (without modifications) so if looking at water cooling options, use a 120mm Rad. Finish is great, would recommend this case for anyone on a budget as it has many features found in higher spec cases.
Date published: 2016-12-10
Rated 5 out of 5 by from Great product Nice design and comes with ties to keep your cables neat. The drive rack is very simple to use and well organized.
Date published: 2016-01-08
Rated 5 out of 5 by from Great price Looks pretty good brought this for a family PC build, Far better quality than I thought it would be at this price, but then it's Corsair and always been very impressed by there quality..
Date published: 2015-11-15
Rated 5 out of 5 by from Great case for the price! Best budget Excellent case good cooling sliek design with a window looks a lot more expensive than it is a decent product for someone on a budget couldn't ask for more, for the money.
Date published: 2015-07-14
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_6
  • loc_en_GB, sid_62104, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

What air cooler from Corsair Hydro Series is compatible with this case?

I would like to change the cooling from PC that i bought from you, but i have no idea which of the corsair hydro series would be compatible with the case to fit and cool my processor.
Asked by: Lukas
I am not certain but probably a Corsair H60 or similar. I know the h100x does not fit
Answered by: Roberto42
Date published: 2020-08-01

Does this case come with fans included?

Does this case come with included fans or will i have to buy them Separately?
Asked by: ReactV6
1 x 120mm fan on rear
Answered by: Roberto42
Date published: 2020-08-01
