Scan code: LN73798 Manufacturer code: MCX-B5S1-KWNN-11

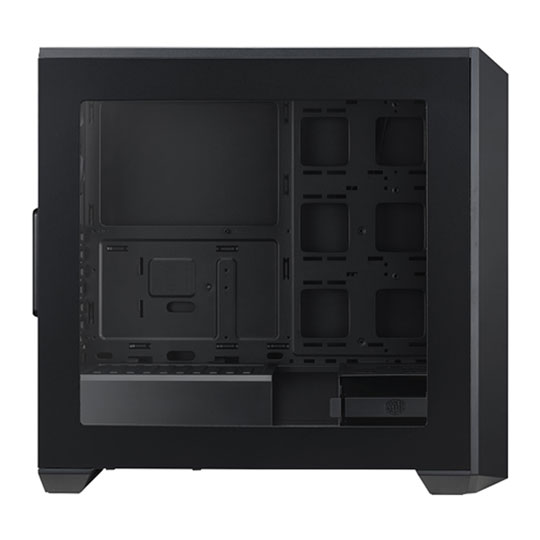

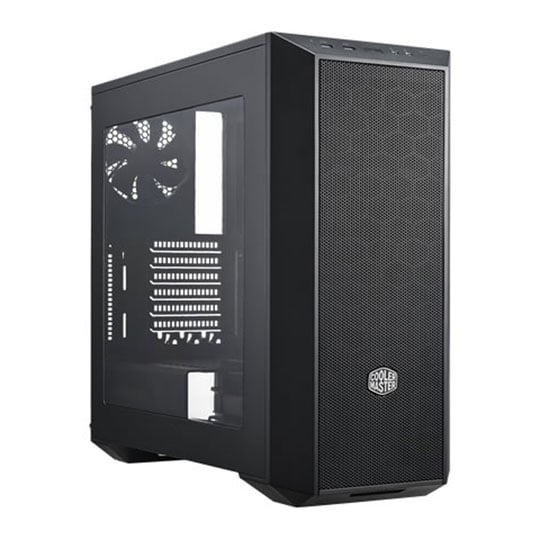

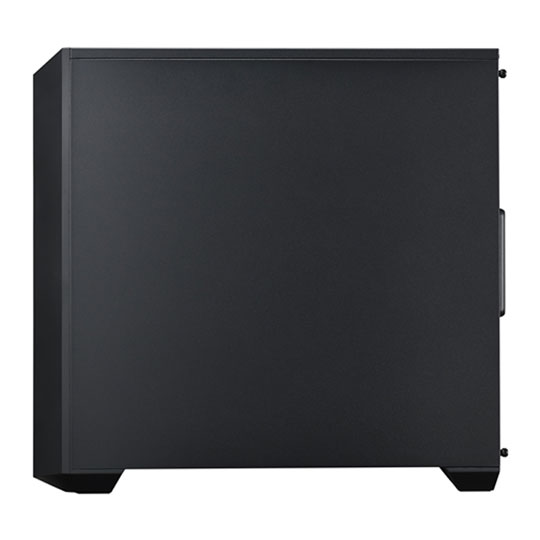

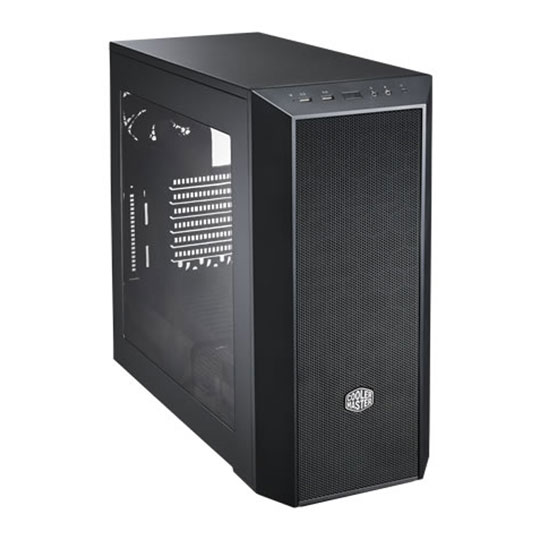

Cooler Master MasterBox 5 Black Edition Mid Tower Case with Window

Cooler Master Masterbox 5 Black Edition, Mid Tower Case, Side Window, Headphone/Mic In/2xUSB 3.0

Thumbnail 1 : Cooler Master MasterBox 5 Black Edition Mid Tower Case with Window Thumbnail 2 : Cooler Master MasterBox 5 Black Edition Mid Tower Case with Window Thumbnail 3 : Cooler Master MasterBox 5 Black Edition Mid Tower Case with Window Thumbnail 4 : Cooler Master MasterBox 5 Black Edition Mid Tower Case with Window
Scan code: LN73798 Manufacturer code: MCX-B5S1-KWNN-11
£58.99Item overdue since 19 September 2018
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview MasterBox 5: You Decide the Inside
Unlock your build’s inner potential with the MasterBox 5: This case’s straightforward design comes with convenientlyplaced cut-outs, making component installation, interior expansion, and multiple interior layouts simple and easy. The MasterBox 5 can also support larger, high-end components, air and DIY water cooling. Keep your system looking clean with the possibility of using numerous routing holes and covers for your PSU.

Exploring the Interior
The MasterBox 5's design and smartly placed tray cut-outs make light work of installing or expanding multiple interior configurations. Remove, slide and rearrange the internal layout to support larger, high-end components, air and DIY water cooling.

Expanding the Possibilities for Motherboards
Motherboard tray cut-outs creatively rearrange space for any size motherboard.

Expanding the Possibilities for Storage
Tray cut-outs also allow for the easy mounting and rearranging of SSDs and HDDs across the motherboard tray, along the bottom shelf, or on the back side of the tray (for SSDs).

Expanding the Possibilities for CPU Coolers
No pushing! There’s enough elbow room inside, even for beastly coolers.

Expanding the Possibilities for Graphics Cards
Titans have a place inside too. Or your next VR-ready GeForce 1080.

Internal Configuration: Your Air Cooling Set-Up:
The uniquely modular design of the MasterBox creates space where there usually isn't. The case supports.
• Three 120mm fans.
• Four fans with use of optional front bracket.

Internal Configuration: Your Liquid Cooling Set Up
The uniquely modular design of the MasterBox creates space to fit the biggest DIY cooling contraptions.*
*360mm radiator installable with optional front bracket

Clean Cabling: For Clean Access
All system setups have hidden space for cable management.

Easy Fun: Easy Computing
Challenge the confines of the MasterBox 5 by creating intuitive and flexible layouts for components and cables, large or small. Then comes the easy part: building.
• Install fans without removing front bezel.
• Expansion cut-out for easy graphic cards installation.
• Easy maintenance with dust filters.
• Six routing holes for any system configuration.
• StormGuard - groundbreaking security system for safeguarding your peripherals. Features • Flexible mounting: easily mount and rearrange SSDs across the motherboard tray, along the bottom shelf or the back.
• Expansion support: motherboard tray cutouts allow enough space to fit high-end motherboards, high end CPU cooler and reservoir mounting for DIY (do it yourself) cooling.
• Clean cabling: all system setups have space for hidden cable management.
• Compact cooling: supports three 120mm fans including two at the front, and one at the back, or a 280mm front radiator for DIY liquid cooling. With an optional extra bracket you can extend it to 360mm liquid cooling and up to three 120mm fan at front
• You Decide the Inside: create a design that follows your personality, and preferences. The case is designed to allow user to install his components with much freedom. Here are few configurations examples: *LED lighting components represented above are optional
Specifications
Core Chassis Specifications
Case Edition Masterbox 5 Black Edition
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 1 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 2 x 120/140mm
  • 1 x 120mm
Fans Included 2 x 120mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility 1 x 240/280mm
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 167 mm
Max GPU Card Length 410 mm
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length 180 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Steel / Plastic Mesh Bezel
Dimensions 220 x 475 x 500mm (WxHxD mm)
Weight
Please Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
Loading Please Wait

Please wait . . .

Reviews
Cooler Master Masterbox 5 Black Edition, Mid Tower Case, Side Window, Headphone/Mic In/2xUSB 3.0 is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Great product for the price! Cheap case that is very sturdy, plenty of space, would have liked extra fan spaces on the top however excellent case otherwise. Perfect Size for the first time builder, bought myself due to cooling issues and has worked perfectly! Bought this in the sale and was a bargain, even at £65, its a good price. Overall build quality 'a solid' 8 outta 10.
