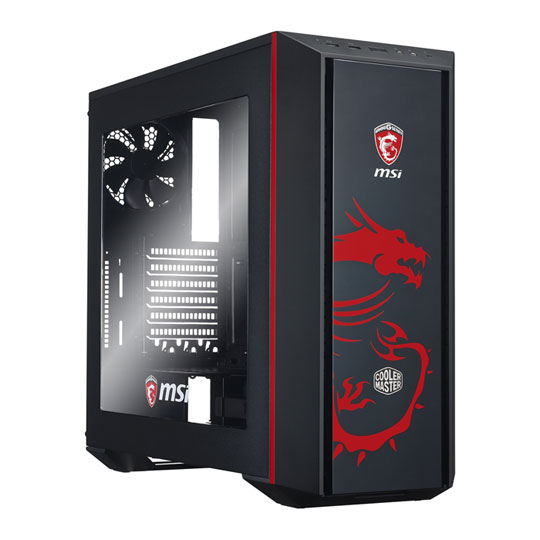

CoolerMaster Red MSI Dragon MasterBox 5 PC Gaming Case

Cooler Master MasterBox 5 MSI Edition, Black/Red, Mid Tower Computer Chassis, with Window, ATX/MicroATX/Mini-ITX, USB3.0

Cooler Master
Scan code: LN80925 Manufacturer code: MCX-B5S2-KWNN-03-MI Request call
Was: £70.99
£64.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £11.50 By DPD On 12th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview The MasterBox5 MSI Edition, is a Cooler Master and MSI co-branded model combining the MasterBox5 case with the MSI dragon designed logo.

This case’s straightforward design comes with conveniently placed cut-outs, making component installation, interior expansion, and multiple interior layouts simple and easy. It can also support large, high-end components, several fans and DIY liquid cooling. Keep your system looking clean with numerous routing holes and a cover for your PSU.

Exploring the Interior
The MasterBox 5's design and smartly placed tray cut-outs make light work of installing or expanding multiple interior configurations. Remove, slide and rearrange the internal layout to support larger, high-end components, air and DIY water cooling.

Expanding the Possibilities for Motherboards
Motherboard tray cut-outs creatively rearrange space for any size motherboard.

Expanding the Possibilities for Storage
Tray cut-outs also allow for the easy mounting and rearranging of SSDs and HDDs across the motherboard tray, along the bottom shelf, or on the back side of the tray (for SSDs).

Expanding the Possibilities for CPU Coolers
No pushing! There’s enough elbow room inside, even for beastly coolers.

Expanding the Possibilities for Graphics Cards
Titans have a place inside too. Or your next VR-ready GeForce 1080.

Internal Configuration: Your Air Cooling Set-Up
The uniquely modular design of the MasterBox creates space where there usually isn’t. The case supports:

• Three 120mm fans.
• Four fans with use of optional front bracket.

Internal Configuration: Your Liquid Cooling Set-Up
The uniquely modular design of the MasterBox creates space to fit the biggest DIY cooling contraptions.* *360mm radiator installable with optional front bracket

Clean Cabling for Clean Access
All system setups have hidden space for cable management.

Easy Fun, Easy Computing
Challenge the confines of the MasterBox 5 by creating intuitive and flexible layouts for components and cables, large or small. Then comes the easy part: building.

• Install fans without removing the front bezel.
• Expansion cut-out for easy graphics card installation.
• Easy maintenance with dust filters.
• Six routing holes for any system configuration.
• StormGuard ground-breaking security system for safeguarding your peripherals. Features • MSI Co-Branded Themed Design: The MSI dragon design on the front and right side panels, plus a smaller version and MSI inscription on the window panel
• Flexible Mounting: Easily mount and rearrange SSDs across the motherboard tray, along the bottom shelf or on the back (for SSD) with the SSD bracket.
• Expansion Support: Motherboard tray cutouts creatively rearrange space to fit high-end motherboards, extra-long dual-slot graphics cards and reservoir mounting for DIY cooling.
• Clean Cabling: All system setups have plenty of space for hidden cable management.
• Compact Cooling: With the included bracket, the case supports up to 3 120mm front fans, one 120mm rear fan, and up to 360mm front radiator for liquid cooling** (360mm radiator requires usage of the included bracket).
• You Decide the Inside: Create a design that follows your personality and preferences. This case is designed to allow users the freedom to install their components however they want.
Specifications
Case Edition MasterBox 5 MSI Edition
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
Material Steel / Plastic
Front/ Side/ Top Panel
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 1 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
Expansion Slots 7
Fan Bays
  • 2 x 120/140mm
  • 1 x 120mm
Fans Included 2 x 120mm
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Window Yes
Power Supply Form Factor ATX
Max PSU Length 180 mm
Max CPU Cooler Height 167 mm
Max VGA Card Length 285 / 410 mm
Colour Black / Red with MSI Logo
Dimensions 220 x 475 x 500 (WxHxD mm)
Weight 7.46 kg (Approx)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Telephone:
0871 472 4747
