Scan code: LN88274 Manufacturer code: MAP-D6PN-218PC-R1

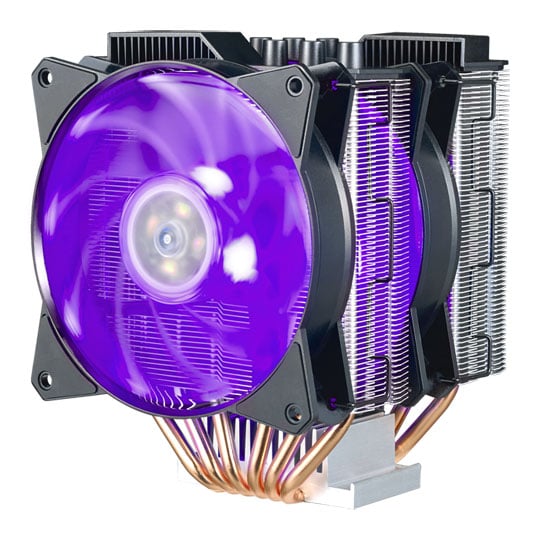

Cooler Master MasterAir MA620P Intel/AMD RGB CPU Cooler

Cooler Master MasterAir MA620P, 2x 120mm RGB Fans, Dual Tower, Aluminium Fins, 6x Copper Heatpipes, CDC 2.0, Intel/AMD

Thumbnail 1 : Cooler Master MasterAir MA620P Intel/AMD RGB CPU Cooler Thumbnail 2 : Cooler Master MasterAir MA620P Intel/AMD RGB CPU Cooler Thumbnail 3 : Cooler Master MasterAir MA620P Intel/AMD RGB CPU Cooler Thumbnail 4 : Cooler Master MasterAir MA620P Intel/AMD RGB CPU Cooler
Scan code: LN88274 Manufacturer code: MAP-D6PN-218PC-R1
£69.98
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Aug 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Dual Tower Heatsinks & Fans
The dual tower heatsink has a combination of 2 sets of heatsink towers with 2 sets of MasterFan MF120R RGB. The uniquely designed heatsink allows bigger and more spread out surface area, while the MF120R RGB fans give added air pressure from the outside and inside the heatsink to generate massive cooling performance.

More Is Better
Add up to 3 fans to accelerate the air pressure and removal of heat with the 'Push and Pull'. One fan is placed at the front to pull cool air in, the second fanis placed inbetween the heatsinks, with the option to add third to maximize the heat pass-through.

2X MasterFan MF120R RGB
The MasterFan MF120R RGB operates quietly even at high speeds. It is designed with a combination of jet engine and helicopter blades for the static air pressure you need without sacrificing airflow.

45% More Contact With CDC 2.0
Continuous Direct Contact Technology 2.0 (CDC 2.0), the contact surface area of heatpipes to the base is increased by 45%. This further enhances the heat transfer mechanism and significantly improves conductance and cooling capability.

More Heatpipes
MasterAir MA620P has 6 x heatpipes for fast transfer of heat, to make sure the CPU is running at optimal performance. Combined with the twin tower and dual fan design, you can even maximum TDP for the extreme overclockers.

RGB LED Illumination
A wired RGB LED controller is included 100M to personalize the RGB lighting anytime you want (no software needed). Switch it up depending on your mood, the possibilities are not limitless.

Quick and Easy Installation
Tool-free mounting kit makes installation a breeze. Universal retention brackets are included. Features • Dual Tower CPU cooler.
• 6 direct contact heatpipes (Continuous Direct Contact Technology 2.0).
• RGB LEDs with Controller.
• 2x 120mm MF120R fans included (supports 3 120mm fans).
• Compatible with ASUS AURA, Gigabyte RGB Fusion, MSI Mystic Light & ASRock RGB.

Compatible CPU Sockets:
Intel: LGA 775 / 1150 / 1151 / 1155 / 1156 / 1366 / 2011 / 2011-v3 / 2066.
AMD: FM1 / FM2 / FM2+ / AM2 / AM2+ / AM3 / AM3+ / AM4.
Specifications
Cooler Specifications
Edition MasterAir MA620P
Cooler Form Factor Dual Tower
Heatpipes 6
Cooler Features
  • Aluminium Fins
  • Continuous Direct Contact Technology 2.0
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 2011
  • 2011-3
  • 2066
  • 775
  • AM2
  • AM2+
  • AM3
  • AM3+
  • AM4
  • FM1
  • FM2
  • FM2+
Max. TDP
Fan Specifications
Included Fan Configuration 2 x 120mm w/ RGB LEDs
Fan Edition MasterFan MF120R RGB
PWM Fan Yes
Fan Bearing Type Rifle Bearing
Fan Colour Black
LED Lighting RGB
Fan/Pump Connectors 2 x 4-pin
Max. Fan Speed 600 ~ 1800 ± 10% rpm
Max. Fan Airflow 53.4 ± 10% CFM
Max. Air Pressure 1.65 ± 10% mm H²O
Max. Sound Level 31 dBA
Materials
Cooler Materials Aluminium / Copper
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 116 x 110.1 x 165 mm (WxHxD)
Total Dimensions
Weight
