Scan code: LN88220 Manufacturer code: MAM-G1CN-924PC-R1

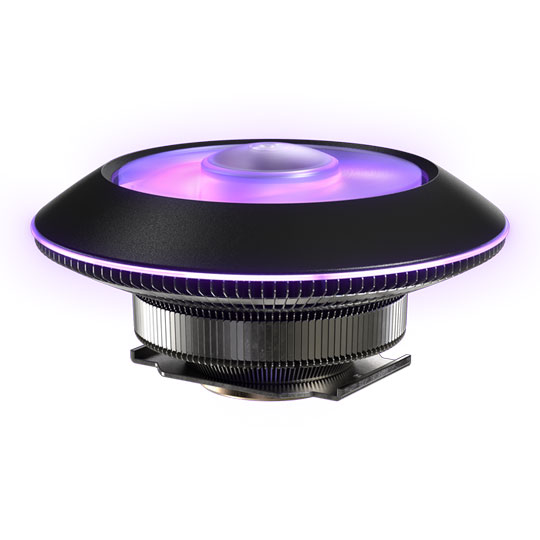

Cooler Master MasterAir G100M Low Profile Intel/AMD RGB CPU Cooler

Cooler Master Master Air G100M, 92mm PWM RGB Fan, Low Profile, Aluminium/Copper, Top Down Air Flow, Intel/AMD

Thumbnail 1 : Cooler Master MasterAir G100M Low Profile Intel/AMD RGB CPU Cooler Thumbnail 2 : Cooler Master MasterAir G100M Low Profile Intel/AMD RGB CPU Cooler Cooler Master MasterAir G100M Low Profile Intel/AMD RGB CPU Cooler : video thumbnail 1
Scan code: LN88220 Manufacturer code: MAM-G1CN-924PC-R1
£37.49
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 27th Sep 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Break-Through In Heat Transfer

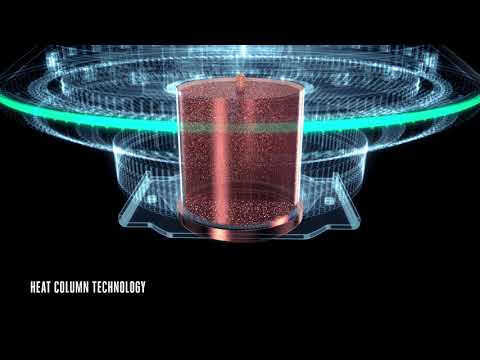

The MasterAir G100M Heat column technology is a two-phase heat transfer involves the liquid-vapour phase change (boiling/evaporation and condensation) of a working fluid. The fluid is transferred by the copper powder filled inside the column creating an anti-gravity heat transfer.

7x Larger Diameter than Heatpipes
Super quick heat transfer is made possible with Heat Column at a massive Ø41.2, the equivalent of 7X the size of traditional heatpipes. The unification of heatpipes and base into one unit captures and efficiently transfers the heat from CPU like never seen before.

Low Profile for Mini-ITX Builds
The low profile G100M stands at 74.5mm, a great fit for slim PC cases, including mini-ITX cases. Even at these small dimensions, the heatsink has cooling capacity of 130W TDP.

RGB Led Illumination (Controller Included)
A wired RGB LED controller is included with the G100M to personalize the RGB lighting anytime you want (no software needed). Switch it up depending on your mood, the possibilities are not limitless.

Top Down Air Flow Performance
A high performance 92mm PWM fan with a range of 600 ~ 2400 RPM, cools not only the CPU, but all surrounding components inside the case for exceptional thermal results.

Quick and Easy Installation
Tool-free mounting kit makes installation a breeze. Universal retention brackets are included, with full compatibility for:
Intel® LGA 2066 / 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 / 775
AMD® AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 Features • Low profile, perfect for Mini-ITX builds.
• RGB LEDs with controller.
• Top down air flow pushing towards the CPU.
• 92mm fan with a range of 600 ~ 2400 RPM.
• Compatible with ASUS AURA, Gigabyte RGB Fusion, MSI Mystic Light & ASRock RGB.
Specifications
Cooler Specifications
Edition G100M
Cooler Form Factor Low-Profile Top Flow Single Tower
Heatpipes N/A
Cooler Features
  • Aluminium Fins
  • Pure Copper Heatsink
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 2011
  • 2011-3
  • 2066
  • 775
  • AM2
  • AM2+
  • AM3
  • AM3+
  • AM4
  • FM1
  • FM2
  • FM2+
Max. TDP
Fan Specifications
Included Fan Configuration 1 x 92mm
Fan Edition
PWM Fan Yes
Fan Bearing Type
Fan Colour Transparent
LED Lighting RGB
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 600~2400 ± 10% rpm
Max. Fan Airflow 22.63 ± 10% CFM
Max. Air Pressure 1.6 ± 10% mm H²O
Max. Sound Level 30 (Max) dBA
Materials
Cooler Materials Aluminium / Copper
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 143 x 51.7 x 143 mm (WxHxD)
Total Dimensions 145 x 74.5 x 145 mm (WxHxD)
Weight
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Telephone:
0871 472 4747
