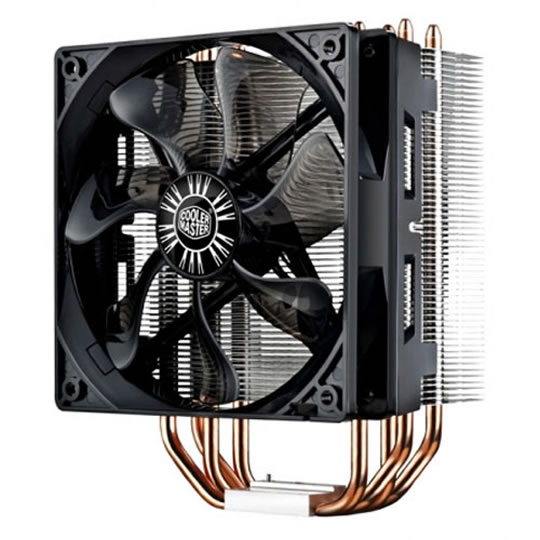

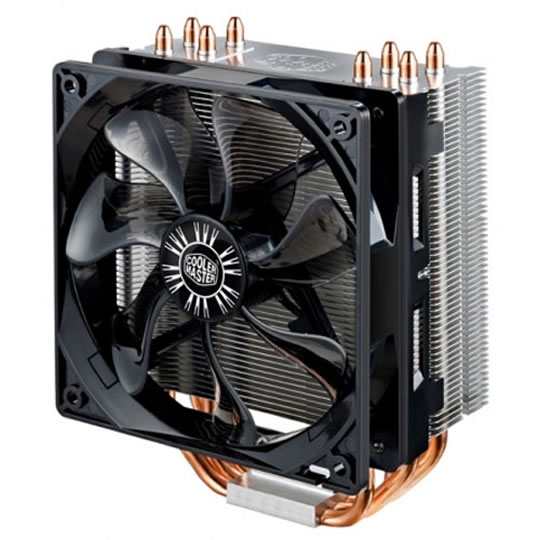

Cooler Master Hyper 212 EVO Cooler

Cooler Master Hyper 212 EVO, 4 Heat Pipes Direct Contact, 120mm Quiet Fan, for Intel/AMD

Cooler Master
Scan code: LN29319 Manufacturer code: RR-212E-16PK-R1 Request call
£29.48
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £5.48 By DPD On 13th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Succeeding the popular Hyper 212 Plus, the NEW Hyper 212 EVO carries on the legacy of providing a great balance of performance and noise level during high and low speed operations.

The Hyper 212 EVO cooling systems are designed and optimized to provide the best user experience and cooling potential for a new generation of processors. The Hyper 212 EVO now features four Cooler Master patented Continuous Direct Contact™ (CDC) heat pipes that are tightly packed into a flat array on the CPU Cooler base. This acts as a virtual vapor chamber that dissipates a large amount of heat. The aluminum fin structure has been optimized to provide the perfect performance balance between high and low speed fan operations.

Features • Well-balanced cooling performance provides fin optimizations with perfect balance between high and low speed operations.

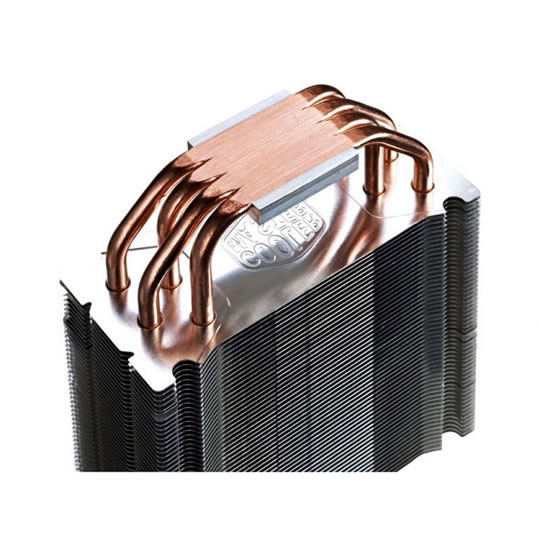

• 4 Direct Contact heat pipes with the patented CDC™ (Continuous Direct Contact) technology - creating a perfect, sleek surface for heat conduction.

• Wide-range PWM fan with unique wave-shaped blade design for excellent airflow.

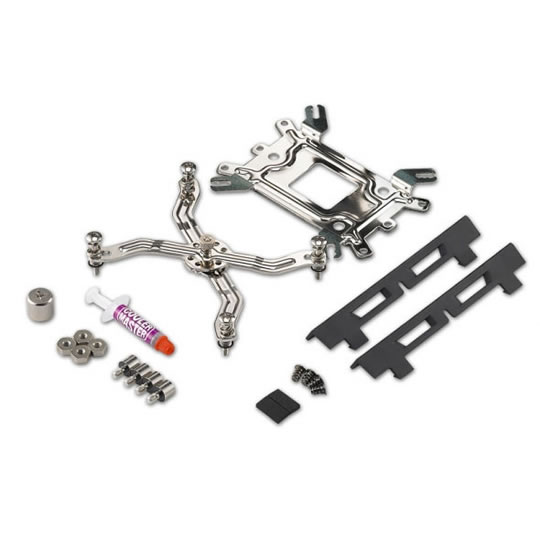

•Versatile all-in-one mounting solution supporting the latest Intel® LGA 1366 / 1156/55/51/50 2011/2011-3 and AMD FM1 / AM3+.
Specifications
Cooler Specifications
Edition
Cooler Form Factor
Heatpipes
Cooler Features
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 2011
  • 2011-3
  • 775
  • AM2
  • AM2+
  • AM3
  • AM3+
  • FM1
Max. Cooling Capacity
Fan Specifications
Included Fan Configuaration
Fan Edition
PWM Fan No
Fan Bearing Type
Fan Colour
LED Lighting Colour
Fan Connectors
Approx Fan Speed 600 - 1600 (PWM) rpm
Adjustable Fan Speed Controller No
Fan Airflow 24.9 - 66.3 CFM
Air Pressure
Sound Level (dB) 9 - 31 dB
Sound Level (Sone)
Materials
Fan Material
Heatsink Material Aluminium/ Copper
Dimensions & Weight
Fan Dimensions 120 x 120 x 25 mm
Heatsink Dimensions 116 x 51 x 159 mm (WxHxD)
Total Dimensions
Weight
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Telephone:
0871 472 4747
TekSpek Guides
Intel Core 2 Duo (Conroe)
Intel Core 2 Duo (Conroe)
Date Issued: 20th Oct 2008

The purpose of this TekSpek is to delineate the publicly known features of Intel’s next generation desktop microarchitecture. Codenamed Conroe and officially titled Intel Core 2 Duo, it’s loosely based on the current mobile Yonah (Core Duo) underpinnings.

Read More

AMD 64 Processors
AMD 64 Processors
Date Issued: 20th Oct 2008

This TekSpek explains what AMD’s AMD64 CPU instruction set architecture (ISA) is, shows what CPUs implement it from both AMD and Intel, and explains what software is available to run on those 64-bit consumer processors.

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Overclocking
Overclocking
Date Issued: 20th Oct 2008

This TekSpek explains why you’d want to overclock your graphics board, the risks in doing so and how you can go about doing it.

Read More

Core 2
Core 2
Date Issued: 14th Jun 2008

There’s been a lot of hype about Intel’s Core 2 recently, even since they launched Core in fact. Words like Conroe, Badaxe and Allendale have been flying around. The bottom line is that Core 2 is the name of Intel’s latest line of CPUs, based on a new micro-architecture, designed for speed and efficiency.

Read More

System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

Reviews
Rated 4.9 out of 5 by 58 reviewers.
Rated 5 out of 5 by Excellent Cooler! Got this cooler in my new cooling down the Intel Core i5-6400 and keeps it under 40 degrees even under load! 05 May 2016
Rated 5 out of 5 by Best Air Cooler On The Market Cooler Master Hyper 212 Evo Is The Best Air Cooler On The Market. I Use This Cooler On My Intel I7 4790K Processor. On The Intel Stock Cooler The Idle Temp Goes To 34 Degrees And On Full Load Temp Goes To 72 Degrees. I Overclock My I7 4790K To 4.5GHZ.The Idle Temp On Cooler Master Hyper 212 Evo Goes To 25 Degrees And On Full Load The Temp Goes To 60 Degrees. When Not Overclock The Full Load Temp Goes To 45 To 50 Degrees. I Recommend This Cooler To Everyone. 30 March 2016
Rated 5 out of 5 by does exactly as intended have a dual i7 board which was previously water-cooled but one leaked. Replaced with 2 of these and not only are the cpu's cooler, the noise levels are far better. I would recommend this fan/heatsink to anyone. 26 February 2016
Rated 5 out of 5 by Amazing This cooler is amazing for the price you pay. It is exceptionally large so make sure your case allows room to install. Heard alot of people saying how difficult it was but one of the easiest coolers I have had the pleasure of installing. 25 February 2016
Rated 5 out of 5 by Excellent Instructions could be a little clearer but after going through it few times everything was clear on how to use this heatsink. Used thermal paste provided and I'm shocked! My [email protected] in stress don't go higher than 40*C. When advance power management is enabled in BIOS and throttling is enabled in Win7 idle temperatures can go as low as 15*C! That's lower than ambient! Everything on "quiet" settings in BIOS' fan controls. Amazing. Would recommend to anyone. I think it's the best up-to-date air-cooler made. 20 February 2016
Rated 5 out of 5 by Excellent!! Bought a good few years ago with my i5 4670k cpu, been going strong ever since. Currently running at 4.5ghz perfectly well. Awesome cooler for the price. 14 February 2016
Rated 5 out of 5 by Better quality than I was expecting This is a well made product. I was surprised considering this is an entry level cooling block. It certainly is quiet. I found the instructions a bit confusing - it was easier to look at what it came with and my motherboard and work it out myself. But installing it was simple. 13 January 2016
Rated 5 out of 5 by This product is exactly as described, lowered my temp by a huge amount. I bought this cooler to replace the stock i7 cooler as the stock fan is quite bad, anyway it was easy enough to fit and assemble with my motherboard using a mixture of the instructions provided and YouTube. I fitted this cooler within half an hour no issues what so ever and it's lowered my Cpu temperature by about 20 Celsius on most things take for example on one game it would stay around 68C on Ultra settings and now stays about 47C, all in all for the money and such it's a great cooler and well recommended, however do remember to check the space in your case for such a piece, mine wasn't so bad as i have a full tower however at first i thought it would be close to my side fans but eventually posed no issue so please do check your specifications and such before buying :) 17 November 2015
  • 2016-05-20 T12:52:21.587-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_58, tr_58
  • loc_en_US, sid_29319, prod, sort_default
2 3 next>>
Questions & Answers
(11 Questions : 40 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


1 year, 7 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about ISLDC is loaded.
Additional information about ISLDC could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Thermal paste is not physically pre applied for you but is included in the box.
1 year, 7 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about ChrisP is loaded.
Additional information about ChrisP could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Answer:
No. You have to apply it yourself.
1 year, 7 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about Defalt4 is loaded.
Additional information about Defalt4 could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Answer:
no not pre applied
small tube in box need to apply yourself
I just applied small amount then stick a bit of sellotape to your finger and spread it very thin very even
1 year, 6 months ago
Customer avatar
by
United Kingdom
Read all my Q&A

Please wait while more information about jeff20 is loaded.
Additional information about jeff20 could not be loaded.
-2points
0out of 2found this answer helpful.
Was this helpful?helpful0unhelpful2

Answer:
no, but cooler master thermal paste comes with the cooler.
1 year, 5 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about claz is loaded.
Additional information about claz could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
No but it does come with a tube of thermal paste
1 year, 5 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about Tomlo is loaded.
Additional information about Tomlo could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
Hi,
It comes with a tube of paste, much more than you will need.

There is a knack to mounting semiconductors to heatsinks, whether it's a CPU or a power transistor in an amplifier.

There is a lot of poor information about this online, unfortunately.

No compound is as good as direct metal-on-metal contact, the purpose of such materials is only to fill in surface imperfections and replace what would be an air space with something which conducts heat a bit better.

With that in mind, it's clear that the smallest amount of compound is best, and a pre-applied phase-change material is always inferior to two clean metal surfaces plus a minimum of compound.

What you actually need is as much of the cooler's aluminium and copper interface to be in direct contact with the chip aluminium heat spreader.

If I had a gripe about the 212 EVO, it would be that the compound is much too viscous.
Age: 45 to 54
Gender: Male
1 year ago
Customer avatar
by
Brighton, The City of Brighton and Hove, UK
Read all my Q&A

Please wait while more information about Wolf359 is loaded.
Additional information about Wolf359 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
The paste is in a little syringe and is not pre applied.
8 months ago
Customer avatar
by
UK
Read all my Q&A

Please wait while more information about dkmech is loaded.
Additional information about dkmech could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
It is not pre-applied, it comes with a syringe of CoolerMaster's own thermal compound.
7 months ago
Customer avatar
by
UK
Read all my Q&A

Please wait while more information about SithAfrikaan is loaded.
Additional information about SithAfrikaan could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
yes .. one application is pre applied
Age: 45 to 54
Gender: Male
4 months, 1 week ago
Customer avatar
by
Moreton, Birkenhead, Wirral, Merseyside CH46, UK
Read all my Q&A

Please wait while more information about brianthesnail is loaded.
Additional information about brianthesnail could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
what make is the thermal paste? make/version ?
1 year, 6 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about TomaShen is loaded.
Additional information about TomaShen could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
small tube of cooler master paste.
1 year, 5 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about claz is loaded.
Additional information about claz could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Answer:
Hi,
I'm not sure what brand it is, but it looks like a metal bearing compound. It's very, too, viscous.

There is no substitute for direct metal to metal contact. The heat conductivity of aluminium (CPU heat spreader) and copper (the flattened and machined heatpipes of the 212) is approaching the maximum.

The compound should be there just to fill in imperfections in the surfaces.

So, if your compound becomes a considerable function of the thermal resistance, silicon to air, you have too much of it.

Which means either the surfaces aren't flat enough, or too much compound was applied, and it's stopping metal-on-metal contact.

Saying that, I guess for a few quid you can buy a tube of something fancy, or use a traditional alumina compound, one which has a lower viscosity, so you could get the two surfaces closer together.

Technique is as important as the compound though,
Age: 45 to 54
Gender: Male
1 year ago
Customer avatar
by
Brighton, The City of Brighton and Hove, UK
Read all my Q&A

Please wait while more information about Wolf359 is loaded.
Additional information about Wolf359 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
CoolerMaster's own thermal paste, went on perfectly first time for myself, remember less is more.
7 months ago
Customer avatar
by
UK
Read all my Q&A

Please wait while more information about SithAfrikaan is loaded.
Additional information about SithAfrikaan could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
yes it is ... you get one application
Age: 45 to 54
Gender: Male
4 months, 1 week ago
Customer avatar
by
Moreton, Birkenhead, Wirral, Merseyside CH46, UK
Read all my Q&A

Please wait while more information about brianthesnail is loaded.
Additional information about brianthesnail could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
It comes with Cooler Master thermal cooling paste.
4 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about FoxyXV is loaded.
Additional information about FoxyXV could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
yeah answer too late but thanks ! :D i laready have it for about 2 weeks now
thermal paste is very small tube like maybe 5 squezes out of it (but im not using it- got a better one)

there is another brackets for 2nd fan
extra rubber pads for silent fan setup

it has all the items needed really ! PERFECT
1 year, 5 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about TomaShen is loaded.
Additional information about TomaShen could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Has staff answer

5 answers

Does this fit Intel Socket 2011?

The website page lists 2011 as compatible, but the description here doesn't.
2 years, 3 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about thethirdman is loaded.
Additional information about thethirdman could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
On checking the Cooler Master site here:

http://www.coolermaster.co.uk/product.php?product_id=6755

It doesnt mention 2011 socket compatibility therefore I would say that this cooler isnt compatible with the Intel 2011 socket.
2 years, 2 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about CarlH is loaded.
Additional information about CarlH could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
does not matter about socket that is the processor to motherboard
this fits on top of processor then adjustable brackets goes either side of mother board and clamps in place
1 year, 6 months ago
Customer avatar
by
United Kingdom
Read all my Q&A

Please wait while more information about jeff20 is loaded.
Additional information about jeff20 could not be loaded.
-1point
0out of 1found this answer helpful.
Was this helpful?helpful0unhelpful1

Answer:
yes it does, everything supplied for LGA 211 socket.
1 year, 5 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about claz is loaded.
Additional information about claz could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Answer:
2011 yes with the included 4 screw in posts....2011-v3 no as I have just found out at my own expense.
Age: 35 to 44
Gender: Male
7 months ago
Customer avatar
by
Suffolk, UK
Read all my Q&A

Please wait while more information about d1974 is loaded.
Additional information about d1974 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
yes it does ... and socket 2011-3
Age: 45 to 54
Gender: Male
4 months, 1 week ago
Customer avatar
by
Moreton, Birkenhead, Wirral, Merseyside CH46, UK
Read all my Q&A

Please wait while more information about brianthesnail is loaded.
Additional information about brianthesnail could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Has staff answer

4 answers

Is this compatible with a FM2+ Socket?

I'm getting a MSI A88XM-E45, AMD A88X, FM2+, DDR3, SATA III - 6Gb/s, PCIe 3.0 (x16), D-Sub/DVI/HDMI, MATX Motherboard and I'm wondering is this going to fit a FM2+ socket?
Age: 17 or under
Gender: Male
2 years ago
Customer avatar
by
Waterford, Ireland
Read all my Q&A

Please wait while more information about Allen is loaded.
Additional information about Allen could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
This cooler will fit the FM2+ socket as well
1 year, 11 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about CarlH is loaded.
Additional information about CarlH could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
Hi,
I have a MSI A88XM Gaming. It fits nicely, much better than the T4.

It's quite big, though, so you have to watch that.
Age: 45 to 54
Gender: Male
1 year ago
Customer avatar
by
Brighton, The City of Brighton and Hove, UK
Read all my Q&A

Please wait while more information about Wolf359 is loaded.
Additional information about Wolf359 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
No problem fitting it with FM2+ socket. I would rather think if it fits the case
Age: 18 to 24
Gender: Male
1 year, 8 months ago
Customer avatar
by
Bristol
Read all my Q&A

Please wait while more information about Patryk1996 is loaded.
Additional information about Patryk1996 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
sorry this isnt .. its only compatible with the older socket FM1 ...
Age: 45 to 54
Gender: Male
4 months, 1 week ago
Customer avatar
by
Moreton, Birkenhead, Wirral, Merseyside CH46, UK
Read all my Q&A

Please wait while more information about brianthesnail is loaded.
Additional information about brianthesnail could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Will this item work with my computer?
Age: 35 to 44
Gender: Male
2 years, 7 months ago
Customer avatar
by
Leyland, Lancashire, UK
Read all my Q&A

Please wait while more information about pmkdarts is loaded.
Additional information about pmkdarts could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
On checking the unit you have is quite a slim line unit and therefore this cooler is unlikely to fit due to the height of it.

The cooler normally used in the system you have is Everflow Fan Model F129025SU therefore as a replacement you might be best looking for low profile coolers to ensure compatibility.
2 years, 7 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about CarlH is loaded.
Additional information about CarlH could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
In short, I don't think it will I'm afraid. Whilst your motherboard/cpu combo may support the Hyper212EVO cooler, the deciding factor will be the size/width of your case. The X3200 case looks to be of a slimmer profile than other mid-tower cases, and the Hyper212EVO is BIG and protrudes out from the motherboard a lot. To find out for sure, measure your case - The Hyper212EVO is around 6.5 inches tall so needs a case approx 8 inches wide. Also take the position of RAM slots/modules in to consideration as well due to the real-estate occupied by the Hyper212EVO overall. If you need more info on sizes etc, Google is your friend. :) (other search engines are available!)
Age: 25 to 34
Gender: Male
2 years, 6 months ago
Customer avatar
by
Scotland, UK
Read all my Q&A

Please wait while more information about faultyBasil is loaded.
Additional information about faultyBasil could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
no you cant... the acer aspire is a small form factor pc and also uses a oem cooling system with a unique mounting system ..... check with acer for compatible cooler upgrades
Age: 45 to 54
Gender: Male
4 months, 1 week ago
Customer avatar
by
Moreton, Birkenhead, Wirral, Merseyside CH46, UK
Read all my Q&A

Please wait while more information about brianthesnail is loaded.
Additional information about brianthesnail could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
  • 2016-05-20 T12:53:12.531-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_29319, prod, sort_default
2 next>>
  • 2016-05-20 T12:53:12.537-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_29319, prod, sort_default
2 next>>
Cooler Master Hyper 212 EVO Cooler
Cooler Master Hyper 212 EVO Cooler
