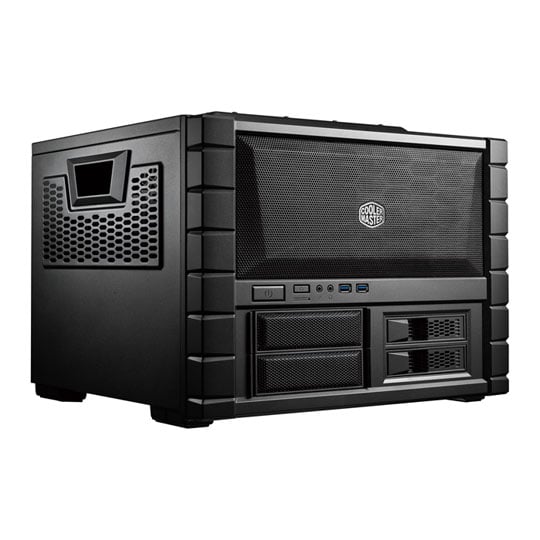

CoolerMaster Black HAF XB Evo Cube PC LAN Gaming Case

Cooler Master HAF XB EVO, Black, ATX Cube Computer Chassis, ATX/MicroATX/Mini-ITX, 2x 120mm Fans, Rigid Handles, USB 3.0

Thumbnail 1 : CoolerMaster Black HAF XB Evo Cube PC LAN Gaming Case Thumbnail 2 : CoolerMaster Black HAF XB Evo Cube PC LAN Gaming Case Thumbnail 3 : CoolerMaster Black HAF XB Evo Cube PC LAN Gaming Case Thumbnail 4 : CoolerMaster Black HAF XB Evo Cube PC LAN Gaming Case
Scan code: LN77830 Manufacturer code: RC-902XB-KKN2
End Of Life
Free Delivery
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The Cooler Master HAF XB EVO takes the famous High Air Flow series to a revolutionary new form factor with extreme cooling performance. The removable horizontal motherboard tray and large mesh top and front panels with two 120mm XtraFlo front fans create a powerful front to back airflow. There is plenty of space for even the tallest high performance tower heatsinks, thick liquid cooling radiators and up to 3 of the high-end graphics cards.

• Quickly and easily transforms into a test bench – ideal for enthusiasts and overclockers.
• Two durable XtraFlo fans included in the front for powerful airflow; also supports 240mm radiators.
• Supports tower CPU coolers up to 180mm tall and high-end graphics cards up to 334mm long.
• Supports up to 4 HDDs or SSDs through removable cages.
• Motherboard tray can be removed for easier installation or removal of components.
• Dual USB 3.0 SuperSpeed ports and X-Dock bays in the front for lightning fast plug-n-play I/O.
• Rigid carry handles for transportation.

• VGA Card Length: 334mm / 13.1inch
• CPU Cooler Height: 180mm / 7.1inch
• Two durable XtraFlo fans included in the front (also supports a 240mm radiator) for powerful airflow.
• Motherboard tray can be removed to install, remove or swap components. Features Model RC-902XB-KKN2 (mesh version), RC-902XB-KWN2 (windowed version)
Materials Steel, polymer, mesh front bezel
Dimensions (W x H x D) 442 x 330 x 423mm / 17.4 x 13 x 16.7 inch
Net Weight 8.2 kg / 18.1 lbs
M/B Type Mini-ITX, microATX, ATX
5.25" Drive Bays 2
3.5" Drive Bays 4
2.5" Drive Bays 4 (from 3.5" drive bays)
I/O Panel USB 3.0 x 2 (internal)
Audio In & Out x 1 (supports HD Audio)
Expansion Slots 7
Air Cooling System Top: 200mm fan x 1 (optional) - for mesh version (RC-902XB-KKN2) only
Front: 120mm XtraFlo fan x 2 (installed; 1200 RPM, 17 dBA), or 140mm fan x 2 (optional)
Rear: 120mm fan x 1 or 80mm fan x 2 (optional)
Liquid Cooling System Front: 240mm radiator x 1 (optional) (Compatible with the Nepton 280L)
Rear: 120mm radiator x 1 (optional)
Power Supply Type Standard ATX PS2 (The max. length of PSU: 180mm / 7.1 inch)
Maximum Compatibility VGA card length: 334mm / 13.1inch
CPU cooler height: 180mm / 7.1inch
