Club3D CSV-1593 USB 3.2 Gen 1 Type-C 8-in-1 Hub

Club3D CSV-1593 8-in-1 USB Type-C Interface Hub, 2x HDMI, 2x USB Type-A, 1x SD, 1x MicroSD Card Slot, 1x RJ45, 1x Type-C

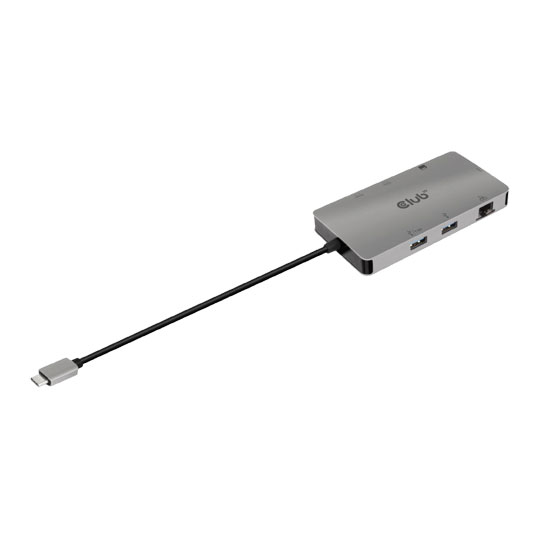

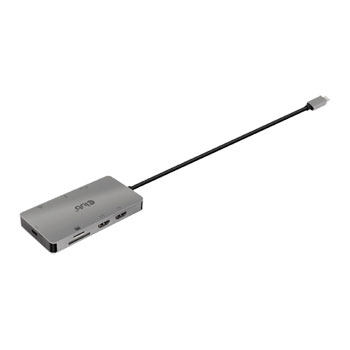

Thumbnail 1 : Club3D CSV-1593 USB 3.2 Gen 1 Type-C 8-in-1 Hub Thumbnail 2 : Club3D CSV-1593 USB 3.2 Gen 1 Type-C 8-in-1 Hub
Scan code: LN119676 Manufacturer code: CSV-1593
£57.98
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

8-In-1 Hub

The Club 3D CSV-1593 is a USB 3.2 Gen 1 Type-C 8-in-1 hub with 2 HDMI™, 2 USB-A, RJ45, SD/Micro SD card slots and Type-C female port, providing an ideal solution for extending your USB 3.2 Gen1 Type-C or Thunderbolt™3 host port (PC/Laptop/Mobile phone etc.), especially for those host with a single Type-C port.

This hub adopts the latest DP 1.4 Alt mode support, enabling to output HDMI™ video with max 4k60Hz or dual max 4K30Hz under MST mode and simultaneously transfer USB 3.2 Gen 1 data with up to 5Gbps.

2x USB Type-A ports allow you to connect 2 USB devices simultaneously.
The SD/Micro SD ports allow to insert 2 card into the slots simultaneously for data transmission or for reading/writing information on the host.
The RJ45 port allows the host to get access to Gigabit Ethernet.

Besides, the USB 3.2 Gen1 Type-C female supports PD 3.0 with up to 100W PD Charging. It can work on all USB 3.2 Gen 1 Type-C and Thunderbolt™3 hosts that supports DP Alt mode(including DP 1.2 and DP 1.4 Alt mode). When working on Thunderbolt™3 host, this product transmits DP signal.

Features

Upstream:
• USB 3.2 Gen 1 Type-C Male(Connect to host).
• Support DP 1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps.
• Support DSC.
Note: To get max bandwidth, the host should support DP1.4 Alt mode with DSC format.

Downstream:
• HDMI™x2.
• Support HDMI™ max 4K/60Hz, 4:4:4, 8bit with 18Gbps Bandwidth.
• Support Dual max 4K/30Hz under MST mode (Windows™ System).
• Support Dual max 4K/60Hz under SST mode (Mac™ System ONLY).
• Support 8/10/12 bit color depth output.
• Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2/YCbCr420.
• Support HDCP 2.2 & HDCP1.4.

Note: When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI™ is 4k/60Hz (dual 4K/30Hz); When connecting a DP1.2 Alt mode supported host, the max resolution of HDMI™ is 4k/30Hz (dual 1080P/60Hz) due to bandwidth limitation.

• USB 3.2 Gen1 Type-A - 1x USB3.2 Type-A port supports BC 1.2 with max 7.5W(5V/1.5A) downstream charging, 1x USB Type-A share max 8W (5V/1.6A) downstream charging.
- Max 5Gbps bandwidth per USB-A port
• SD/Micro SD - Support Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s).
• RJ45 (Gigabit Ethernet) - Support 10M/100M/1000M.
• USB 3.2 Gen1 Type-C Female (for PD Charging) - Supports PD Charging 100W (20V/5A).
• Support for Fast Role Swap of PD 3.0 - 15W is dedicated to the functioning of this product, the rest power (max 85W) will be passed to charge for the host.

Specifications
Interface
Connectivity
  • 2 x HDMI
  • 1 x Micro SD Slot
  • 1 x RJ45
  • 1 x SD Slot
  • 2 x USB 3.2 Gen1
  • 1 x USB 3.2 Gen1 Type-C
Additional Information
Scan Code LN119676
Model Number CSV-1593
GTIN 0841615102051
