Tuneable Dual UHF Beltpack Microphone System
Citronic - RU210H
171.971UK

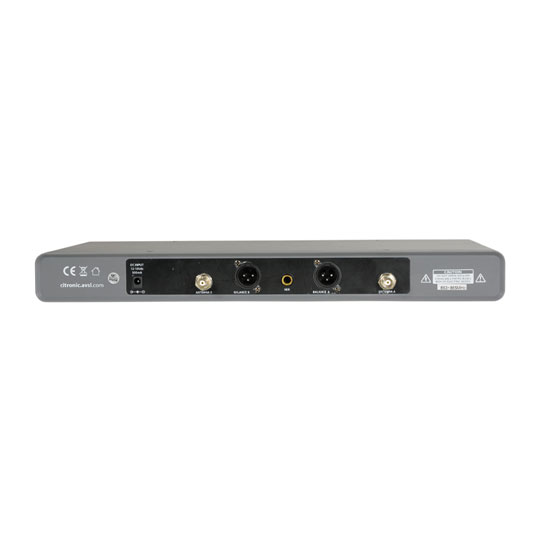

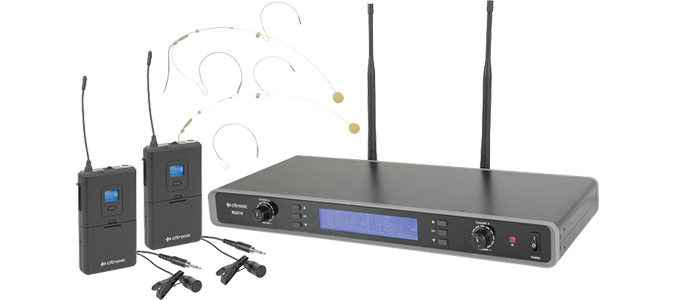

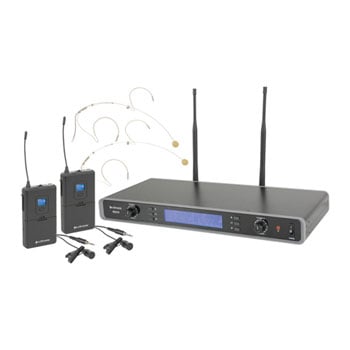

Tuneable Dual UHF Beltpack Microphone SystemThe Citronic RU210H dual channel PLL tuneable UHF wireless system features 2 beltpack transmitters and a choice of neckband microphones or lavalier microphones. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronised to the transmitter via infra-red at the touch of a button. Up to 2 RU210 systems can be operated together on the EU licence-free band.
<0.5%THD @ 1KHz
50Hz - 18KHzFrequency Response
60mRange
at a glance
• PLL tunable with 81 UHF frequencies
• Licence free operation in UK & EU
• Pilot tone & mute circuit for stable signal
• Rack-mounting accessories included
• Supplied with mains adaptor and 4 x AA batteries
What's Included?
• Dual channel receiver

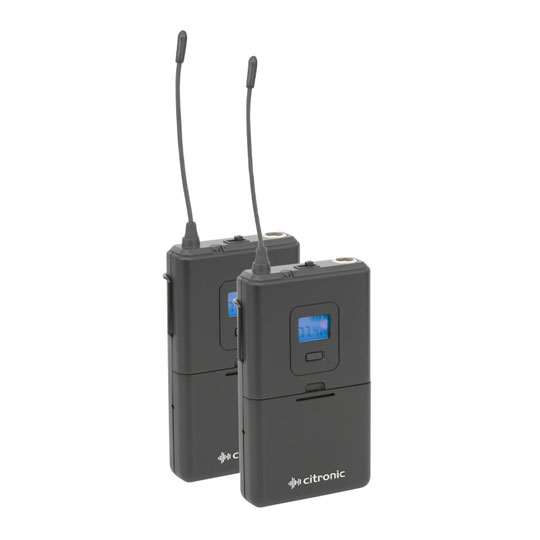

• 2 x beltpack transmitters
• 2 x neckband microphones
• 2 x lavalier microphones
• 4 x AA batteries
• 2 x UHF antennas
• 2 x antenna leads
• 2 x rack-mounting ears
• Mains power adaptor
• 6.3mm jack to jack lead
The Tech Spec
| Features | Specification | Power supply | 12-18Vdc, 500mA (mains adaptor included) |
|---|---|
| Carrier frequencies | 863 - 865MHz (81 selectable frequencies) |
| Range | 60m |
| Batteries | 4 x AA (2 per transmitter - included) |
| Signal to noise ratio | >105dB |
| THD | <0.5% @ 1KHz |
| Frequency Response | 50Hz-18KHz ±1 dB |
| Image rejection | >85dB |
| Output impedance | 2.2k Ohms |
| Output level | 400mV (balanced), 200mV (unbalanced) |
| Receiver Dimensions | 44 x 409 x 190mm |
| Receiver Weight | 1.37kg |
| Transmitter Dimensions | 110 x 67 x 24mm (ex antenna) |
| Transmitter Weight | 75g (no battery) |
