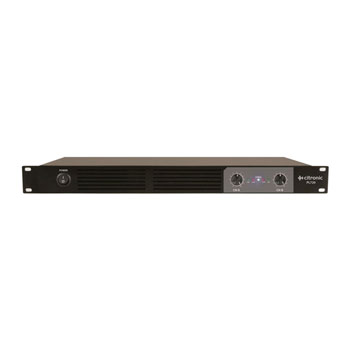

Citronic PL720 1U Digital Amplifier
Scan code: LN138083
Manufacturer code: 172.111UK
Call for price
1U Digital Amplifier
Citronic - PL720

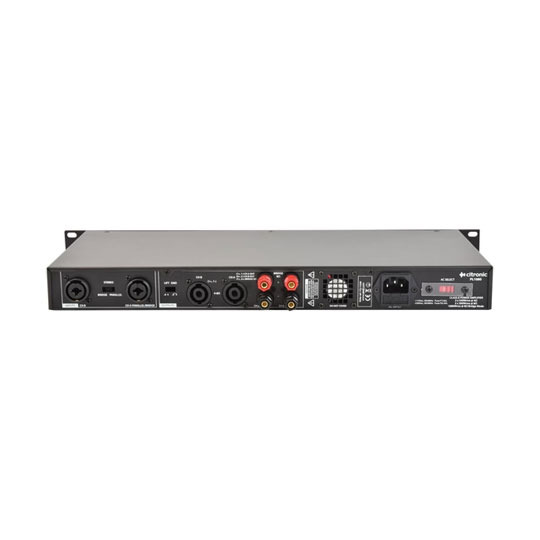

Class D Amp 1U 2 x 360W Digital AmplifierSuper compact and lightweight stereo power amplifiers in a 1U rack-mountable housing. The fully digital architecture provides high power output and efficiency with inbuilt protection circuitry. Signal inputs are balanced combo jack/XLR connectors and speaker outputs are provided as locking SPK or 4mm binding posts. Easy portability makes these amplifiers well-suited for mobile sound systems without compromising the quality of the audio output.
at a glance
• Compact and lightweight
• Cutting edge class D architecture
• Fan cooling and internal protection circuitry
The Tech Spec
| Features | Specification | Power supply | 115/230Vac, 50/60Hz (IEC) |
|---|---|
| Input connections | Combo jack/XLR balanced (L+R) |
| Output connections | SPK (L+R) + 4mm binding posts (L+R) |
| Frequency response | 20Hz - 20kHz (±0.5dB) |
| THD +N | <0.05% |
| Damping factor | 300 |
| S/N ratio (A weighted) | line 100dB |
| Slew rate | 20V/us |
| Input impedance | 10k Ohms unbalanced, 20k Ohms balanced |
| Output circuit architecture | Class D |
| Protection | Temperature, short circuit, DC, overload |
| Indicators | Power, signal, clip |
| Controls | L+R level, power on/off, bridge/parallel/stereo, ground lift |
| Fuse | T5AL (230V) / T10AL (115V) |
| Output power (4 Ohms) | 2 x 360Wrms |
| Output power (8 Ohms) | 2 x 200Wrms |
| Output power (bridged @ 8 Ohms) | 720Wrms |
