Chauvet 4BAR Hex ILS Complete Wash Lighting Solution
Chauvet - 4BAR Hex ILS Complete Wash Lighting Solution Fitted with High-Intensity, Hex-Colour (RGBAW+UV) LEDs
Email me when the availability or price changes
-
Pay in
3
interest-free payments of
£149.67
- With a 10% deposit from just £11.93 / month (APR 19.9%)
Complete Wash Lighting Solution
Chauvet - 4BAR Hex ILS
Generate a broad spectrum of colours and

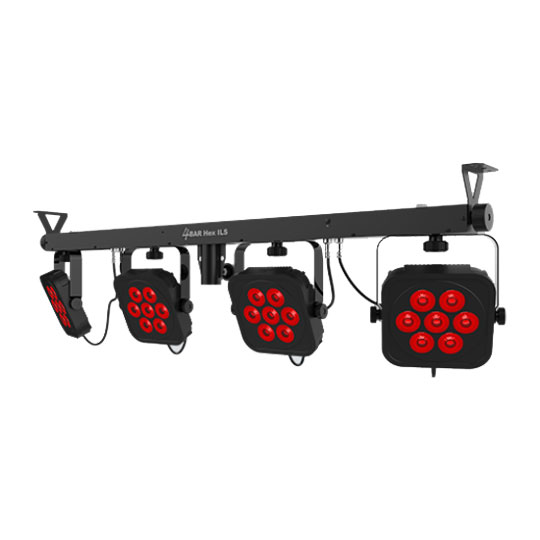

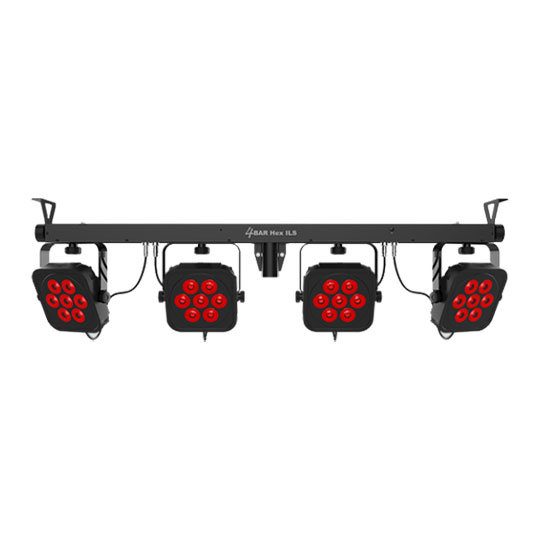

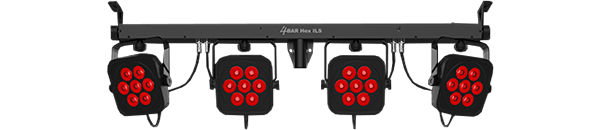

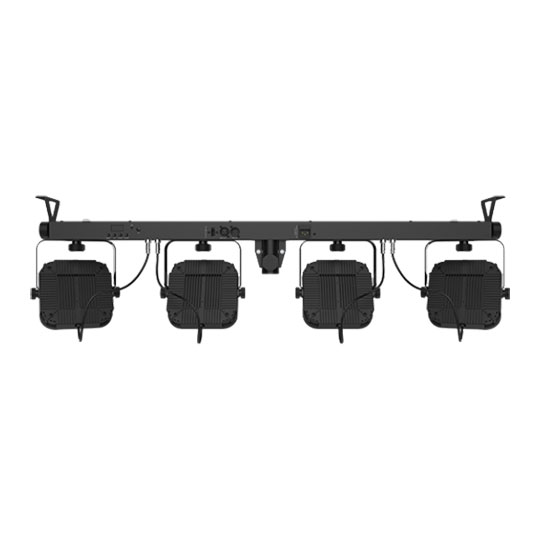

achieve natural-looking colour temperatures with 6-in-1 LED technologyThe Chauvet 4BAR Hex ILS is a complete wash lighting solution fitted with high-intensity hex-colour (RGBAW+UV) LEDs that can be controlled wirelessly straight out of the box using the included footswitch or optional IRC-6 remote.
ILS compatibility provides ultimate control flexibility and makes creating coordinated light shows with this unit and different fixture types nice and easy. Generate a broad spectrum of colours and achieve natural-looking colour temperatures with 6-in-1 LED technology. A tripod and carry bag are included for easy setup and quick tear down.
At A Glance
• Complete wash lighting solution fitted with high-intensity, hex-colour (RGBAW+UV) LEDs
• Out of the box wireless control with included footswitch or optional IRC-6 controller

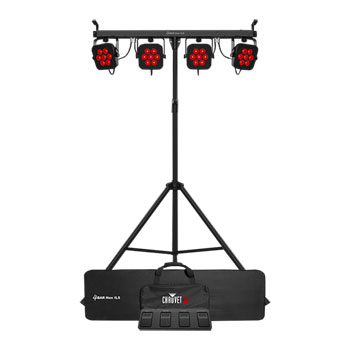

• Easily set up and tear down in minutes with the included tripod stand and carrying bags
• Achieve total room or stage coverage with 4 individually adjustable heads
• Increase mounting options by safely mounting to truss using built-in bolts
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Update the unit’s software from the built-in USB port
• ILS compatibility for use in the ILS ecosystem
What's Included?
• 4BAR Hex ILS
• Power cord
• Carrying bag
• Tripod
• Tripod Carry bag
• Wireless Footswitch
• Quick Reference Guide
The Tech Spec
| Features | Specification | DMX Channels | 6, 8, or 27 |
|---|---|
| DMX Connectors | 3-pin XLR |
| Max Unobstructed Distance | (foot switch): 100 ft (30.5 m) |
| Light Source | 42 LEDs (hex color RGBAW+UV) 5.1 W, (2 A), 50,000 hours life expectancy |
| Strobe Rate | 0 to 20 Hz |
| Beam Angle | 16° |
| Field Angle | 25° |
| Illuminance | 1570 lux @ 2 m (per pod) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 97 W, 1.3 A @ 120 V, 60 Hz 94 W, 0.7 A @ 230 V, 50 Hz |
| Weight | 12.2 lb (5.5 kg) |
| Size | 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm) |
| Approvals | CE, RoHS, UKCA |
| Footswitch battery | 9 V |
| Operating Frequency (D-Fi) | 2.412 to 2.484 GHz |
| Operating Frequency (foot switch) | 433 MHz |
| Stand Height | 7 ft 4 in (2.2 m) |
| Fits Tripod Sizes | 1.5 in (36.80 mm) |
| Bracket Mounting Hole | M10 (1.5 mm pitch) |
| Weight (Controller) | 1.2 lb (0.6 kg) |
| Size (Controller) | 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm) |
| Optional Controllers | IRC-6, ILS Command |
