Brompton Technology Tessera XD Data Distribution Unit

Brompton Technology Tessera XD Data Distribution Unit, 3 Year UK Warranty

Scan code: LN152980 Manufacturer code: BROMXD10G3Y
Call for price
  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Brompton Technology - 'XD Data Distribution Unit'
(3 Year Warranty)

Brompton Technology Tessera SX40 4K LED Processor

Flexible and Sophisticated SolutionThe Brompton Technology Tessera XD 10G Data Distribution Unit is a flexible and sophisticated single-box solution designed specifically for the challenges of large LED display systems.

When paired with the Tessera SX40 LED processor, the XD provides a powerful toolkit for easily and cost-effectively supporting the biggest LED projects. It is compatible with all existing Tessera fixture inventory.

10G Connectivity

RJ45 cable connector on black background

Keeping your cabling simpleTrunk connections from a Tessera XD unit use a 10G Ethernet-based backbone to reduce the number of required home-run connections to the processor.

The Tessera XD uses a proprietary multiplexing algorithm, built on top of standard 10G Ethernet, to ensure that tight timing constraints are met and all fixtures remain perfectly in sync.

To keep cabling as simple and affordable as possible, each 10G trunk supports up to ten independent 1G connections, compatible with off-the-shelf switches if you need to further split the signals.

Control Up to 2km

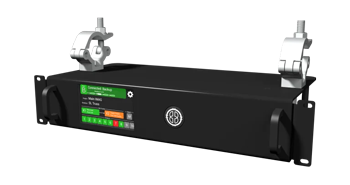

Brompton Technology XD Data Distribution with mounting clamps

Long Distance ControlTessera XD units are sturdy, gig-ready pieces of kit that can be easily truss mounted.

Tessera XD units are compatible with single-mode fibre cables up to 2KM in length. This allows for simpler, cleaner cabling, regardless of venue size or processor location: e.g. several XDs mounted close to the LED panel wall, connected by one cable to an LED processor that's running from the front of house or gallery.

Additional Tessera XD units can be daisy-chained together to extend the signal, allowing many different screens in different locations to all be connected to a single 10G trunk.

Perfect for Tessera SX40

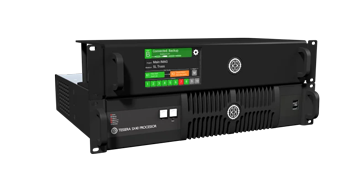

Brompton Technology XD Data Distribution Unit and Tessera SX40

Tessera SX40 LED ProcessorThe Tessera XD 10G data distribution unit works seamlessly with the Tessera SX40 LED processor to deliver a flexible, sophisticated single box solution designed specifically to easily and cost-effectively support the biggest LED projects.

The Tessera SX40 and XD support both copper and single mode optical fibre trunk connections, and the XD can be used to convert between the two media. Trunk connections between a Tessera SX40 and XD, or between XD units, use a 10G Ethernet-based backbone to reduce the number of home-run connections required.

Tessera SX40

Inputs & Outputs

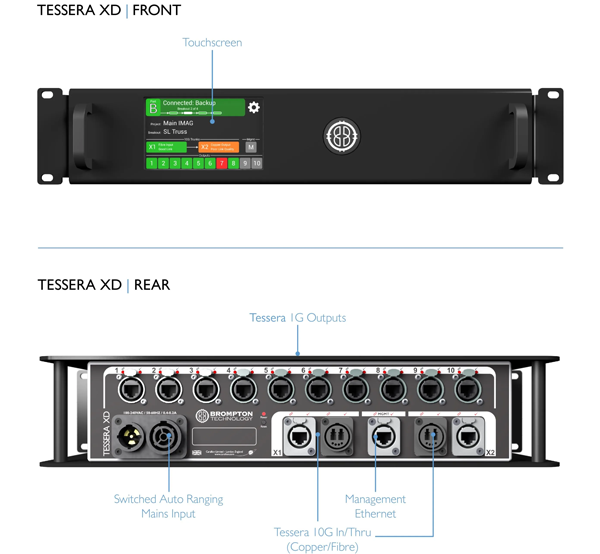

Brompton Technology Tessera XD Data Distribution front and rear connectors
Specifications
Input Connectivity
Max Input Resolution
Output Connectivity
Max Output Capacity
Control
Dimensions
Weight
Additional Information
Scan Code LN152980
Model Number BROMXD10G3Y
GTIN 00
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
36 months
