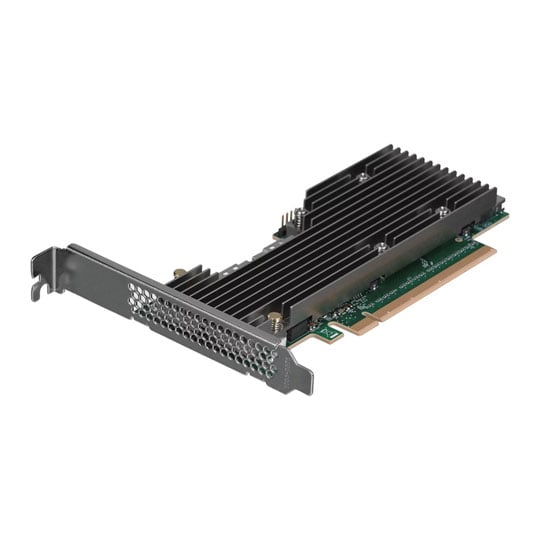

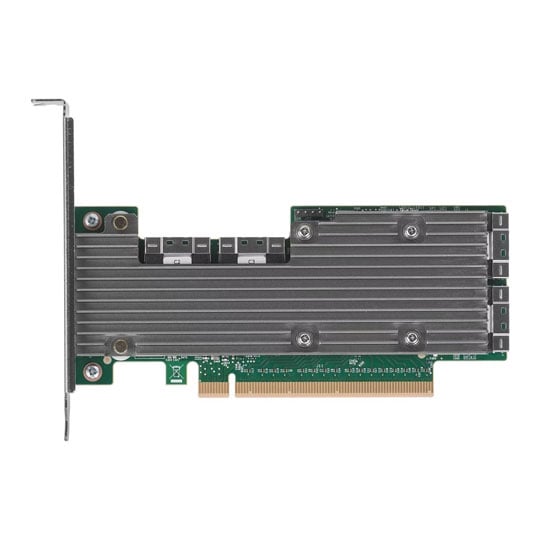

Broadcom P411W-32P PCIe Gen 4.0 NVMe Switch Adapter
Broadcom P411W-32P NVMe Switch Adapter, PCIe 4.0 x16, DPC, Read Tracking, SRIS / REFCLK Support, 4x SlimSAS (SFF-8654)
Email me when the availability or price changes
Finance this product
- From £18.23 / month (APR 0%) for 36 months
- With a 10% deposit from just £16.38 / month (APR 15.9%)
Suggested Alternatives
Highpoint Rocket 1528D NVMe Switch Adapter, 8x U.2/U.3 NVMe SSDs via 4x SlimSAS SFF-8654 Ports, PCIe Gen4 x16Highpoint Rocket 1528D PCIe Gen4 NVMe Switch Adapter
LN148899
No customer reviewKey Specifications
- Highpoint Rocket 1528D NVMe Switch Adapter
- 8x U.2/U.3 NVMe SSDs via 4x SlimSAS SFF-8654 Ports
- PCIe Gen4 x16
£719.99Pre order
Broadcom P411W-32P Gen 4 NVMe Switch Adapter
The Broadcom® P411W-32P is the industry's first fully managed Gen 4 NVMe switch adapter, providing enterprise class options for NVMe solid state drive (SSD) attach requirements. The P411W-32P leverages Broadcom's world-class board design, PEX88048 PCIe Gen 4 switch chip, and solid firmware expertise, to provide advanced features not available using traditional NVMe drive attach methods.
Similar to Broadcom HBAs, the P411W-32P adapter is supplied with fully validated and supported firmware and standards based out of band manageability features. The P411W-32P switch adapter delivers several innovative features, including true surprise add and removal, Downstream Port Containment and Read Tracking, which can help the users avoid typical situations that could cause a kernel panic. The integrated management processor delivers added features, such as SES compatible LED control and BMC support.
Features
• x16 PCIe Gen 4 Host Interconnect
• Up to 8 x4, 16 x2, or 32 x1 NVMe SSD connect
• SRIS and REFCLK support
• SFF-9402 compliant connector pinout
• Downstream port containment
• Read tracking
• Surprise Add and Remove
• Synthetic Hierarchy generation
• FRU Inventory support
• Hardware Secure Boot
• LED Management
• Universal Bay Management (UBM)-Ready (SFF-TA1005)
