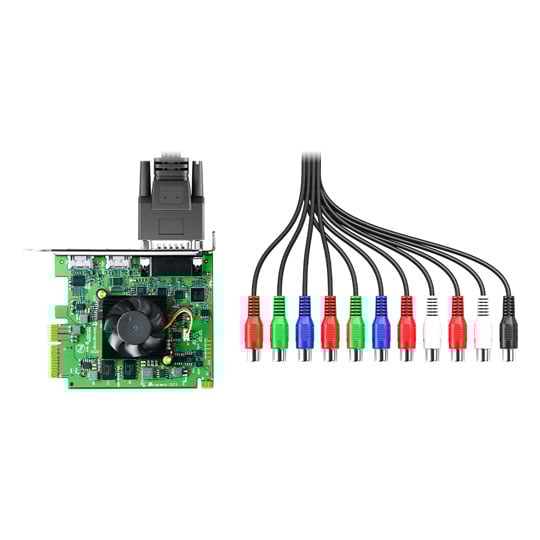

Blackmagic Design Intensity Pro 4K PCIe 4 lane Video Capture Card

Blackmagic Design PCI Express Intensity Pro 4K, HDMI, SPDIF, Component/Composite/S-video, NTSC/PAL/HD/UHD, PC/Mac/Linux

Thumbnail 1 : Blackmagic Design Intensity Pro 4K PCIe 4 lane Video Capture Card Thumbnail 2 : Blackmagic Design Intensity Pro 4K PCIe 4 lane Video Capture Card
Scan code: LN63274 Manufacturer code: BMD-BINTSPRO4K
3xs Approved
Order now and get it tomorrow, Tue 5th Jul
Get it Tomorrow, 05 JulIn stock
From £16.51 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £16.51
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £192.00
Total inc. interest: £198.02
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 5th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Intensity Pro 4K lets you capture and playback on PCIe Mac, Windows and Linux computers. Featuring HDMI and analog breakout connections, Intensity Pro 4K works with NTSC/PAL, HD and Ultra HD video with or without compression and is compatible with all popular video editing, audio, and streaming software. DaVinci Resolve Lite and Media Express software are included free so you get professional editing, grading and media management without having to buy extra software!

Introducing the new Intensity Pro 4K, the easiest and highest quality way to capture video on your computer! Intensity Pro 4K has all the same great features of the original Intensity Pro capture card but now you also get Ultra HD and 1080p60 high frame rate support! Now you can capture Ultra HD images at up to 30 frames per second or 1080HD at an incredible 60 frames per second! You can save files with or without compression and use it with the most popular Mac and Windows video software. Intensity Pro 4K also includes DaVinci Resolve Lite so you get a full capture and playback solution along with professional video editing and color grading, without having to buy any extra software!

Connect and Capture from Anything
Edit and stream video, capture gameplay or convert old tapes!
Whether you’re editing video and you need a realtime preview on a big screen TV, if you’re a hardcore gamer creating high frame rate walk throughs of your latest gameplay, or you’re trying to save family videos from old VHS tapes, Intensity Pro 4K has all the video connections and features you need! Intensity Pro 4K includes both analog and digital connections that let you easily plug in everything from older VHS decks to the latest big screen 4K televisions! You can even connect your cameras and use Intensity Pro 4K for live streaming, video conferencing, presentations and more!

Highest Quality Connections
Connect to all of your SD, HD and Ultra HD devices!
Intensity Pro 4K features the highest quality HDMI and analog connections so you always get the best looking video possible. Intensity Pro 4K includes HDMI connectors for working with the latest HD and Ultra HD equipment, as well as analog YUV, S-Video, and NTSC/PAL connections for working with older analog televisions, videotape players and more. That means Intensity Pro 4K works with everything from your old VHS decks and DVD players all the way up to the latest gaming consoles and big screen Ultra HD televisions!

SD, HD and Ultra HD
Supports video formats up
to 1080p60 and 2160p30! Intensity Pro 4K works with everything from NTSC, PAL, 720HD, 1080HD and all the way up to Ultra HD, the world’s newest video standard. Ultra HD has a massive resolution of 3840 x 2160 pixels which is four times the resolution of regular 1080HD! That means you get an amazing, lifelike experience because the images are incredibly sharp, colors literally pop off the screen and you’ll be able to see more detail than ever! With Intensity Pro 4K you can capture full 10-bit quality YUV video and deep color from the latest game consoles!

Intense Game Capture
Capture every thrilling moment of your latest gaming adventure!
Today’s HD game consoles can run up to 60 frames per second so you get the smoothest motion during even the fastest paced gameplay. That’s double the frame rate of ordinary HD video! The latest consoles also feature deep color, so you get dramatically better color for a more realistic gaming experience. Intensity Pro 4K can capture 1080 HD video at up to 60 frames per second. That means you can capture every heart pounding detail of gameplay and create the most amazing looking walk through videos for posting online to share with your audience!

Archive Old Tapes and DVDs
Preserve your most valuable video forever!
Rescue your old VHS, BetaMax video tapes and DVDs by making digital archives with Intensity Pro 4K! If your DVDs get scratched or your old tapes deteriorate and break you could lose important video memories forever. And as tapes get older, it’s harder and harder to find working decks to play them back! Intensity Pro 4K captures better looking video than other solutions because it includes a professional, broadcast grade time base corrector to help stabilize video from poor quality tapes, like VHS and older DVDs. You can even adjust the audio and video levels before you capture so that your video looks as good as possible. Files can be saved as either uncompressed or compressed video so your valuable video is preserved forever!

Simply Better Quality
Broadcast quality components for broadcast quality video!
Intensity Pro 4K is the only consumer video capture and playback card that’s built using the same broadcast quality video components that professionals in the film and television industry use! Files can be saved in professional compressed formats, like ProRes and DNxHD, or as fully uncompressed 10-bit video, the format used by professional television production studios. That means you always get the highest quality video and the best color precision possible when working with the latest Ultra HD televisions and projectors, gaming consoles, set top boxes, consumer cameras, VHS decks, DVD players, older broadcast decks and more!

Works With Everything
Use the video software you know and love.
Intensity Pro 4K is a PCIe card for Mac, Windows, and Linux computers. It includes the easy to use Media Express software for Mac, Windows and Linux, along with DaVinci Resolve Lite for Mac and Windows. That means you get a complete video capture and post production solution in the box without having to buy any additional software! You can also save files in QuickTime or Windows Media format and then use them with other popular Mac and Windows applications like Final Cut Pro X, Premiere Pro, Vegas Pro, Media Composer, Fusion, After Effects, Flash and many more. Features Connections

• HDMI Video Input
- 1 x HDMI type A connector.
• HDMI Video Output
- 1 x HDMI type A connector.
• HDMI Audio Input
- 8 Channels embedded in SD, HD and Ultra HD.
• HDMI Audio Output
- 8 Channels embedded in SD, HD and Ultra HD.
• Analog Video Input
- Component, Composite or S-Video.
• Analog Video Output
- Component, Composite or S-Video.
• Analog Audio Input
- 2 Channel RCA HiFi audio in 24-bit.
• Analog Audio Output
- 2 Channel RCA HiFi audio in 24-bit.
• SPDIF Audio Output
- 2 Channel 24-bit.
• Multiple Rate Support
- HDMI video connections are switchable between SD, HD and Ultra HD. Component analog video connections are switchable between SD and HD.
• Computer Interface
- PCI Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.


• SD Format Support
- 625i/50 PAL and 525i/59.94 NTSC, 480p
• HD Format Support
- 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
• Ultra HD Format Support
- 2160p23.98, 2160p24, 2160p25, 2160p29.97 and 2160p30.
• HDMI Video Sampling
- RGB 4:4:4 in HD and YUV 4:2:2 in Ultra HD.
• HDMI Audio Sampling
- Television standard sample rate of 48kHz and 24-bit.
• Color Space
- REC 601, REC 709.
• HDMI Color Precision
- 10-bit
• HDMI Configuration
- HDMI 1.4b supports Deep Color and automatically configures to connected display.
• Copy Protection
- HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.


• UHD/HD Down Conversion
- Software based down conversion during video playback.
• HD Up Conversion
- Real time SD to 1080HD and 720HD during video capture.
• Real Time Effects
- Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.


• Software Included
- DaVinci Resolve Lite, Media Express, Disk Speed Test, Blackmagic Desktop Video.
• Internal Software Upgrade
- Firmware built into software driver. Loaded at system start or via updater software.

Operating Systems

• Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
• Windows 7 or Windows 8.
• Linux

Physical Installation
• PCI Express 4 lane, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows 7 and 8, and Linux. Please check the Support pages to see the full system requirements.

What's Included
• Intensity Pro 4K
• Software SD card.
• Breakout Cable
Internal Connectors
External Connectors
Power Connector
