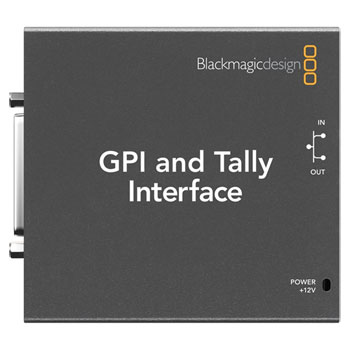

Blackmagic Design GPI and Tally Interface
Scan code: LN62580
Manufacturer code: SWTALGPI8
£457.99Item currently awaiting an ETA
Pre order
Blackmagic Design GPI and Tally Interface
Blackmagic Design GPI and Tally Interface
Scan code:
LN62580
Manufacturer code:
SWTALGPI8
Item currently awaiting an ETA
Pre order
Email me when the availability or price changes
-
Pay in
3
interest-free payments of
£152.66
- With a 10% deposit from just £12.17 / month (APR 19.9%)
Product Overview
GPI and Tally Interface connects to an ATEM switcher and provides 8 contact closure Tally outputs.
Tallies will be displayed when connected to an ATEM switcher to indicate their "on-air" status and you can even connect multiple interfaces together to increase the number of tally outputs. Features • 8 inputs / 8 outputs
• Indicates "on-air" status
Contact Closure
25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs
Inputs
Optical isolators triggered by connection to ground. Max 5V at 14mA.
Outputs
Mechanical relay contact closure to ground. Max 30V at 1A.
Ethernet
10/100 BaseT with loop through for connecting to other ethernet enabled equipment
Computer Interface
1 x USB 2.0 high speed interface for configuration and firmware updates
Tallies will be displayed when connected to an ATEM switcher to indicate their "on-air" status and you can even connect multiple interfaces together to increase the number of tally outputs. Features • 8 inputs / 8 outputs
• Indicates "on-air" status
Contact Closure
25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs
Inputs
Optical isolators triggered by connection to ground. Max 5V at 14mA.
Outputs
Mechanical relay contact closure to ground. Max 30V at 1A.
Ethernet
10/100 BaseT with loop through for connecting to other ethernet enabled equipment
Computer Interface
1 x USB 2.0 high speed interface for configuration and firmware updates
