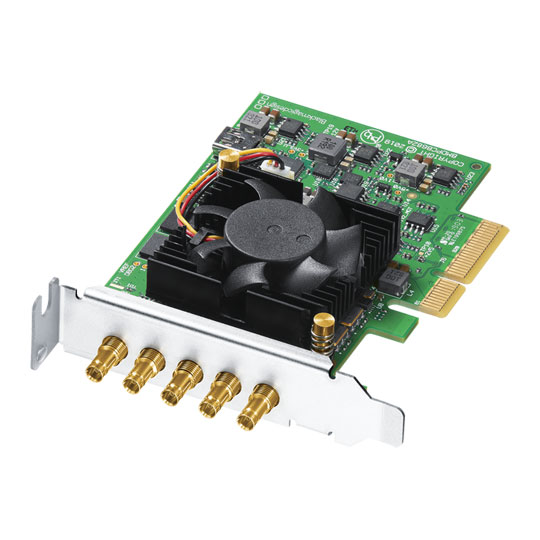

Blackmagic Design DeckLink Duo 2 Mini

Blackmagic Design DeckLink Duo 2 Mini, 4x 3G-SDI, Quad Channel SD/HD Video, Low-Profile PCIe Card

Scan code: LN113500 Manufacturer code: BDLKDUO2LP
£426.00
Order now and get it tomorrow, Tue 15th Jun
From £20.45 / month (APR 14.9%)
Monthly Payment: £38.25
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £426.00
Total inc. interest: £458.91
Monthly Payment: £20.45
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £426.00
Total inc. interest: £490.74
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.64 / month (APR 15.9%)
Delivery Options
  • By DPD On 15th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Blackmagicdesign - 'DeckLink Duo 2 Mini'
'Low-Profile PCIe Capture & Playback Card'

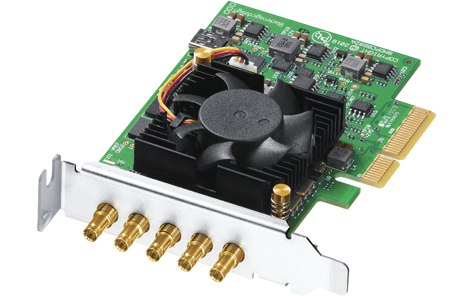

Blackmagicdesign DeckLink Duo 2 Mini Low-Profile PCIe Capture & Playback Card

High Performance Capture CardBlackmagicdesign’s DeckLink Duo 2 mini is a low-profile, multi-channel PCI Express capture and playback card that features 4 independent mini 3G-SDI connections and supports all SD and HD formats up to 1080p60. You get the flexibility of 4 independent capture or playback cards in one. It’s completely customisable so it’s perfect for media play-out systems, multi-screen digital signage servers, real time multi-channel capture systems and more.

The Tech Spec

Features Specification
SDI Video Inputs 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output
SDI Video Outputs 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output
SDI Audio Inputs 16 channels embedded in SD and HD
SDI Audio Outputs 16 channels embedded in SD and HD
Sync Input Tri-Sync or Black Burst
Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10‑bit 4:4:4
Softwarwe Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
Internal Software Upgrade Firmware built into software driver. Loaded at ssytem start or via updater software.
Physical Installation PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements
Software Applications DaVinci Resolve, Fusion, Final Cut Pro X, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Adobe Photoshop CC
Other Supported Applications Include The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker, Autodesk Flame, Zoom
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601
SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning
Audio Sampling Television standard sample rate of 48 kHz and 24 bit
SDI Colour Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback
SDI Video Sampling 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback
Colour Space REC 601, REC 709
Colorspace Conversion Hardware based real time
HD Down Conversion Built in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles
HD Up Conversion Built in, high quality software up converter from SD to 720HD or 1080HD on input. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom
Cross Conversion Built in, high quality software cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback
Real Time Effects DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects
Operating Systems Mac 10.15 Catalina, Mac 11.0.1 Big Sur or later
Windows 8.1 and 10, both 64-bit
Linux
Power Consumption 10W
Operating Temperature 5° to 40 ° C
Storage Temperature -20° to 45° C
Relative Humidity 0% to 90% non-condensing
What's Included DeckLink Duo 2 Mini
Specifications
Interface PCIe 2.0 (x4)
Internal Connectors
External Connectors 4 x HD/SD-SDI
Power Connector
Additional Information
Scan Code LN113500
Model Number BDLKDUO2LP
GTIN 9338716006193
