Blackmagic Design - 'ATEM Camera Control Panel'

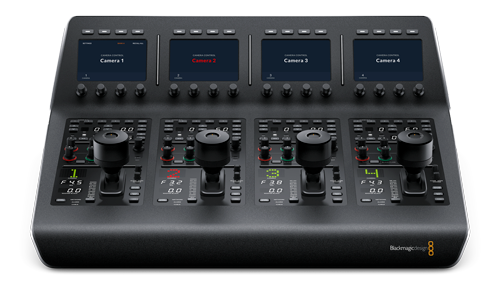

Blackmagic Design ATEM Camera Control Panel

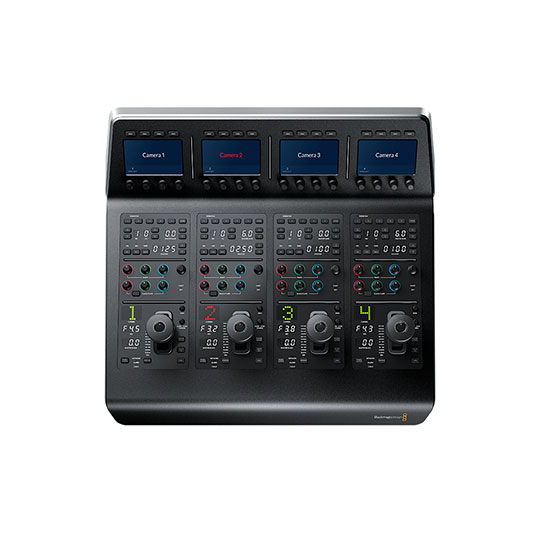

Remotely Control Four CamerasThe ATEM Camera Control Panel is a compact, remote camera control unit for up to four different URSA Broadcast, URSA Mini or Blackmagic Studio cameras. Featuring traditional broadcast style controls and adjustments so a single person can monitor and adjust a wide range of technical parameters like black levels, gain, colour balance, shutter speed and more. Leaving your camera operators free to focus on the framing and composition of your live production. The ATEM Camera Control Panel has been designed to be portable, so unlike a traditional CCU controller it does not need to be installed into a desk, it can be placed on any desktop or bolted down onto a slide out rack shelf. Arranged to be in a familiar and logical layout, the controls are perfect for both experienced and new operators. Plus it works with all ATEM switcher models.

Four Camera Controls Per Panel

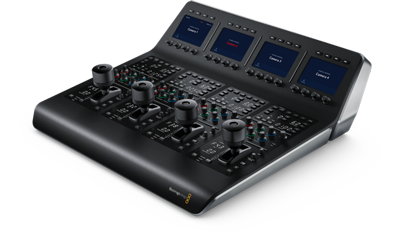

Blackmagic Design ATEM Camera Control Panel Side Angle

One Person can Control 4 CamerasWhen working on live multi camera programs, it’s important to make sure all of the cameras are properly balanced and set up correctly so that you get consistent video from every angle. The ATEM Camera Control Panel features 4 camera controllers in one panel. Each camera controller includes a large LCD screen with soft buttons and knobs at the top of the panel, and a full set of professional controls below, on the main body of the panel.

Scene Presets

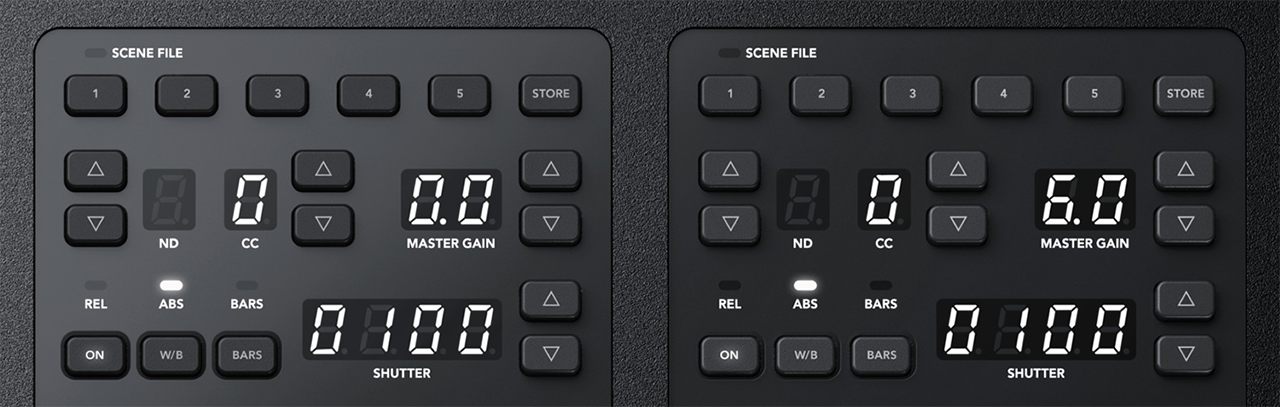

ATEM Camera Control Scene and Camera Controls

Scene and Camera ControlsThe top section lets you save and recall scene presets so you can quickly adjust cameras based on changes in the scene such as lighting. This section also includes controls for adjusting master gain, white balancing the camera and changing the camera’s shutter speed.

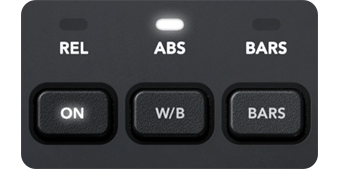

White Balance Control Buttons and Indicator LEDs

White BalanceQuickly set and adjust white balance.

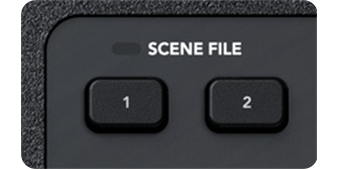

Scene Files preset buttons

Load ScenesSave and recall scene presets.

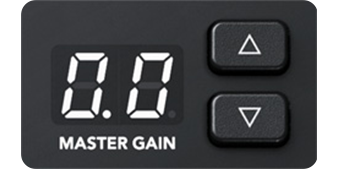

ATEM Camera Control master gain controls

Master GainBoost sensitivity of sensor in low light or when more depth of field is needed.

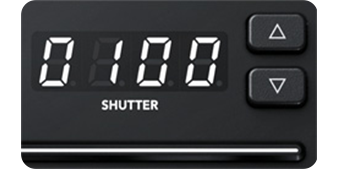

ATEM Camera Control shutter speed controls

Shutter SpeedSet the shutter speed of the camera.

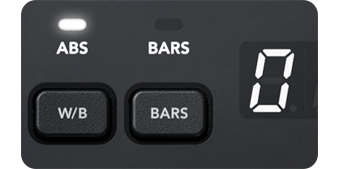

colour bar controls

BarsSelect to output colour bars for the selected camera.

Independent RGB Controls

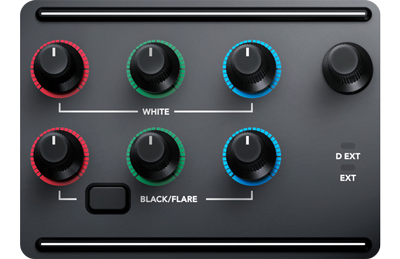

built in gain and pedestal rgb controls

Gain and Pedestal ControlsThe center section features independent RGB controls for gain and pedestal, or white and black. This allows you to adjust the individual red, green and blue levels in your blacks and whites to compensate for unwanted colour.

WhiteIndependent RGB control for gain/whites.

BlackAdjust the RGB values for pedestal/blacks.

Professional Iris Adjustment

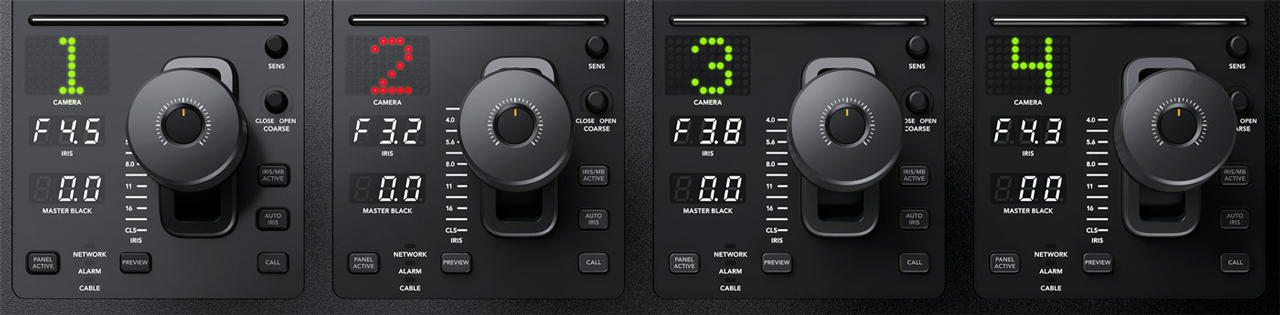

Independent camera lens and iris control anels with indicator led screens and joysticks

Lens and Iris ControlThe bottom section features an LED camera number that indicates preview and on air status, along with a high quality professional joystick that’s used to precisely adjust the iris and master black. It also features a call button for talkback with the operator, along with a panel lock button and indicators for the network, power and cable connection to the camera.

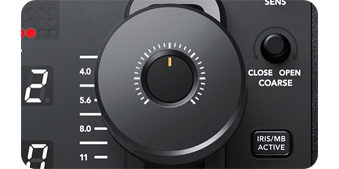

iris control joystick

Iris ControlJoystick for adjusting iris and master black. Adjust up and down for iris, rotate for master black and push to select camera to monitor.

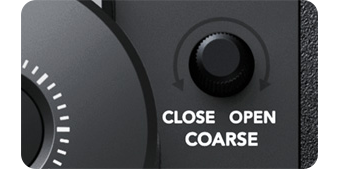

built in coarse control

Coarse ControlSets the limit of the iris control on the joystick.

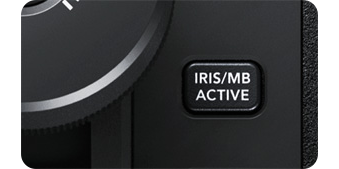

Iris and master black controls

Iris and Master BlackLocks the iris and master black controls on the joystick to prevent accidental changes.

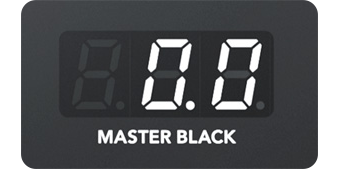

Master Black lcd indicator display

Master BlackControls the degree or level of black/pedestal without affecting contrast.

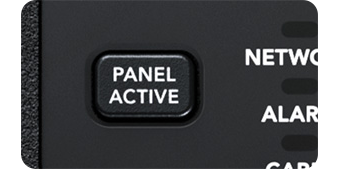

Panel Active control button

Panel ActiveLock out the entire panel to prevent accidental changes.

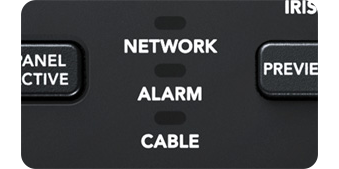

Status Indicator LED lights for network alarm and cable connections

Status LightsIndicate network connectivity, alarms and cable integrity.

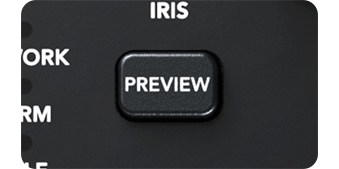

Video Preview button of ATEM Camera control panel

PreviewUsed for sending the aux feed to the monitor so you don’t have to move the joystick.

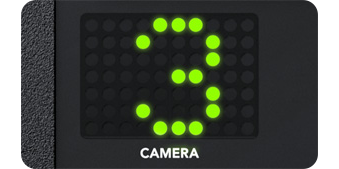

number 3 Individual camera LED dot Indicator with air and preview status

Camera NumberLED dot display that indicates camera number and on air/preview status.

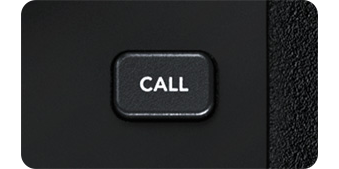

ATEM Camera Control Call button

Call ButtonFlashes tally light and sends tone to get operator’s attention.

Works Seamlessly with ATEM Switchers

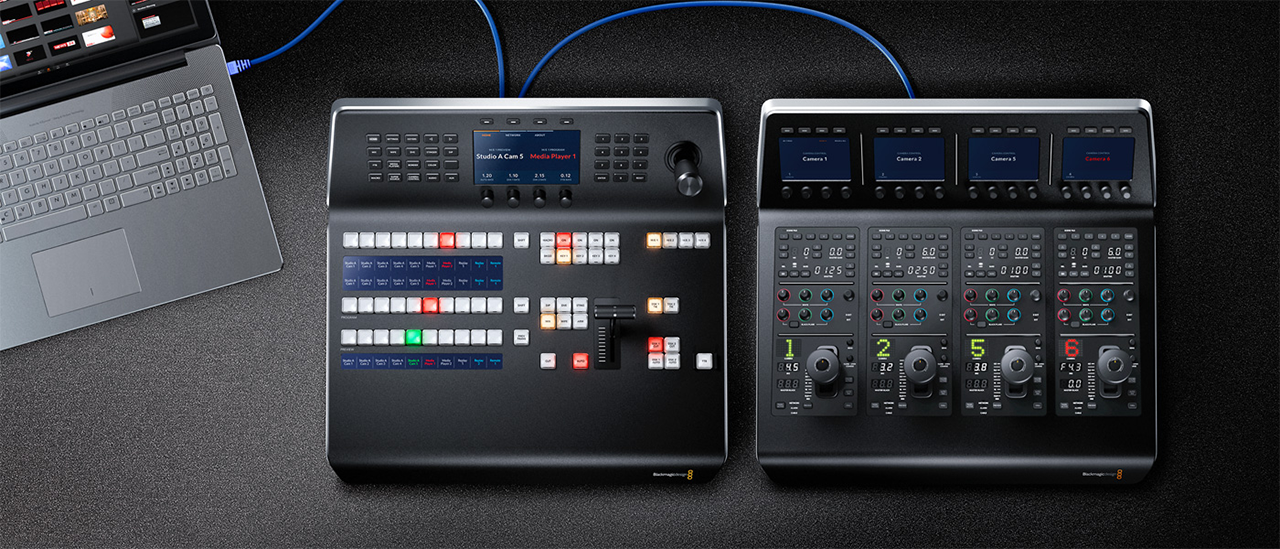

ATEM Camera Control Panel connected to ATM 1M/E Advanced Panel plugged into a silver laptop with video feeds sat on a black table top

Live Production WorkflowThe ATEM Camera Control Panel connects directly to your ATEM live production switcher or ATEM hardware control panel via Ethernet. In many setups, you may be using multiple ATEM products such as an ATEM 4 M/E Broadcast Studio 4K switcher with an ATEM 1 M/E Advanced Panel and the ATEM Camera Control Panel. Ethernet can simply be looped from one ATEM device to another.

Fast and Easy Control

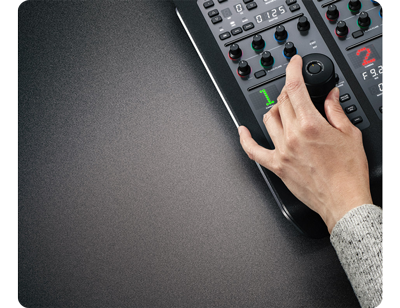

an operators left hand using one the ATEM camera control panels joystick to change parameters of a broadcast

With traditional CCU controls,
you can work much faster
The ATEM Camera Control is incredibly fast to use as it features traditional broadcast CCU controls so you get the benefit of years of broadcast experience. You can use the knob on the LCD to set the camera number, which turns red when a camera is on the air. The main joystick control can be moved vertically to adjust the camera iris while the knob can then be rotated to change the master black level. Pressing down on the knob will let you monitor the camera you’re currently controlling via the aux output of the switcher. Simply push the knobs to rapidly switch between cameras to ensure all your cameras match colour. The ATEM Camera Control Panel is fast to set up so you can instantly start controlling the cameras that are connected to your switcher.
