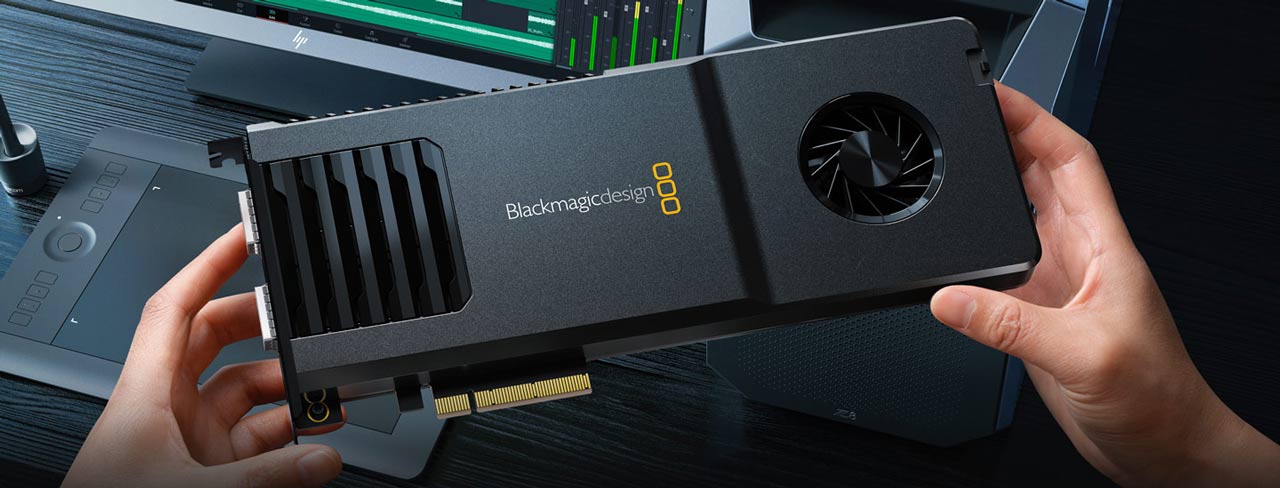

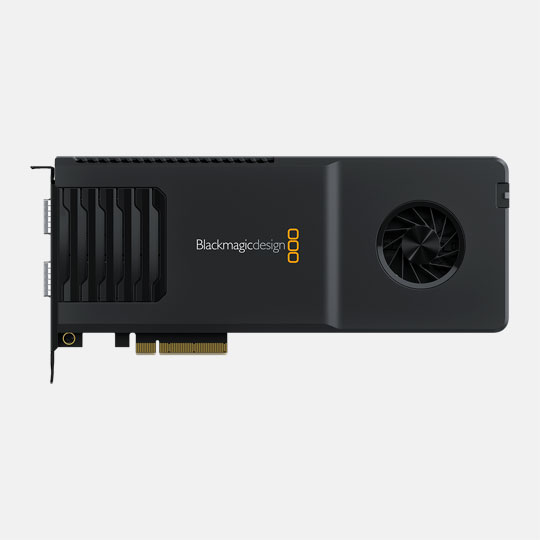

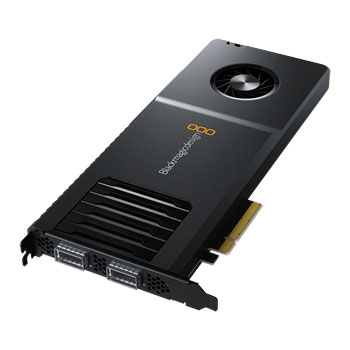

Blackmagic DeckLink IP 100G

The Perfect Capture and Playback for 2110 IP Broadcast SystemsBlackmagic DeckLink IP cards are the easiest way to capture and playback video directly into 2110 IP based broadcast systems and have all the same DeckLink features so your existing software will just work. The DeckLink IP 100G features 8 channels of Ultra HD video, in simultaneous capture and playback to 2110 IP broadcast systems via dual QSFP28 optical fiber Ethernet connections for full redundancy. Designed to work with the highest quality video with support for capture and playback to popular formats such as Apple ProRes, DNxHD and even 10-bit uncompressed. DeckLink IP 100G connections are multi-rate so they support all SD, HD and Ultra HD standards up to 2160p120.

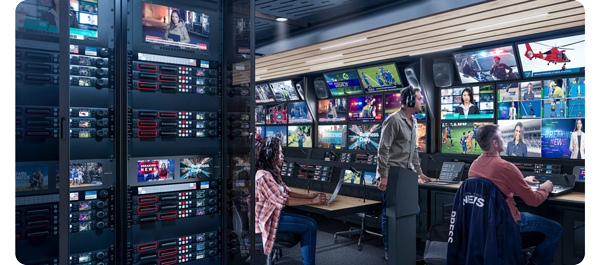

10G Ethernet for Multiple SMPTE 2110 IP ChannelsDeckLink IP cards conform to the SMPTE ST2110 standard for IP video, which specifies the transport, synchronization and description of video, audio and ancillary data over managed IP networks for broadcast. It also keeps video sources in sync using a common PTP clock. DeckLink IP supports SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data. The big advantage of SMPTE 2110 is all video, audio and ancillary data are transported independently over the network. Plus DeckLink IP supports multicast, which is an extremely efficient way of distributing video, audio and data from a single source to multiple destinations.

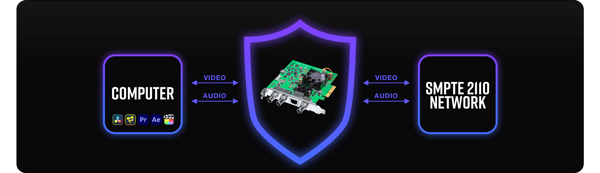

Built in Video Firewall for Total IP Network SecurityThe problem with computers and 2110 IP video networks is the vulnerability to rogue software or even hackers. That's because anyone can send data to the computer's Ethernet connection. However DeckLink IP eliminates this problem because all video is transferred using frame buffers. It's like a video based firewall. This means the DeckLink IP Ethernet port is isolated from anything other than video and audio. Instead, like all DeckLink cards, the video and audio are transferred to on board DeckLink frame buffers where video playback is managed and then converted to 2110 IP video channels. This means it's totally impossible for rogue software or hackers to access the 2110 IP network directly.

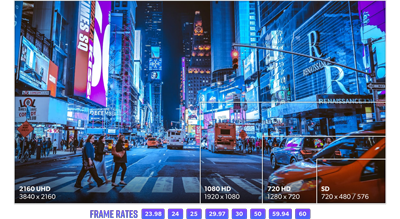

Support all SD, HD and Ultra HD standards to 2160p60DeckLink IP connections are multi-rate, so they support all SD, HD and Ultra HD formats, depending on the model. Plus the DeckLink IP/SDI model includes both 2110 IP and 3G-SDI, so it can connect to SDI equipment, while simultaneously connecting to new IP-based infrastructure. In standard definition, DeckLink IP supports both 525i59.94 and 625i50 standards. In HD, all DeckLink IP cards support 720p, 1080i and 1080p standards up to 1080p60. In Ultra HD you get support for all standards up to 2160p60. Video standard can be set independently for each channel and switches instantly when set using the default video standard setting in the Desktop Video Utility or directly via the DeckLink SDK.

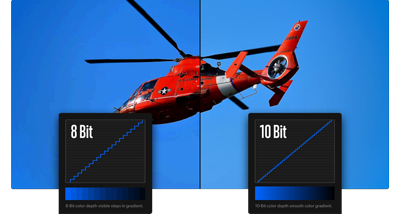

Get True 10-Bit Broadcast Video QualityDeckLink IP cards are designed to support the highest quality video. You get support for capture and playback to popular video formats such as Apple ProRes, DNxHD or even 10-bit uncompressed, so you're never locked into a single file format. 10-bit is the most commonly used television standard as colours can be represented with 4 times the precision of 8-bit video. Only working with 10-bit uncompressed video will ensure all images are a perfect pixel-for-pixel clone of the original source, so you’re always working at the absolute highest quality possible. This means you get the sharpest green screen keying, seamless VFX compositions and superior colour correction.

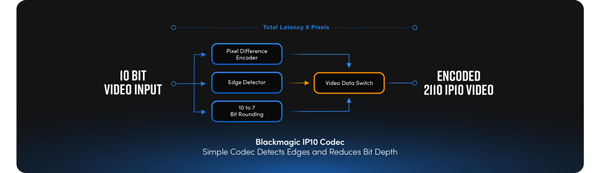

IP10 Codec Supports 2160p59.94 or 2160p60 via 10G EthernetAll DeckLink IP models support SMPTE-2110 IP data rates designed to fit within 10G Ethernet per channel so downstream products can be smaller, lower power and more affordable. However, when running in Ultra HD at either 2160p59.94 or 2160p60, then the video cannot fit within the bandwidth limits for uncompressed 10-bit video. The Blackmagic IP10 codec solves this problem! On the DeckLink IP 100G model, the open standard IP10 codec lowers the data rate of the 2160p59.94 and 2160p60 television standards with only 8 samples of latency. Plus it's an extremely small codec that uses very few FPGA resources, so it ensures SMPTE-2110 IP video products remain affordable.

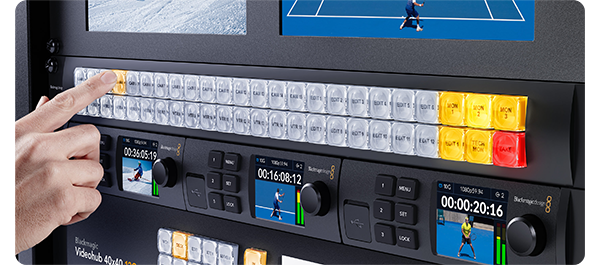

Includes NMOS Protocol for Building a Virtual RouterDeckLink IP supports the NMOS interface specifications so all 2110 IP video devices can operate together as a large virtual router. Plus Videohub Smart Control can route sources to destinations on 2110 IP networks because it can act as an NMOS controller. The NMOS interface specification describes how SMPTE 2110 devices such as DeckLink IP are discovered and controlled on IP networks. DeckLink IP supports IS-04 for discovery and registration of IP video devices and IS-05 for connection management between IP video devices. This means you can make connections between sources and destinations just like a traditional SDI router, but all within the Ethernet network.

Works With All Popular Video SoftwareDeckLink IP supports all popular video software, so you're free to work with the tools you already know and love. DeckLink IP is perfect for using DaVinci Resolve as a 2110 IP based broadcast editing and colour correction solution. Because DeckLink IP supports capture and playback at the same time, you can even use the live grading feature in DaVinci Resolve to capture video, apply colour correction and then output it all at the same time. DeckLink IP also works with other editing software including Final Cut Pro, Media Composer, Premiere Pro and more. You can even create stunning visual effects with Fusion, After Effects and Photoshop. Plus a Windows WDM driver is also included.

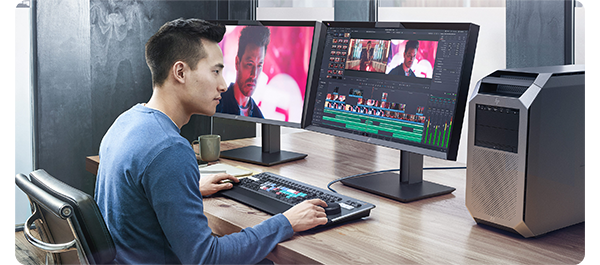

Compatible with DaVinci ResolveDeckLink IP is the perfect solution for DaVinci Resolve! Only DaVinci Resolve includes Hollywood level editing, color correction, VFX and audio post production in the single software tool. Plus DaVinci Resolve is a free download for Mac, Windows and Linux, so there are no monthly license costs. The editing uses a familiar track based layout with lots of trim and edit tools, as well as loads of high quality transitions, effects and title templates. Then you can add professional DaVinci color correction! DaVinci color correction supports full 32‑bit float YRGB processing with tools including primaries, secondaries, power windows, 3D object tracking, advanced AI tools and more.

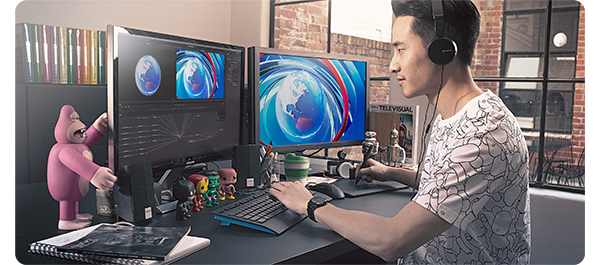

Use Powerful Broadcast Graphics ToolsWhen creating broadcast graphics and titles, you will want to use the same tools graphic designers are already familiar with, so you get the most creativity, with no retraining required. All DeckLink cards work with Fusion, which is the visual effects software integrated into DaVinci Resolve, as well as Adobe After Effects and Photoshop. Fusion Studio is a powerful node based compositing VFX tool with 2D and 3D environments, hundreds of effects and more. Plus you can download and use Fusion free of charge in DaVinci Resolve! You can use the included Blackmagic Media Express software to capture and play back video into files that can be loaded into Fusion, After Effects or Photoshop.

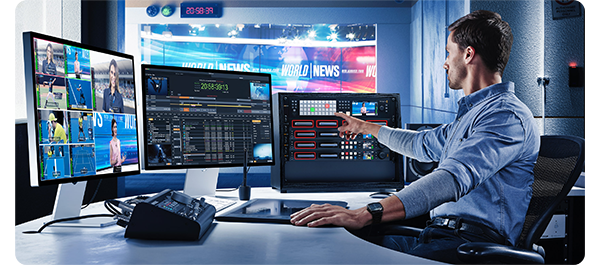

Build Custom Broadcast Automation ServersWhen you need to run your broadcast programming remotely, for either a large broadcast network or local television station, DeckLink IP can be easily combined within your custom broadcast automation systems. There are so many fantastic automation tools and on the Mac platform, you can use Tools On Air just: Broadcast Suite, Softron OnTheAir, MovieRecorder and OnTheAir CG. On the Windows platform, you get compatibility with Vidblaster X, Studio and Broadcast, Uniplay and Playbox AirBox! These powerful software tools work with DeckLink IP to manage all types of broadcast automation tasks, and they are proven solutions that are currently running thousands of television stations worldwide.

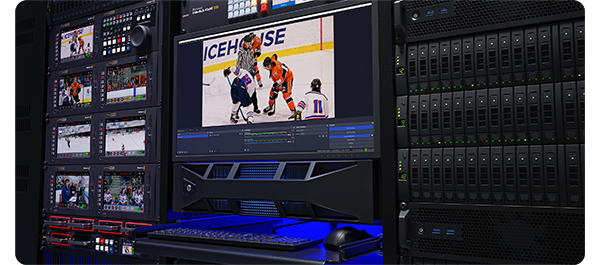

Build Streaming Servers for Global BroadcastingDeckLink IP works the same as other DeckLink cards, so it’s also fully compatible with popular video and audio streaming software. This means you can build streaming workstations that let you live stream to millions of global viewers online! On the Mac, you get fantastic streaming solutions such as Open Broadcaster, Wirecast and more. When streaming on Windows, you get compatibility with Open Broadcaster, Xsplit Broadcaster and Wirecast. With DeckLink IP, you can take any 2110 IP feed and convert into live streams to as many online platforms as you need. Or with the ATEM Streaming Bridge, you can even link up remote broadcast networks.
