Blackmagic Design ATEM Mini Pro ISO Multi Camera Video Production
Blackmagic ATEM Mini Pro ISO , 2 x 3.5mm stereo mini jack, 4 x HDMI input, 10-bit HD switchable, GbE, USB 3.1 Type-C
Frequently Bought Together
Blackmagic Design - 'ATEM Mini Pro ISO'
low cost, multi camera, live production
with advanced broadcast features
ATEM’s Mini switchers make it easier than ever to create professional multi-camera productions for live streaming on YouTube and exciting business presentations via Skype or Zoom! Just connect ATEM Mini Pro and you can switch live between upto 4 high quality vide camera inputs for drastically higher quality images. Or connect a computer for PowerPoint slides or gaming consoles. The built in DVE opens the door for exciting picture in picture effects too, ideal for commentary!
Across the ATEM Mini range, all models feature USB that acts like a webcam so you can use any streaming software. This model adds recording of up to 5 separate H.264 video streams in real time. That’s clean feed of all inputs and plus the live program. A DaVinci Resolve project file is also saved so you can open your live production to adjust edits, change shots, remix audio and add colour correction.
Faster Video Production, Plus Live Streaming!
4 HDMI inputs
Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB webcam output of ATEM Mini connects to any computer and looks just like a built in webcam, so all streaming software for social media platforms work! With up to 4 HDMI inputs you can set up multiple camera angles such as wide shots along with independent close ups of each person in the performance.
Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites or gaming consoles. All switching is in real time so you can live stream to any social media platform such as YouTube, Facebook, TwitchTV and many more!
Self Contained, Broadcast Quality Switcher
INTUITIVE CONTROL LAYOUT

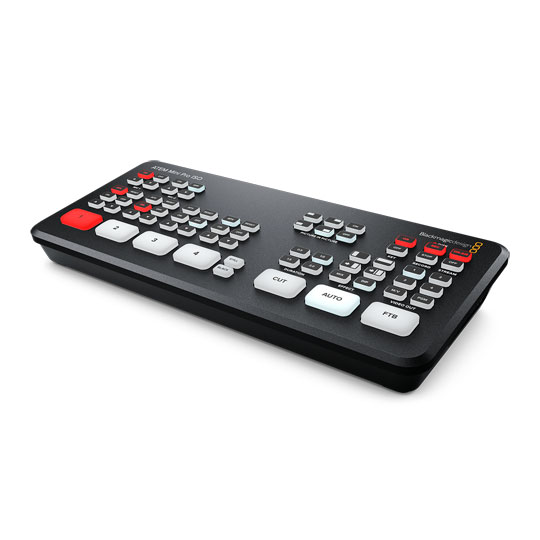

The ATEM Mini Pro's compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it’s possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing!

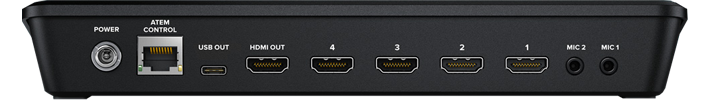

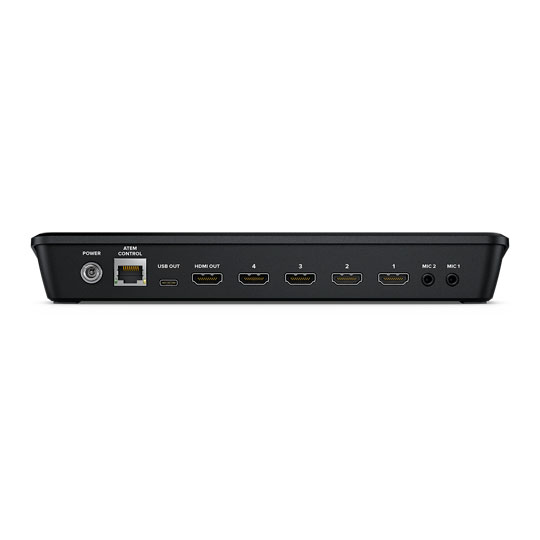

Exclusive to the ATEM Mini Pro model, is the addition of buttons to allow for recording and streaming control, as well as output selection buttons that let you change the video output between cameras, program and multiview. On the rear panel there are HDMI connections for cameras or computers, extra microphone inputs, USB for webcam out plus an HDMI "aux" output for program video.
Stream Live Interviews
connect multiple camerasGet dramatically better business presentations on Skype because ATEM Mini makes Skype see it as a webcam, so you can select it in the Skype settings! One camera can be a close up, another for a wide shot and a computer for PowerPoint presentations. The presenter can even use picture in picture!
Business Presentations via Skype Never worry about your heavy graphics card damaging your motherboard again. AORUS’ proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a foolproof option which can save your PC’s life.
Live Stream eSport CompetitionsLive stream eSport competitions to Twitch by simply connecting multiple gaming consoles and a camera for a presenter. ATEM Mini operates up to 60 frames per second for fast gameplay and you can use picture in picture for commentary! You can even download titles from Photoshop!
Kickstarter and Investor UpdatesRaise the professionalism of Kickstarter or investor presentations to fund your new product idea! Connect a camera for the presenter, a camera for a product close up and a computer for business plan slides. Then present live via Skype and post recordings online for investors to view!
Education and TrainingATEM Mini is perfect for educational videos! Setup is fast and easy, so you can travel to locations and record live multi camera video productions on a wide range of educational topics! Connect computers and cameras and use the ATEM Software Panel to load titles and perform video effects.
Live Stream via Ethernet on ATEM Mini Pro
built in Ethernet connectionThe ATEM Mini Pro model has a built in hardware streaming engine for live streaming via its built in Ethernet connection. That means you can live stream to YouTube, Facebook and Twitch in better quality, without dropped frames and with much simpler settings. Just select the streaming service and enter the streaming key! There are palettes in ATEM Software Control for streaming setup and status, plus streaming status is also displayed in the multiview.
Streaming status is easy to understand as the data rate indicator shows internet speed required for the video format you're using. If you're technically minded, you can even hack the detailed streaming profiles in the XML preference file and load new services.
Record Direct to USB Flash Disks
trigger recording externallyThe ATEM Mini Pro model also supports direct recording of your streaming data to USB flash disks! That means you get very long recordings in the same H.264 video files with AAC audio that you streamed, so you can direct upload to any online video site, such as YouTube and Vimeo. ATEM Mini Pro supports multiple disks when used with a USB hub or Blackmagic MultiDock, so when a disk fills recording can continue to a second disk for non-stop recording.
Record settings and disk selection are set up in ATEM Software Control and there's a record status view in the built in multiview. You can even trigger recording on external Blackmagic Pocket Cinema Cameras!
Add Exciting Video Effects
a wealth of fun effectsOne of the benefits of ATEM Mini Pro is the professional production values that are possible using the range of built in video effects! The cut button ensures an instant cut when switching between sources. The auto button is a professional term that's used on large broadcast switchers to enable video effects transitions. There are duration buttons for video effects allowing 0.5, 1, 1.5 and 2 second settings.
You can also select the type of effect you want including mix, which does a smooth transition between sources, and dip which fades via a color during the transition. Or use fun DVE effects that move the image off screen when transitioning between sources!
Automatically Converts any HDMI Input Format
fluid conversionEach of the 4 HDMI inputs feature their own dedicated standards converter. That means ATEM Mini will automatically convert 1080p, 1080i and 720p sources to the video standard of the switcher! By default the switcher will set its video format automatically, however you can also set the switcher to a specific video standard you need!
The HDMI output is a true "aux" output so you can clean switch each HDMI input or program to this output. You can even "direct" switch input 1 to the HDMI output for low latency eSport productions. If you're using program/preview switching, the HDMI out can be selected to preview, or on the ATEM Mini Pro model, it can be selected to display a full multiview.
Secret Broadcast Features Built In!
free ATEM Software Control app While ATEM Mini Pro is easy to use, it's also hiding very powerful broadcast features! If you're interested in a career in the television industry, then ATEM Mini Pro is perfect for training as it has the same features as switchers in high end broadcast studios. You get an ATEM Advanced Chroma Key, Fairlight audio mixer, DVE, still store for graphics and much more!
Simply run the free ATEM Software Control app on Mac or Windows while connected via USB or Ethernet to access the extended features of the ATEM Mini. With a little experimentation you can learn how to produce broadcast quality live production. Only ATEM Mini is a true broadcast switcher hidden in a tiny and affordable design!
The Tech Spec
| Features | Specification | Total Video Inputs | 4 |
|---|---|
| Total Outputs | 2 |
| Total Aux Outputs | 1 |
| Total Audio Inputs | 2 x 3.5mm stereo mini jack |
| Total Audio Outputs | None, embedded audio only |
| Timecode Connection | None |
| HDMI Video Inputs | 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio |
| Video Input Re-Sync | On all 4 HDMI inputs |
| Frame Rate and Format Converters | On all 4 HDMI inputs |
| HDMI Program Outputs | 1 |
| Ethernet | Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection |
| Computer Interface | 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection |
