Black Lion Audio Revolution 6x6 Audio Interface
Black Lion Audio - Revolution 6x6, 6-In, 6-Out USB Audio Interface
6-In, 6-Out USB Audio Interface

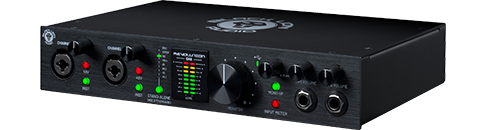

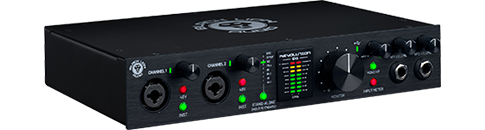

Black Lion Audio - Revolution 6×6
more than what you expect from an audio interfaceThe Black Lion Audio Revolution 6×6 is an all-purpose studio dynamo that works a master clock, a standalone DAC and ADC, and a 6-in, 6-out class-compliant USB interface with audio quality worthy of the Revolution name. Experience njoy world-class clocking and low-noise conversion while tracking to the included Studio One Artist. Use the USB OTG connection to sample audio from your phone or tablet, or send audio from your laptop to your mobile device and stream your performance live online. Sync your other hardware devices using proprietary Macro-MMC clocking — all while giving your music with the highest audio quality imaginable.
Amazing Features
• 6-channels for recording multiple sources simultaneously

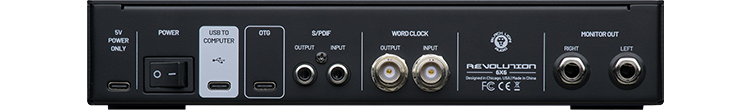

• Word clock and S/PDIF connectivity for digital expansion
• Noise reduction built-in for clean recordings

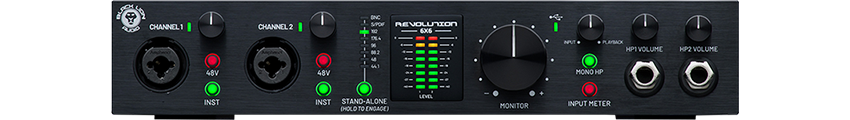

• Direct monitoring with two headphone outputs
• Revolution Software Suite included
Audio Interfaces Don’t Sound Better Than This
the ultimate experienceRevolution 6×6 is a class-compliant, bus-powered USB audio interface with industry-leading signal quality based on Black Lion’s years of experience in audio interface modification. Balanced XLR, line-level, and instrument-level input options allow you to record anything. Connect pro studio monitors or use its two plenty-loud, crystal-clear, mono-summable headphone outputs with direct monitoring mix control. Integrate external gear via the S/PDIF connection and USB OTG.

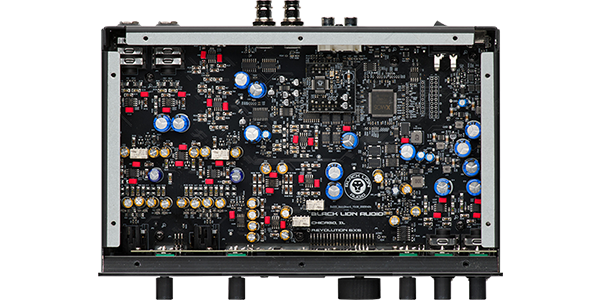

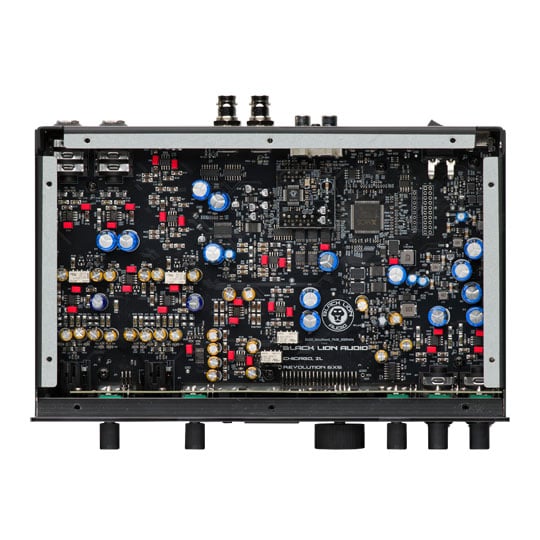

Black Lion Audio have put everything they’ve learned about interfaces from years of boutique modding into the Revolution 6×6, modded out of the box for crystal-clear audio that will move you and your fans. Rarified tech found in Revolution 6×6 includes the Macro-MMC clock for maximum converter quality, featuring reduced jitter and enhanced harmonics for a glossy, airy top-end you won’t hear in lesser interfaces. Proprietary PG-i filtering technology and highly-filtered power rails work with full-circuit power decoupling to further reduce noise contamination. For the best possible capture and playback, Revolution 6×6 sports the most cutting edge, high-end ICs and Vishay, Nichicon, and Wima capacitors throughout with all internal gain-staging optimized for the best possible signal-to-noise ratio. Last but not least, all analog I/O is fully decoupled and balanced — right to the very core of the converter!
Standalone Mode for DAC and ADC Use
extra versatileNot every studio task requires a computer. The Revolution 6×6’s DAC, word clock, and D/A conversion features can all be used without a computer; just press and hold the “Standalone” button. Plug in your media player via S/PDIF and enjoy good old-fashioned hi-fi listening with good new-fashioned hi-fi conversion, or add two additional output channels from another audio interface or digital mixer. Many MPCs, synths, and guitar processors also have S/PDIF, which will often deliver better sound than using their onboard converters.
For recording, connect any guitar processor with a S/PDIF output and enjoy high-quality D/A conversion of your custom guitar tones. You can even connect Revolution 6×6 to your computer over USB for hi-fi listening by bypassing the questionable converters in your old laptop. Use S/PDIF to add two channels to an audio interface or digital mixer, all synchronized by the same primary word clock over BNC. As a standalone A/D converter, you’ll add two superior channels of Black Lion-converted audio over S/PDIF to your existing recording setup — and you won’t have to buy an ADAT expander.
Get Mobile with USB On-The-Go
endless possibilitiesUSB On-the-Go connectivity gives the Revolution 6×6 2-in, 2-out connectivity with Android and Apple mobile devices. It works perfectly for livestreamers and mobile musicians who record to or stream from phones and tablets.
Connect two USB devices to the Revolution 6×6 simultaneously and send audio to and from either. Sample from your phone to your laptop, or livestream an iPad performance from your phone… the possibilities are endless!
Shocking Clocking
the best possible performanceThe Macro-MMC (Master Music Clock) in Revolution 6×6 was developed from our experience creating dedicated word clocks, along with modifying many embedded clocks found in other recording interfaces.
Macro-MMC ensures the best possible performance from its converters, but also allows you to connect external gear via the BNC connections for maximum sync and ultra-low jitter — meaning any devices synced via Macro-MMC are communicating as accurately as possible to minimize the phase distortions that can muddy your high-end and dull your transients. If you’ve already invested in a clock you like, that’s fine — the Revolution 6×6 graciously accepts clock in.
All the Software Tools You Need
award winning technologyThe Revolution Software Suite covers all of your software needs so you can start creating from day one. You’ll record straight into the award-winning Studio One Artist, also included are select plugins from Izotope, Psychic Modulation, Brainworx, and Lindell.
Introducing the Revolution 6x6!
The Tech Spec
| Features | Specification | Mic Input | Input Impedance = 2.08 kΩ maximum input level @ gain min = +8.052 dBu maximum input level @ gain max = -46.54 dBu Frequency Response: frequency response 20hz to 20kHz @gain min (input level -1 dBFS) = +/-0.021dB Frequency Response: frequency response 20hz to 20kHz @gain max (input level -1 dBFS) = +/-0.022dB = HD + N @ 1 kHz @ gain min (bandwidth 20hz-20kHz, un-weighted, (input level -1 dBFS) = 0.00103% SNR @ 1 kHz @ gain min (bandwidth 20hz-20kHz, A-weighted, (input level 0 dBFS ) = 110.584dB Dynamic Range @ gain min (bandwidth 20hz-20kHz, A-weighted -level 0 dBFS) = 111.021 dB Crosstalk = -90.991 dB |
|---|---|
| Line Input | Input Impedance = 15.49 kΩ Maximum Input (maximum input level @ gain min) = +21.562 dBu maximum input level @ gain max = -32.84 dBu Gain Range = 59.056 Frequency Response = +/-0.018 dB = HD + N = 0.00106% Dynamic Range = 110.194 dB Crosstalk = -96.073 dB |
| Line Outputs | Output Impedance = 47 Ω Max Output Level = +12.398 dBu Frequency Response = +/-0.098 dBu = HD+N = 0.00088% Dynamic Range = 106.404 dB |
| Instrument Input | Input Impedance = 1 MΩ Gain Range = 59.2415 Frequency Response = +/-0.046 dB = HD + N = 0.00212% Dynamic Range = 103.585 dB Crosstalk = -96.760 dB |
| Headphone Outputs | Output Impedance = 10 Ω Maximum Signal Output = 2.788 Vrms Frequency Response = +/-0.117 dB |
| Included Software | Studio One Artist Izotope Elements Suite including Nectar, Neutron, Ozone and RX BrainWorx BX Digital Lindell 6X500 Psychic Modulation EchoMelt3 |
