Scan code: LN96549 Manufacturer code: BDMINIHDMI

BirdDog Mini HDMI to NDI Encoder/Decoder

BirdDog Mini Full NDI Encoder/Decoder 1080p60, HDMI Loop Out, Comms, Tally

Thumbnail 1 : BirdDog Mini HDMI to NDI Encoder/Decoder Thumbnail 2 : BirdDog Mini HDMI to NDI Encoder/Decoder
Scan code: LN96549 Manufacturer code: BDMINIHDMI
£499.49Item currently awaiting an ETA
Pre order
From £20.82 / month (APR 0%)
Monthly Payment: £83.25
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £499.49
Total inc. interest: £499.49
Monthly Payment: £41.63
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £499.49
Total inc. interest: £499.49
Monthly Payment: £27.75
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £499.49
Total inc. interest: £499.49
Monthly Payment: £20.82
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £499.49
Total inc. interest: £499.49
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £12.47 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

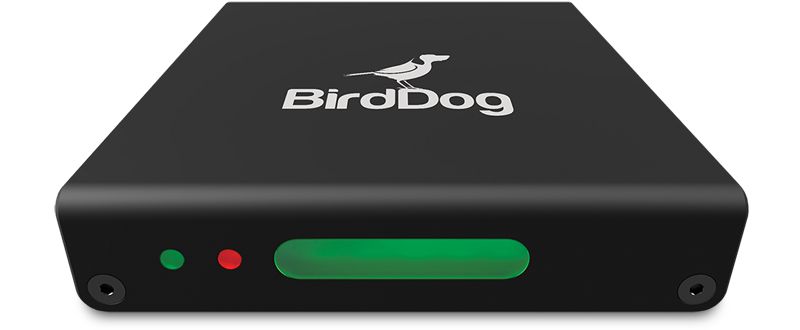

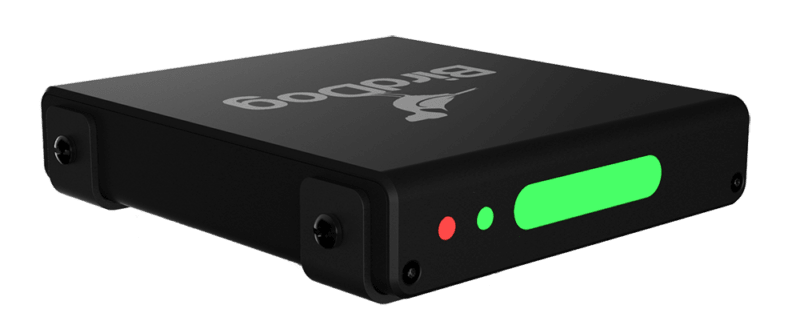

BirdDog Mini: NDI on a Micro Scale

main

Full NDI Bit-rateBirdDog’s Mini NDI encoder and decoder is the ultimate, compact solution for enabling NDI within your workflow. BirdDog don’t just bring you NDI, but the full bit-rate NDI, instead of competition’s NDI HX, a compressed variation of the standard that reduces quality to compensate. The Mini doesn’t compromise, regardless of its size.

UncompromisingThis uncompromising attitude to NDI continues into the resolution support, with everything from SD to 1080p 60fps, you can pump anything through the HDMI port and scale it to suit your need into an NDI signal.

The Mini also has an HDMI output, so you can loop out the feed for previewing, so you don’t lose the HDMI port you’d be losing and don’t need to invest in a splitter.

What is NDI?

what is ndi

Network Device Interface is an royalty free technology developed NewTek to adapt a network into transferring video signals over it to a destination. NDI is now the industry standard for network based video production and in the future, might begin to replace SDI and HDMI as the current hardware standard for cables, as Ethernet and inexpensive network switches are far cheaper in comparison.

Specs

main

HDMIInput and Output

3.5mmMicrophone headset input/output

Full NDICodec Support

1080p, 1080i, 720pHD Formats

525i, 625iSD Formats

10/100/1000Ethernet with PoE

What does BirdDog Do?

main

Multiple Use Cases With the BirdDog Mini, once hooked into a local network (which could be as simple as connecting the source to the Mini and to your PC via Ethernet), it turns a once locked off, traditional source into a network point that vision mixers then pick up as a video source as you’d usually recognise. You don’t even need the traditional power adapter, as BirdDog devices can be powered over Ethernet with the correct switch in place.

Decoding NDI

main

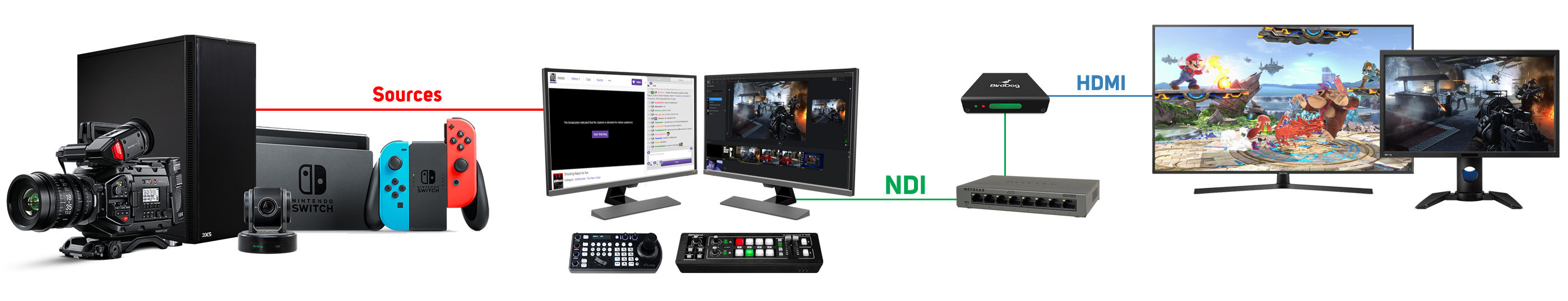

Put it in Reverse Now with NDI Decoding included within all BirdDog devices as a free update, you can receive any full NDI stream and push it back out over HDMI. You can get your original sources around your network or location in a variety of ways, not just limiting it to a direct connection between your sources and BirdDog.

main

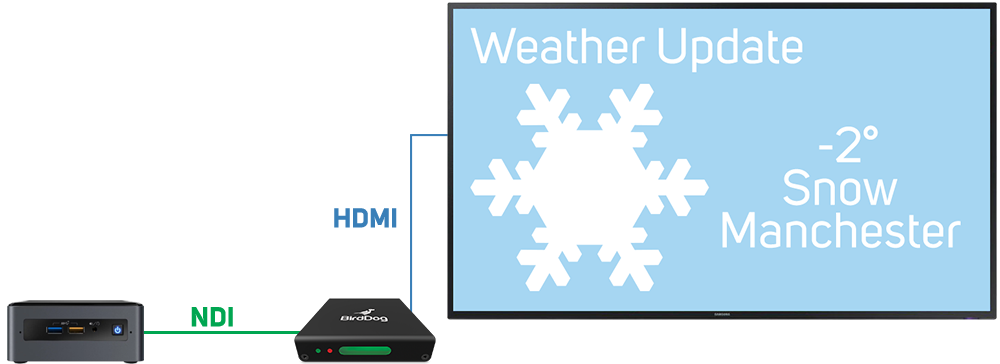

Perfect for Digital Signage As the BirdDog Mini is quite small and NDI is far easier to fit into a digital signage solution, the Mini is actually a perfect addition to that type of workflow to begin producing signage across almost any display with just a lot less equipment involved. So instead of fitting large portions of SDI cabling or even fitting individual mini PCs (NUCs, Intel Sticks etc.), you can instead send the NDI signal to the Mini via Ethernet, which will then spit out via the HDMI port and this can be done to multiple Minis with a central PC located on the local network in another location in the building.

More from BirdDog

main

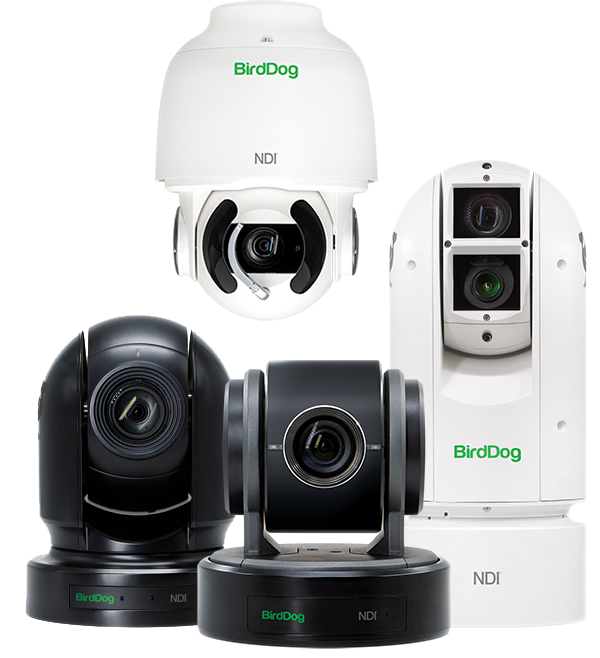

PTZ, Comms, Central Control With BirdDog Central, you can get an even easier method routing the signal and the additional functionality with BirdDog’s Comms system for communicating across your setup. BirdDog also now make their own range of PTZ cameras, which of course come with full NDI functionality and a PTZ Controller.

BirdDog have a Studio version that does SDI and HDMI.

BirdDog Studio

Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.

Reviews
Questions & Answers
BirdDog Mini HDMI to NDI Encoder/Decoder
BirdDog Mini HDMI to NDI Encoder/Decoder
