Flex Backpack 4K Full NDI Encoder
BirdDog Flex BackPack - 4K Full NDI Encoder with Tally, Comms, PTZ Control, PoE+, DC Power Output
Email me when the availability or price changes
'Worlds Smallest 4K NDI Encoder'
BirdDog - 'Flex' Backpack
4K NDI in one tidy, sleek package...
Flex offers all the things you have come to expect from BirdDog’s one cable solution, including Tally, Audio, Video, PTZ Control, Audio Intercom and Power, all via a single Ethernet cable. With a range of 3 models to choose from in the Flex Family, Flex is the ideal for all your workflow needs.
Boasting a tiny footprint only ever so slightly larger than a debit card, BirdDog’s Flex are the world's smallest 4K NDI Encoders and Decoders. ‘Because sometimes the biggest things are also the smallest.
3.5mm/HDMIAudio Input
NDIVideo Codec Support
3.5mm/HDMIAudio Output
What's included?
• 1x BirdDog Flex 4K BackPack (BDFLEXBP)
• BirdDog 1 Year Limited Warranty
• Power Supply
Amazing Features

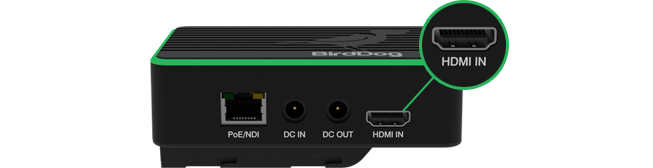

• Ultra-Compact Form with HDMI 2.0 Input
• PoE, Sony L-Series & DC Power Options
• Supports up to UHD 4K30, 1080P60
• 15W DC Output to Power Monitor or Camera
The Ultimate Upgrade

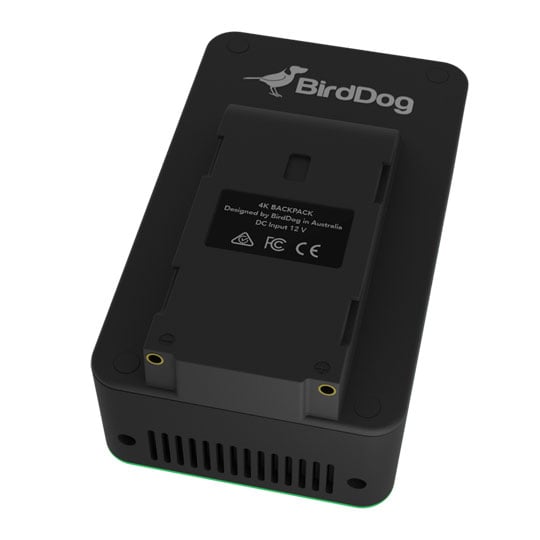

15W power output‘Flex Backpack’ is a magnificent upgrade for your camera top monitor recorder. Sporting an ‘NP’ style battery connection, alongside a 15W power output, it enables the user to encode NDI, power your monitor, and record, simultaneously.
Cool Touch ThermalsOften, the greatest features are also the least obvious. Flex 4K NDI features unmatched thermal design and near-silent fans to keep Flex cool and optimal, even on the hottest days and in direct sunlight.
G'Day Dante
The choice is yours.The entire Flex 4K NDI range offers full support for Dante input and output via the 3.5mm audio jack, or the HDMI input on Flex IN and Flex BACKPACK. Flip Dante out of the NDI stream or embed Dante into the NDI stream. The choice is yours.
100% Recyclable packaging.Each element of Flex’s packaging is 100% recyclable and BirdDog use soy-based ink to further reduce their foot print. There are no printed manuals, you can download the most up to date version at any time from the official BirdDog website.
Halo Tally. It just works.
no complex setup processFlex's ground-breaking ‘Halo Tally’ system is built right into the Flex Family and needs no complex configuration once connected to any NDI enabled, software based, production system. The ‘Halo Tally’ was designed to be seen by the camera operators as well as the on-air talent.
variable bit rate codecFull NDI is a variable bit rate codec. Under regular circumstances, BirdDog recommends allowing for around 140Mbps in HD, or 6 streams per 1GbE cable with some headroom. Once in 4K, it’s recommended to allow around 300Mbps or 3 streams with some headroom to allow for any unforeseen spikes.

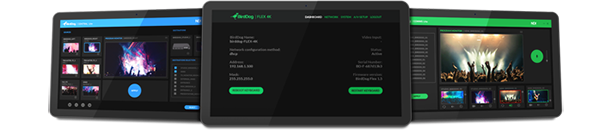

Free Software Tools!
DIY automation.Download the free BirdDog RESTful API and program your own automation for all BirdDog hardware endpoints, including cameras.
Central Lite.Flex 4K Family includes free Central Lite NDI Routing software. Team up Central Lite with any NDI source, including all BirdDog hardware capable of creating NDI sources.
Comms Lite.Flex 4K Family includes free Comms Lite, your free Audio Intercom solution. With support for four BirdDog devices, plus a director, Comms Lite is a great way to start using Audio Intercom in your live productions.
This. Is. Flex.
The Smallest 4K NDI on the Planet.
The Tech Spec
| Features | Specification | Supported Video Format | (UHD) 2160p 25, 29.97, 30 (HD) 1080p 25, 29.97, 30, 50, 59.94, 60 (HD) 1080i 50, 59.97 (HD) 720p 50, 59.94, 60 |
|---|---|
| Video I/O Connectivity | HDMI 2.0 Input (Flex IN, Flex BACKPACK) |
| Audio Input | HDMI: 2Ch, 48kHz 3.5mm AUDIO: Microphone/line input |
| Audio Output | HDMI: 2Ch, 48kHz 3.5mm AUDIO: Stereo Headphone/line output |
| Video Codec Support | NDI (Full bandwidth i-frame compression) |
| Tally | Integrated Tricolour Halo Tally |
| PTZ Control | 2.5mm 4-pole RS232 (VISCA) |
| Network Connectivity | Ethernet RJ45 1000baseT w/integrated PoE (Power over Ethernet) Embedded Web Configuration Panel |
| Weights & Dimensions | Size: 107×63×42.5mm Weight: 150g |
| Power | DC Input: DC 12v (30w max) PoE (Power over Ethernet): PoE+ 802.3at DC Output: DC 12v (15w max) via DC out connector or NP Style battery output (BACKPACK ONLY) |
