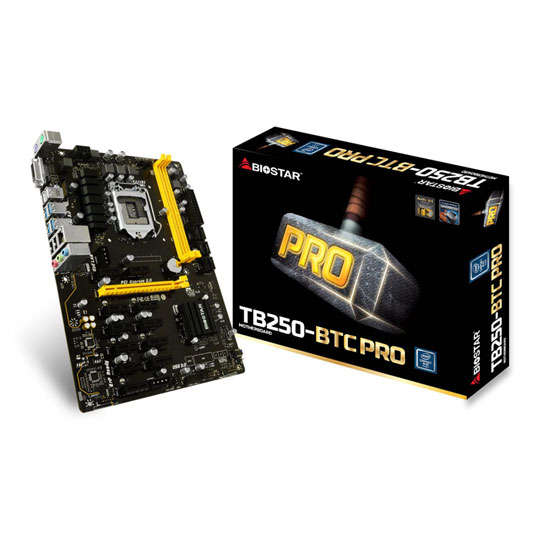

Biostar Intel B250 TB250 BTC Pro Cryptocoin Mining ATX Motherboard

Biostar TB250-BTC Pro, Mining Intel B250, S 1151, DDR4, PCIe 3.0 x16 + 11x PCIe x1, SATA3, Realtek GbE, USB 3.0, ATX

Biostar
Scan code: LN82386 Manufacturer code: TB250-BTC Pro Request call
£133.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 27th Sep 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Please Note: This Biostar TB250-BTC Pro Motherboard is Intented for Cryptocurrency Mining.

ULTRA PRO CRYPTO-MINING

Supreme Weapon Dawning for New Mining Revolution
The world's No.1 ultimate crypto mining motherboard, TB250-BTC PRO supporting up to 12 native PCI-e slots with 12 graphics cards, is officially out NOW and available on the worldwide market. Just mining NOW! BIOSTAR brings a whole new crypto mining revolution dawning for the mining market.

Saving up to US$200 in Your Pocket
The cost of a mining system is always such a thing that a miner cares about the most. Now BIOSTAR TB250-BTC PRO saves all professional miners' money efficiently and wisely! You can build up one crypto mining system with TB250-BTC PRO, loaded up to 12 GPUs to earn even much more profit than that of two systems with the setup of TB250-BTC and 6 GPUs respectively. That is, you may probably save a system cost around up to US$200 on the mining hardware and components. For example, the cost saving includes a CPU, a motherboard, a SSD, a memory card, and other PC peripherals. We do bring the best cost saving solution to all professional mining enthusiasts!

Time is Money!
Compared to two mining machines with TB250-BTC, one ultimate mining machine with TB250-BTC PRO efficiently boosts the mining performance up to 200% to maximize your profitability and makes you spend much less time getting the highest mining return. TB250-BTC PRO brings 2X faster mining speed to increase much higher hashrate and makes the mining performance most efficient; that is, you can get the best cost of return just in 79 days, which is compared to 97 days for the two sets of TB250-BTC mining machines. We do bring the most bang for a miner's buck and time is money. The more time you save; the more money you get!

Neat Slot Layout Design
BIOSTAR exclusively designs the awesome and neat layout of PCI-e slots, evenly equipped on the motherboard to prevent short circuit while mining. There is no more short-circuit issue to bother a professional miner for non-stop mining money stably.

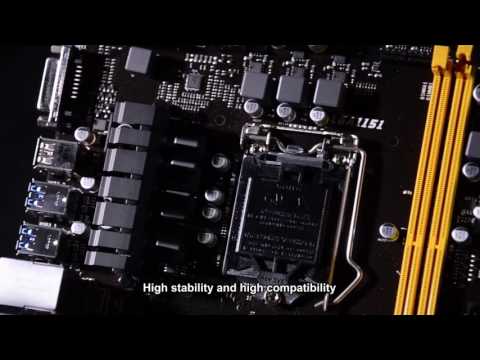

Native PCI-e for Best Compatibility
12 PCI-e slots of TB250-BTC PRO are thoroughly native PCI-e from the latest Intel B250 chipset. This feature is amazingly superior to some of the mining motherboards with PCI-e bridge solution to expand more slots for their so-called mining motherboards yet miners will get some incompatibility and low stability problems from that kind of mining mainboards. To top it off, BIOSTAR TB250-BTC PRO is equipped with the latest Intel B250 chipset yet others on the market are Intel H110 chipset.
BIOSTAR proudly brings such excellent mining user experience to mining enthusiasts. Why are native PCI-e slots so vital to GPU mining? Native PCI-e slots can make the GPUs operating with high stability, high compatibility, and high speed of PCI-e bandwidth. That's why we are so proud to be the first one to launch such kind of dedicated and powerful crypto mining motherboard TB250-BTC PRO onto the crypto mining market. We make a very robust mining base for every miner.

BIOSTAR TB250-BTC PRO
BIOSTAR TB250-BTC PRO uses Intel B250 chipset supporting native PCI-e up to 12 slots. Every slot has a dedicated channel itself that makes mining more smoothly.

Others
Other crypto mining motherboards use Intel H110 chipset only supporting 6 native PCI-e slots, and the other extra PCI-e slots are supported by PCI-e x1 extension chip, which makes the bandwidth limited and comes with much more mining performance problems just like low stability, low compatibility, low speed of bandwidth, and so on.

Hybrid Graphics Card Support
There is no more stock problem out there for those professional miners who are desperately looking for the hot-selling and high price performance crypto mining graphics card AMD RX 470. BIOSTAR TB250-BTC PRO compatibly supports the hybrid graphics card platform and now you can easily take the hybrid GPU setup, like 6 pieces of AMD RX 470 and 6 pieces of NVIDIA GTX 1060. Others are still waiting for the stock, yet you are mining to earn tons of money day and night. Time is all about money, money, and still money to an ultimate miner!

Audio+

HD Audio
Provides high quality sound with minimal loss of audio fidelity.

Video+

DVI
DVI is better than VGA for LCD displays since it is digital while VGA is analog. For LCD displays, the picture is digitized pixel per pixel. Through DVI, the panel gets data for each pixel, so the picture generated in the Graphics device matches the pixels on the panel itself.

DX12
DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware.

Speed+

USB 3.0
Experience Fastest data transfers at 5 Gbps with USB 3.0--the new latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10X faster and backward compatible with previous USB 2.0 components.

Durable+

Moistureproof PCB
The popularity of PC usage and working environment is getting deteriorating and moist(rural, coastal, etc.). The PCB will be oxidizing easily by damp or absorbed moisture, and ionic migration or CAF (Conductive Anodic Filament) will be generated. Moisture-proof PCB meets high density and high reliability requirements for moisture proof.

Low RdsOn P-Pak MOS
Low resistance design can significantly reduce the current out of energy loss.Low temperature, small size, excellent thermal conductivity.

Protection+

Super Anti-Surge Protection
BIOSTAR exclusive Anti-Surge design provides the best protection of board and extends the product life. Having the latest model of "Transient Voltage Suppressor" on- board can effectively protect the board circuit, reducing the shocks caused by ESD as well as other damages arising from overvoltage transients to enhance system durability.

Super LAN Surge Protection
Super LAN Surge Protection, providing LAN port with more advanced antistatic protection capabilities by adding an integrated chip to strengthen electrical stability and prevent damage from lightning strikes and electrical surges. SLSP (Super LAN Surge Protection) series motherboard upgrades the existing system protection standards with maximum 4X protection comparing to other board makers.

ESD Protection
ESD (Electrostatic Discharge) is the major factor to destroy PC by electrical overstress(EOS) condition, ESD occurred by PC users when touch any devices connect to PC, which may result in damage to motherboard or parts. ESD protection is designed to protect the motherboard and equipment from damage by EOS

OC / OV / OH Protection
All BIOSTAR special circuit design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect your system. Over current protection, avoid motherboard from damage when doing overclock or an unusual current import. Over heat protection, avoid motherboard & CPU from burning when exceeding the temperature limitation.

DIY+

Header Zone
Users can easily assemble their own computer, a simple-swap data discs and other accessories.

Bitcoin Mining
BIOSTAR offers a perfect choice for "Bitcoin Mining" with more PCI-E slots for users who wish to create a dedicated mining machine and getting a value oriented motherboard that can load up graphic cards is the ideal strategy.

CPU-Chipset Features

Intel B250 chipset
Give your small business a boost with the Intel® B250 Chipset and the 7th Generation Intel® Core™ processor. The Intel B250 chipset provides you with the power and performance you need for your small business. Features • Intel LGA 1151 CPU
• 2 x DIMM DDR4-2400 Slots
• SATA3 Connectors
• 1 x PCI-E x16 3.0 Slot
• 2 x PCI-E 12V 4Pin Connectors
• 11 x PCI-E x1 3.0 Slots
• 7.1ch HD Audio
• Super LAN Surge Protection
• SATA Power Connector
Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel B250
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
Max. Memory Capacity 32GB (2x16GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support Not Supported
On-Board Graphics Connectors DVI-D
Internal Connectivity
Expansion Slots
  • 11 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via Not Supported
Storage Mode Support Intel Rapid Storage Technology Support
Internal I/O
  • 2 x 4-pin Molex for PCIe (Power)
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 6 x SATA III - 6Gb/s
  • 1 x SATA Power Connector
  • 1 x Serial (COM) Header
  • 2 x System Fan header
  • 2 x USB 2.0 Header
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x DVI-D
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x RJ-45
  • 2 x USB 2.0
  • 2 x USB 2.0 (5V, 1.5A Max)
  • 4 x USB 3.0
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
