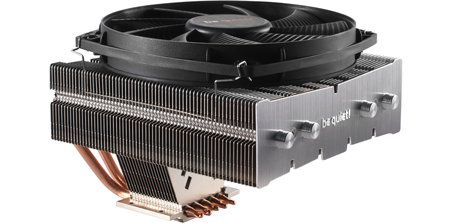

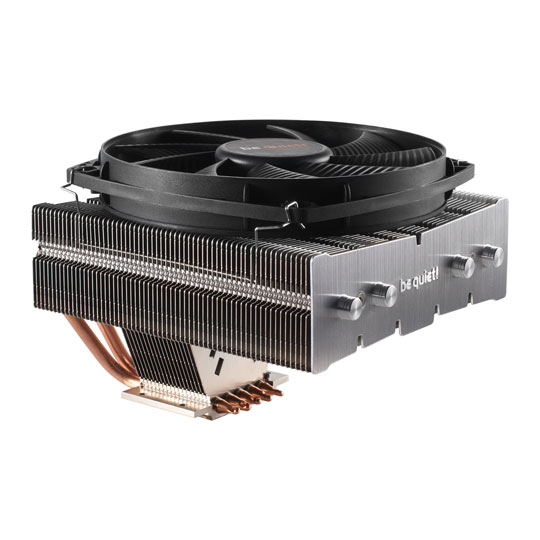

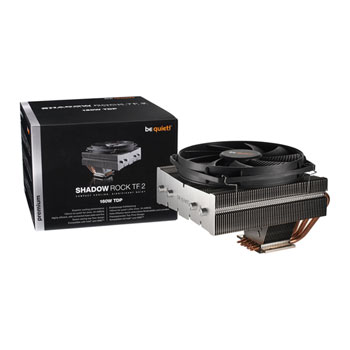

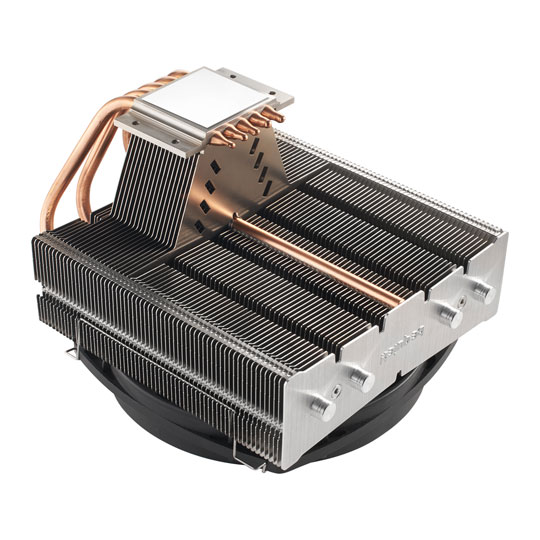

be quiet Shadow Rock Top Flow TF 2 Compact Intel/AMD Cooler

be quiet! Shadow Rock TF 2, Top Flow Single Tower CPU Cooler, 5 Heatpipes, 135mm PWM Fan, Al/Cu, 160W TDP, AM4/2066

be quiet!
Scan code: LN81851 Manufacturer code: BK003 Request call
£49.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Entry Level
Delivery options £5.48 By DPD On 24th Oct 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Compact Cooling, Significant Quiet
Shadow Rock TF 2 is the perfect cooler for systems that are restricted in terms of space. It doesn’t just cool the CPU, but also other components near to the socket. Thanks to the top-flow construction and the fact that the baseplate and the cooling fins are directly connected the cooler transfers heat super-fast and generates better cooling efficiency.

If you seek the best possible mix of performance and price in the premium compact CPU cooler segment, your search is over. Shadow Rock TF 2 simply has to be your choice. Features Very high cooling performance
• Impressive compact cooling capacity of 160W TDP.

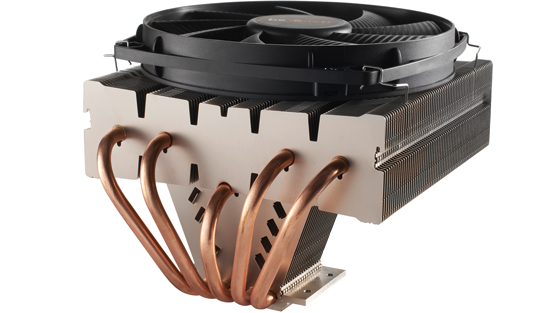

• Five high-performance 6mm heat pipes that carry heat straight to the optimal locations on the cooling fins.

Extremely Low-Noise Operation
• A silence-optimized 135mm be quiet! fan supports the best balance between cooling performance and quietness.
• The fan provides a smooth operation thanks to its nine airflow-optimized fan blades and durable rifle-bearing technology.
• Even at 100% fan speed, overall noise is merely 24.4dB(A).

Highly Compatible, Highly Functional Design

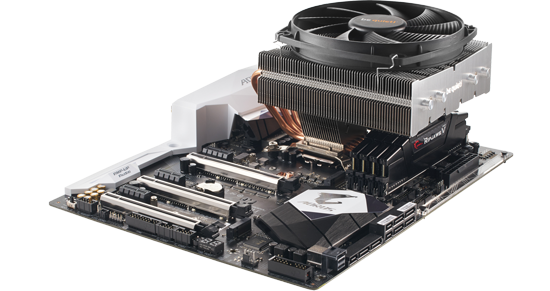

• Space-saving top-flow design allows the cooler to fit into cases with limited installation space.

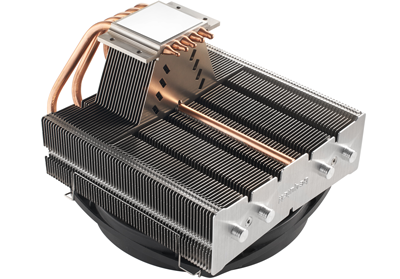

• Small, diagonally arranged fins direct the airflow in a way that ensures perfect cooling for the CPU as well as components around the socket.

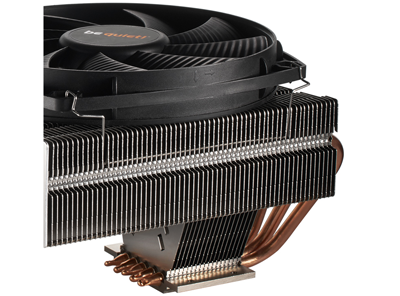

• Direct connection of the baseplate and the cooling fins ensures fast heat transfer and optimum cooling efficiency.

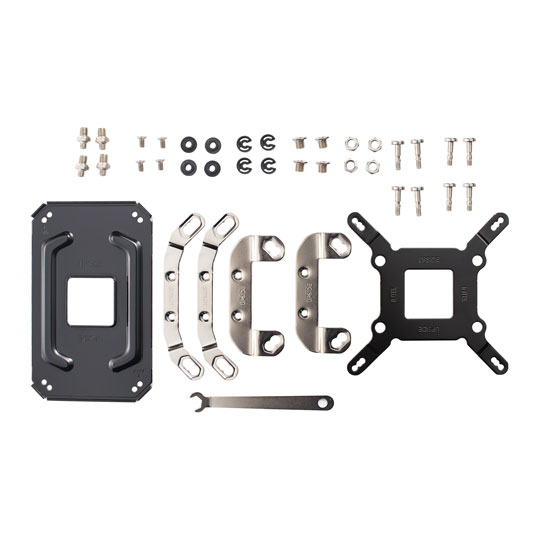

• Compatibility with Intel® and AMD™ sockets

Product conception, design and quality control in Germany
• 3-year manufacturer’s warranty.
• High-quality aluminum heat pipe caps.
Specifications
Cooler Specifications
Edition Shadow Rock TF 2
Cooler Form Factor Top Flow Single Tower
Heatpipes 5
Cooler Features
  • Aluminium Fins
  • Aluminium Heatpipe Caps
  • Copper Heatpipes
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 2011 (Square ILM)
  • 2011-3 (Square ILM)
  • 2066
  • 775
  • AM2
  • AM2+
  • AM3
  • AM3+
  • AM4
  • FM1
  • FM2
  • FM2+
Max. Cooling Capacity 160W
Fan Specifications
Included Fan Configuaration 1 x 135mm
Fan Edition SilentWings
PWM Fan Yes
Fan Bearing Type Rifle Bearing
Fan Colour Black
LED Lighting Colour N/A
Fan Connectors 1 x 4-pin
Approx Fan Speed 1400 rpm
Adjustable Fan Speed Controller No
Fan Airflow 67.8 CFM
Air Pressure 2.1 mm H2O
Sound Level (dB) 11.9 - 24.4 dB
Sound Level (Sone)
Materials
Fan Material Plastic
Heatsink Material Aluminium / Copper
Dimensions & Weight
Fan Dimensions 135 x 135 x 22 mm
Heatsink Dimensions 137 x 165 x 87 mm (WxHxD)
Total Dimensions 137 x 165 x 112 mm (WxHxD)
Weight 680 g
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
be quiet!
