be quiet Shadow Rock TopFlow SR1 Intel/AMD CPU Air Cooler - BK012
Delivery
DPD £5.48 Delivered by DPD Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout
End of Life

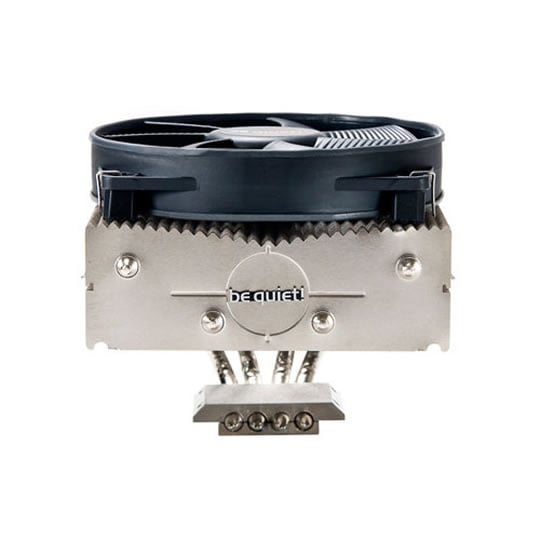

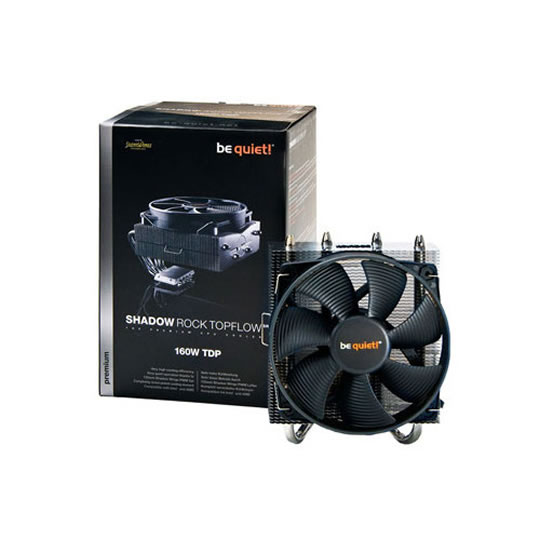

be quiet Shadow Rock TopFlow SR1 Intel/AMD CPU Air Cooler

BK012 - be quiet! Shadow Rock SR1, Top Flow Single Tower CPU Cooler, 4 Heatpipes, 1x135mm PWM Fan, 160W TDP, for Intel/AMD CPUs

Scan Code: LN43617

Manufacturer Code: BK012

Customer Reviews and Q&A

HEXUS Review HEXUS is a premier website in the IT community and its unbiased, comprehensive and thorough reviews bring exceptional credibility. Read review.
Finance
Scan Finance

Buy Now Pay Later - After a 10% deposit pay nothing for 9 months.

PayBreak

Spend between £100 and £1000 and get the goods before you pay.

BK012 - be quiet! Shadow Rock SR1, Top Flow Single Tower CPU Cooler, 4 Heatpipes, 1x135mm PWM Fan, 160W TDP, for Intel/AMD CPUs

be quiet Shadow Rock TopFlow SR1 Intel/AMD CPU Air Coolerbe quiet Shadow Rock TopFlow SR1 Intel/AMD CPU Air Cooler
be quiet Shadow Rock TopFlow SR1 Intel/AMD CPU Air Cooler
Product Overview
Shadow Rock TopFlow is a low profile CPU cooler with high cooling performance of up to 160W TDP and very quiet operation.

Four wide 8mm heatpipes enable the high heat transference of the space saving cooler. be quiet!’s oversized 135mm Shadow Wing PWM-fan provides the CPU plus surrounding components with plenty of cool air with minimal noise.

Even at high fan speed, the Shadow Rock TopFlow guarantees a low noise of a mere 23.5 dB(A) and a high life span of 200,000 hours. The cooler supports all modern sockets of AMD and Intel and comes with a versatile mounting system.

Compatible with:
• Intel: LGA 2011 / 775 / 1155 / 1156 / 1366 / 1150 / 1151
• AMD: AM2(+) , AM3(+) / 754 / 939 / 940 / FM1 / FM2
Features
Extra quiet operation through be quiet! fan using SilentWings technology
The decoupled 135mm Shadow Wings PWM fan ensures a perfect mix of cooling power and noise production. The waveshaped contour on the cooling fins minimises noise and optimises the air flow.

Very high cooling efficiency
Four 8mm heatpipes transport the heat along the shortest path to the optimal point within the cooling fins. The TopFlow Cooler-Layout enables ideal cooling not only for the CPU but also for surrounding components.

Space-saving mounting
Perfect for use in desktop housing thanks to the low height of the cooler.

High-quality materials
Complete nickel-plated cooling element. Stable backplate for a shock-proof sit, even when the computer is being transported.
Technical Specification
General
Manufacturer:
be quiet!
Edition:
Shadow Rock SR1
Cooler Form Factor:
Top Flow Single Tower
Heatpipes:
4
Cooler Features:

Socket Compatibility:
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 2011
  • 754
  • 775
  • 939
  • 940
  • AM2
  • AM2+
  • AM3
  • AM3+
  • AM3/AM2+/AM2
  • FM1
  • FM2
Included Fan Configuaration:
  • 1 x 135mm
Fan Edition:
Shadow Wings PWM
PWM Fan:
Yes
Fan Bearing Type:

Fan Colour:
Black
LED Lighting Colour:
N/A
Fan Connectors:
  • 1 x 4-pin
Approx Fan Speed:
1500 rpm
Adjustable Fan Speed Controller:
Yes
Fan Airflow:
66.8 ~ 113.6 CFM
Air Pressure:

Sound Level (dB):
9.6 ~ 24.4 dB
Sound Level (Sone):

Max. Recommended TDP:

Max. Cooling Capacity:
160W
Fan Material:
Plastic
Heatsink Material:
Aluminium / Nickel Plated / Copper
Fan Dimensions:
135 x 135 x 25 mm
Heatsink Dimensions:
137 x 171 x 100 mm (WxHxD)
Total Dimensions:

Weight:

Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
36 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
36 months
