Scan code: LN89119 Manufacturer code: BK022

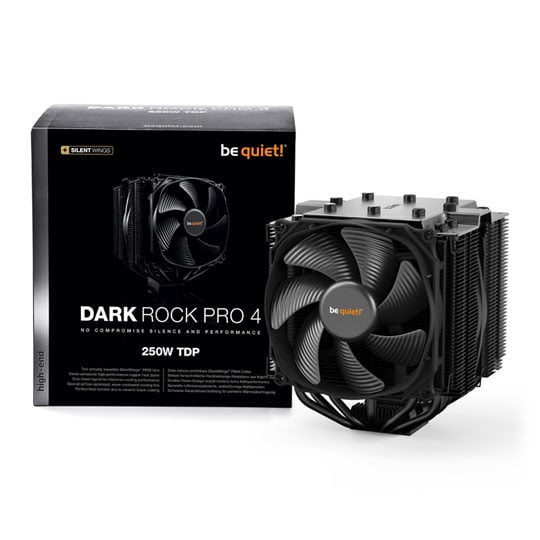

be quiet Dark Rock PRO 4 250W Intel/AMD Air CPU Cooler

be quiet! Dark Rock PRO 4 Dual Tower CPU Cooler, 7 Heatpipes, 120mm+135mm Silent Wings PWM Fans, Al/Cu, 250W TDP

Thumbnail 1 : be quiet Dark Rock PRO 4 250W Intel/AMD Air CPU Cooler Thumbnail 2 : be quiet Dark Rock PRO 4 250W Intel/AMD Air CPU Cooler Thumbnail 3 : be quiet Dark Rock PRO 4 250W Intel/AMD Air CPU Cooler Thumbnail 4 : be quiet Dark Rock PRO 4 250W Intel/AMD Air CPU Cooler be quiet Dark Rock PRO 4 250W Intel/AMD Air CPU Cooler : video thumbnail 1 be quiet Dark Rock PRO 4 250W Intel/AMD Air CPU Cooler : video thumbnail 2 be quiet Dark Rock PRO 4 250W Intel/AMD Air CPU Cooler : video thumbnail 3
Scan code: LN89119 Manufacturer code: BK022
£72.38Item overdue since 30 August 2019
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

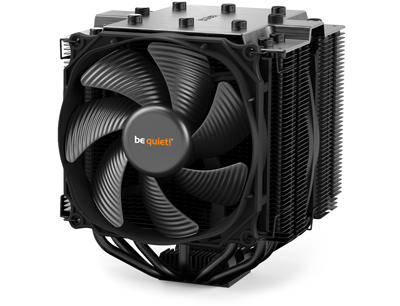

Dark Rock PRO 4 Dual Tower Air CPU Cooler by be quiet!

Dark Rock PRO 4 Dual Tower CPU Cooler

NO COMPROMISE SILENCE AND PERFORMANCE The Dark Rock PRO 4 Air CPU cooler from be quiet! delivers an extreme cooling performance of 250W TDP and virtually inaudible operation, absolutely perfect for overclocked systems and demanding workstations. Includes a Silent Wings 135mm PWM fan and Silent Wings 3 120mm PWM fan, featuring advanced fluid-dynamic bearings and a smooth 6-pole motors. The front Silent Wings 3 fan provides extremely high air pressure, thanks to a funnel-shaped air inlet in the frame. Decoupled fan mounting with vibration-isolating elements on the heat sink. Achieving only 24.3dB(A) at maximum fan speed and supports an additional 120mm fan, which the clips are included in scope of delivery. The black installation kit can be mounted from above and the Dark Rock 4 features seven high-performance copper heat pipes and airflow-optimized, wave-contoured cooling fins. Guarantees perfect heat transfer due to the ceramic black coating and the style is elegant, with a brushed aluminium top cover with diamond cut finish while the wave-contoured cooling fins deliver increased air circulation.

Intel LGA115X / 1366 / 2011 / 2011-3 / 2066

AMD SocketsAM2 / AM2+ / AM3 / AM3+ / AM4 / FM1 / FM2 / FM2+

120mm + 135mmRadiator Size

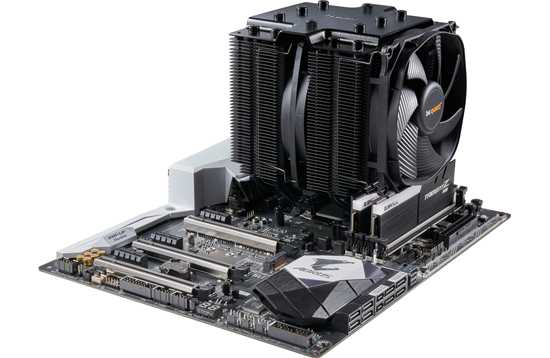

Superior Cooling Power

cooling power

Achieving an incredible performance-to-noise ratio The Dark Rock Pro 4 doesn’t compromise on silence and performance for overclocked systems and demanding graphics applications, this cooler provides an impressive rating of 250W TDP and accomplishes low temperatures even through episodes of top CPU performance.

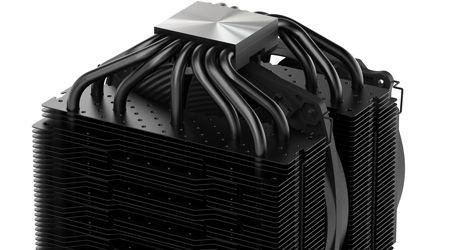

A Highly Advanced Design

design

The core features that result in high-end cooling Dark Rock Pro 4 is armed with seven advanced technology 6mm copper heat pipes that maximize the heat conductance. Airflow-optimized, wave-contoured cooling fins with small dots on their surfaces increase the air circulation. The special black coating with ceramic particles makes a perfect transfer of heat possible.

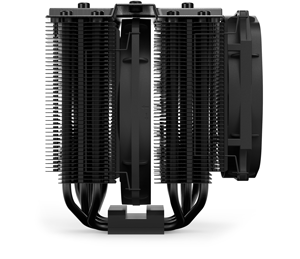

Innovative Double-Tower Layout

dual tower

Powerful cooling for your components Dark Rock Pro 4 includes two aluminium heat sinks and the cutouts provided enhance its RAM compatibility. Two fans come pre-installed and its also possible to add another 120mm fan for improved cooling.

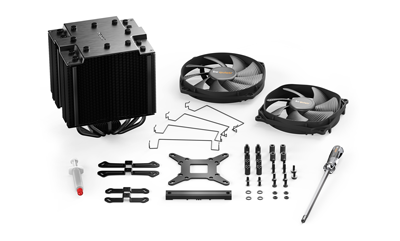

Stylish and Easy to Install

installation

USER-FRIENDLY ELEGANCE The mounting kit for the Dark Rock Pro 4 cooler is completely black, perfectly matching the black design of the cooler itself. You can conveniently install the cooler on the motherboard from above. The brushed aluminium top cover with its diamond cut finish adds a touch of elegance to this high-end cooler.

Specifications
Cooler Specifications
Edition Dark Rock PRO 4
Cooler Form Factor Dual Tower
Heatpipes 7
Cooler Features
  • Aluminium Fins
  • Aluminium Heatpipe Caps
  • Aluminium Top Cover
  • Copper Heatpipes
  • Special Black Coating w/ Ceramic Particles
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 2011 (Square ILM)
  • 2011-3 (Square ILM)
  • 2066
  • AM2
  • AM2+
  • AM3
  • AM3+
  • AM4
  • FM1
  • FM2
  • FM2+
Max. TDP
Fan Specifications
Included Fan Configuration
  • 1 x 120mm
  • 1 x 135mm
Fan Edition Silent Wings 3 PWM(Front)/ Silent Wings PWM(Inner)
PWM Fan Yes
Fan Bearing Type Fluid Dynamic Bearing
Fan Colour Black
LED Lighting N/A
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 1500 (Front), 1200 (Inner) rpm
Max. Fan Airflow
Max. Air Pressure
Max. Sound Level 12.8 - 24.3 dBA
Materials
Cooler Materials Aluminium / Copper
Included TIM (Thermal Interface Material) Included
Dimensions & Weight
Heatsink/Radiator Dimensions
Total Dimensions 136 x 146 x 163 mm (WxHxD)
Weight 1130 g
Additional Information
Scan Code LN89119
Model Number BK022
GTIN 4260052186268
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Loading Please Wait

Please wait . . .

TekSpek Guides
Intel Branding Part I
Intel Branding Part I
Date Issued: 1st Jul 2009

Intel’s been on a mission of late. That mission revolves around grouping and standardising key technologies under various banners that are designed to ensure hardware compatibility and consumer ease of use. We’ll take a closer look at three such technologies that fall under the headings of Centrino, Viiv, and vPro, respectively.

Read More

Intel Core 2 Duo (Conroe)
Intel Core 2 Duo (Conroe)
Date Issued: 20th Oct 2008

The purpose of this TekSpek is to delineate the publicly known features of Intel’s next generation desktop microarchitecture. Codenamed Conroe and officially titled Intel Core 2 Duo, it’s loosely based on the current mobile Yonah (Core Duo) underpinnings.

Read More

AMD AM2
AMD AM2
Date Issued: 20th Oct 2008

The purpose This TekSpek quickly and easily explains AMD’s new processor socket and related technology to the reader, comparing it to AMD’s previous socket types.

Read More

AMD 64 Processors
AMD 64 Processors
Date Issued: 20th Oct 2008

This TekSpek explains what AMD’s AMD64 CPU instruction set architecture (ISA) is, shows what CPUs implement it from both AMD and Intel, and explains what software is available to run on those 64-bit consumer processors.

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Overclocking
Overclocking
Date Issued: 20th Oct 2008

This TekSpek explains why you’d want to overclock your graphics board, the risks in doing so and how you can go about doing it.

Read More

Core 2
Core 2
Date Issued: 14th Jun 2008

There’s been a lot of hype about Intel’s Core 2 recently, even since they launched Core in fact. Words like Conroe, Badaxe and Allendale have been flying around. The bottom line is that Core 2 is the name of Intel’s latest line of CPUs, based on a new micro-architecture, designed for speed and efficiency.

Read More

System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

Reviews
be quiet! Dark Rock PRO 4 Dual Tower CPU Cooler, 7 Heatpipes, 120mm+135mm Silent Wings PWM Fans, Al/Cu, 250W TDP is rated 4.0 out of 5 by 2.
Rated 4 out of 5 by from Almost perfect. Does a fantastic job taming my 9900K which can be quite a toasty chip! It's easily the quietest cooler I've used! My Cryorig R1 Ultimate is much louder! Even under full load in a stress test this thing is whisper quiet. Temperatures in Linpack Extreme [30GB RAM stress level with RAM running at 3200 16-18-18-36 1.35V] maxed out at 94C but averaged about 87-88C. It's called Extreme for a reason as it puts insane and unrealistic loads on your CPU. Very few, if any, stress programs will put this much load on your CPU. This is the absolute worst case scenario! With IntelBurnTest [Maximum stress level] it maxed out at 74C! This just goes to show how insane Linpack really is. IntelBurnTest is a bit more forgiving but still an unrealistic load. During games I am anywhere between 40-60C. Usually 40-50C but it can hit 60-ish sometimes. The reason I have only gave it 4 out of 5 stars is because it's so awkward to install. I have read that this is actually an improvement over the previous version lol. Here is what makes it awkward and how they could improve it (there is TL;DR at the bottom): 1) Mounting arm is not attached to the base plate so you need to sit the cooler on the CPU and line up the mounting arm with the screw holes on the bracket. To improve it they could just attach the arm to the base plate so you're not messing around with it. At the least they could change the little notches on the arm so it easily aligns. Oh and you need to try do this without moving the cooler which will slide about because of the thermal paste! 2) It took a few tries getting the screws into the mounting arm/bracket because the screw kept falling off. Maybe my hands are just too big but I couldn't really use them to get the screw to sit in the hole. If the screws were held in place on the arm with a spring it would it so much easier. 3) Attaching the fan is awkward!!! This was actually the hardest part believe it or not. One fan is already attached but you need to attach the second one because it sits over the mountain arm and screws. Sliding the fan in between the two metal fin stacks was easy but getting the hooks on them was difficult. I could get the bottom side done but getting the top one was a nightmare. I ended up having to remove my entire motherboard from the case just to get the fan on! If the hooks were easier to get in and had a bit more flexibility it would seriously improve installation. TL;DR - don't try install this cooler with your motherboard in the case. It was a nightmare. The easiest way to install it is removing the motherboard so you have a lot of space because it is just way too awkward to do inside a case. The fact that I have to do this is just a huge hassle. Thankfully once it's on you really shouldn't need to take it off for a long time. All I can say is that I dread when the time comes to clean out my PC and I have to remove this thing. In fact I probably won't even bother. If anyone from Be Quiet is reading this please make a revision. It's just some small simple changes that would make the cooler perfect. If you want to know how to make a cooler with good installation then take a look at the Cryorig R1 Ultimate. It's a breeze to install that. The Dark Rock Pro 4 performs much better and is quieter but is a nightmare to install.
Date published: 2019-08-12
Rated 4 out of 5 by from Recommended with one HUGE reservation The Dark Rock Pro Dual Tower CPU Cooler is good looking and efficient, my BIOS reports CPU temperature as <40 degrees Celcius. It is acceptably straight forward to fit and it does the job. THE RESERVATION It is ENORMOUS; and I wanted to fit RGB Memory. In its standard configuration the cooler may cover Memory slots on the Motherboard, in my case two. To fit the RGB {deeper} memory modules I had to reverse the rear case fan and the cooler's fans and add extra exhaust Fans to the top of the case -- the cooler still covers one slot, even so. However: my solution works, everything stays cool and the computer works.
Date published: 2019-04-30
  • y_2019, m_9, d_14, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_89119, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

RAM Compatibility

I apologise in advance, I can&rsquo;t find dimensions. Aorus gaming 7 motherboard Corsair Vengeance RGB LED 16GB DDR4 2666 Memory Kit 2x8GB I want to ensure the RAM will fit under this fan with no major issues. Many thanks
Asked by: Zorodek
Zorodek, Only if your Memory Slots are 85mm or more from the CENTRE of your CPU. If they are not, you will need to carry out extensive Case/Cooler modifications. {I had to do so.} Even after modifications; RGB Memory will only just fit UNDER the outside EDGE of the Pro 4 Dual Tower Heat Sink/Fans with a couple of millimetres to spare. It will not fit under the main body of the heatsink.
Answered by: B16EM
Date published: 2019-06-29
