AVID Mbox Studio USB Audio Interface

Product Overview The AVID MBOX Studio brings professional recording power to your personal studio. Powered by Pro Tools Studio, this USB audio interface offers everything you need to make music and more. From getting inspired and composing ideas to recording, monitoring, and mixing the next big hit, its intuitive design brings pure creative power to your fingertips, allowing more time for fun.

MBOX Studio is designed using only the highest quality components, preamps, and audio converters in its class, allowing you to capture and mix up to 24-bit, 192 kHz audio from input to output. Variable Z opens up a whole range of tonal options. With built-in real-time EQ, delay, and reverb, plus independent cue mixing, you can deliver your best performances with low-latency tracking. Features Features Specifications
System requirements Avid-qualified USB-equipped Mac or Windows-based computer
Simultaneous I/O 21 x 22
Audio resolution 24-bit, 44.1/48 kHz 21 x 22; 24-bit, 88.2/96 kHz 17 x 18; 24-bit, 176.4/192 kHz 8 x 10
Built-in DSP Avid FX—EQ, Delay, Reverb, Tuner
Mic preamps 4
Phantom power +48V switch
Form factor Desktop interface
Dimensions (H x W x D) 4.1 x 11.3 x 8.9 inches (105.2 x 288 x 225.3 mm)
Weight 6.1 lbs (2.8 kg)
Computer connectivity USB-C 2.0 (includes USB-A adapter)

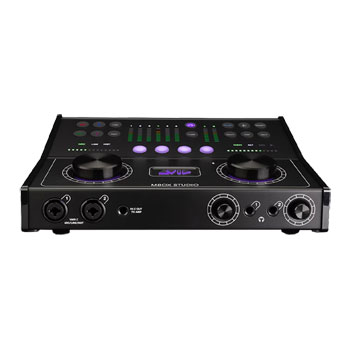

Analogue inputs 2 combo mic/line/instrument inputs with Variable Z (impedance) on the front panel (inputs 1–2)

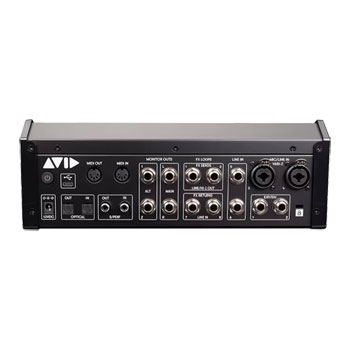

2 combo mic/line inputs with Variable Z on the back panel (inputs 3–4)
4 line inputs (inputs 7–8 shared with FX Returns; can also be used to connect four dynamic mics, which don't require phantom power)
Analogue outputs 2 stereo monitor outputs (Main and Alt)
2 headphone outputs
2 Hi-Z switchable FX Loops Sends
1 Hi-Z out to amp (mirrors FX Send 2)
Digital inputs 1 Optical input (8 channels of ADAT or 2 channels S/PDIF)
1 coaxial S/PDIF input
Digital outputs 1 Optical output (8 channels of ADAT or 2 channels S/PDIF)
1 coaxial S/PDIF output
Other I/O MIDI I/O
2 footswitch/expression pedal inputs
Mic preamps Max Input Level: 14 dBu
Gain Range: 60 dB
Dynamic Range: 112 dB
THD+N: 0.001%
EIN: -129 dB (A-weighted)
Frequency Response: 20 Hz–20 kHz, ±0.125 dB
Line inputs Max Input Level: 14 dBu
Gain Range: 60 dB
Dynamic Range: 112 dB
THD+N: 0.001%
Frequency Response: 20 Hz–20 kHz, ±0.125 dB
Instrument inputs Max Input Level: 14 dBu
Gain Range: 60 dB
Dynamic Range: 108 dB
THD+N: 0.004%
Frequency Response: 20 Hz–20 kHz, ±0.125 dB
Line outputs Max Output: 19 dBu
Dynamic Range: 110 dB
THD+N: 0.002%
Frequency Response: 20 Hz–20 kHz, ±0.125 dB
Monitor outputs Max Output: 19 dBu
Dynamic Range: 110 dB
THD+N: 0.0012%
Frequency Response: 20 Hz–20 kHz, ±0.125 dB
Headphone outputs Dynamic Range: 102 dB
Frequency Response: 20 Hz–20 kHz, ±0.2 dB
Output Power: 120 mW > 32 Ohm
Hi-Z output (reamp) Dynamic Range: 103 dB
THD+N: 0.002%
Frequency Response: 20 Hz–20 kHz, ±0.3 dB
