Avago AFBR-710SMZ Broadcom 10GbE SFP+ Fiber Optic Transceiver
Scan code: LN146650
Manufacturer code: AFBR-710SMZ
End Of Life
Product Overview
• Avago 850nm VCSEL source and Transmitter Optical Subassembly technology.
• Avago PIN detector and Receiver Optical Subassembly technology.
• Typical power dissipation 600mW.
• Full digital diagnostic management interface.
• Avago SFP+ package design enables equipment EMI performance in high port density applications with margin to Class B limits.
Avago Broadcom Fiber Optic Transceiver
The Avago AFBR-709SMZ transceiver is part of a family of SFP+ products. This transceiver utilises Avago’s 850nm VCSEL and PIN Detector technology to provide an IEEE 10Gb Ethernet design compliant with the 10GBASE-SR and 10GBASE-SW standards. The AFBR-709SMZ transceiver is designed to enable 10Gb Ethernet equipment designs with very high port density based on the new electrical and mechanical specification enhancements to the well known SFP specifications developed by the SFF Committee. These specifications are referred to as SFP+ to recognise these enhancements to previous SFP specifications used for lower speed products. Avago Technologies is a an active participant in the SFF Committee specification development activities.
• Avago 850nm VCSEL source and Transmitter Optical Subassembly technology.
• Avago PIN detector and Receiver Optical Subassembly technology.
• Typical power dissipation 600mW.
• Full digital diagnostic management interface.
• Avago SFP+ package design enables equipment EMI performance in high port density applications with margin to Class B limits.

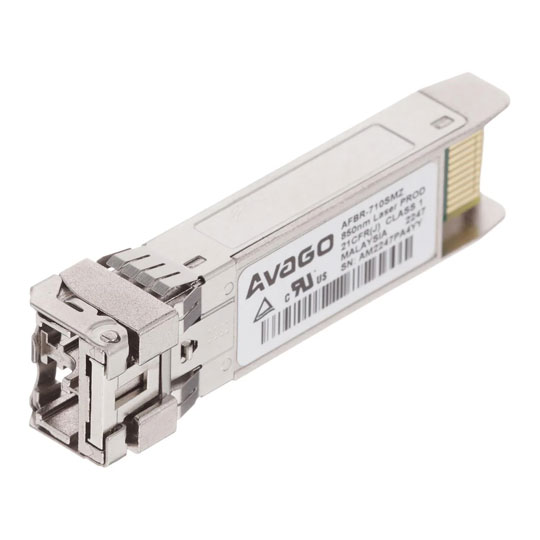

Avago AFBR-710SMZ Broadcom 10GbE SFP+ Fiber Optic Transceiver
![Avago AFBR-710SMZ Broadcom 10GbE SFP+ Fiber Optic Transceiver]()
