Autel - 'EVO Max 4T'
Reach New FrontiersThe EVO Max 4T is a new leader of Drone Intelligence, bringing powerful technologies and advanced autonomy to users. Featuring the all-new Autonomy Engine allowing assessment of complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance. Pairing together two Visual Cameras with a high-resolution Thermal Camera and Laser Rangefinder giving you an always mission ready payload. Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios. With a foldable, weather-resistant design, the EVO Max 4T is as portable as it is capable.
15s Take Off
8K 10x Optical Zoom
IP43 Weather Rating
Hot-Swappable Batteries
Navigation in GPS Denied Environments
12.4 Miles Transmission Range
42 mins Max. Flight Time
720° Obstacle Avoidance

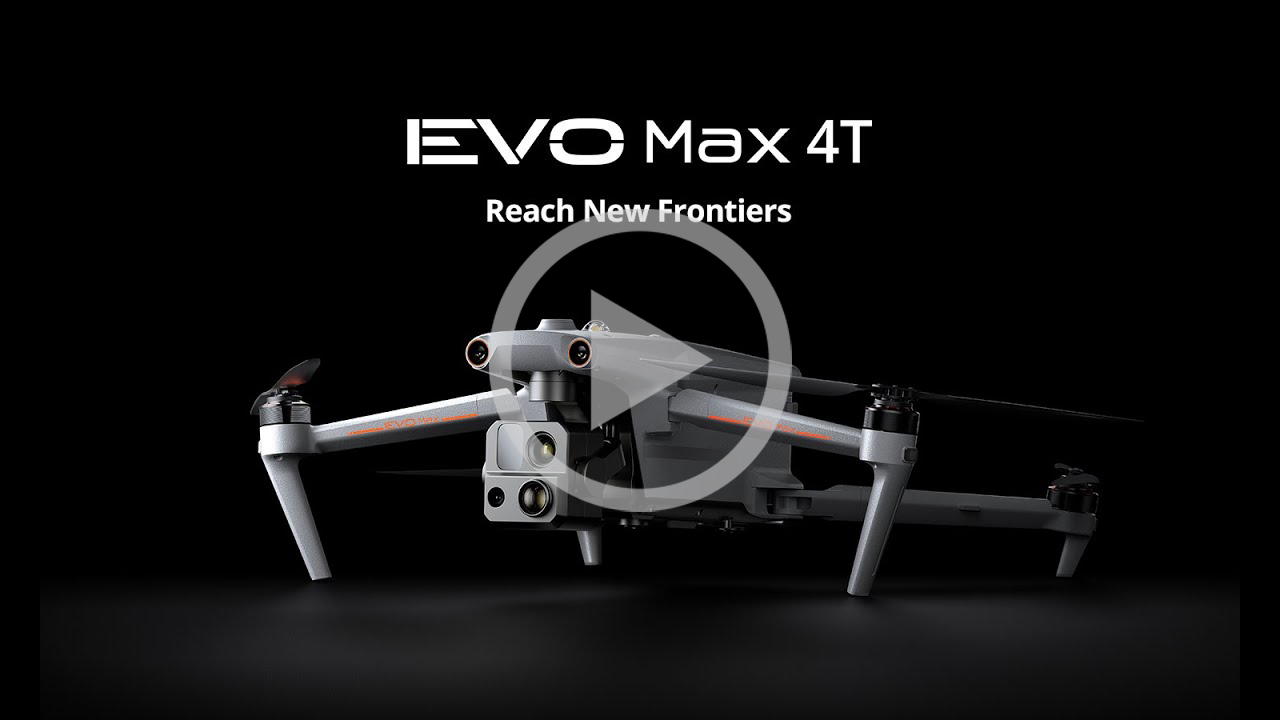

Introducing EVO Max 4T
Autel Autonomy Engine

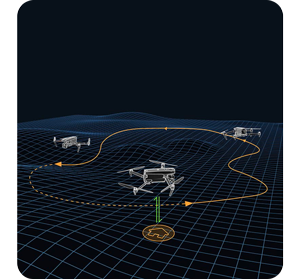

Autonomous Path FindingAutel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

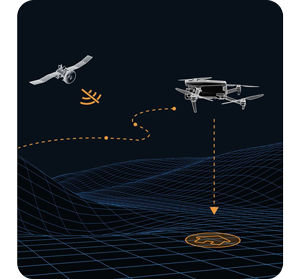

Navigation in GPS Denied EnvironmentAdvanced sensors allow the EVO Max 4T to navigate within hardened structures, underground, or in environments without GPS.

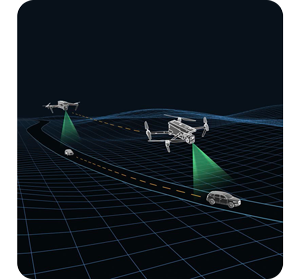

Accurate Object Identification and TrackingBased on Autel's AI recognition technology, the EVO Max 4T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.
No Blind Spots
Ultimate Obstacle AvoidanceEVO Max 4T is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.
*OA performance varies with drone speed, lighting, and flying conditions and
is not meant to replace pilot responsibility.

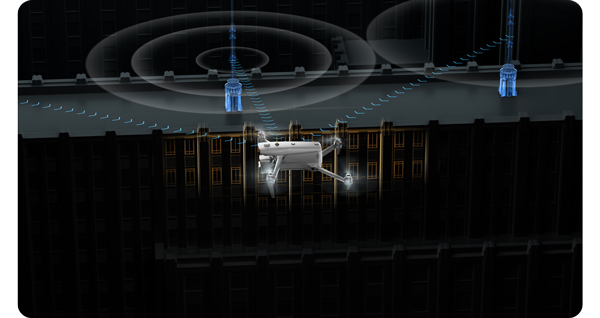

Advanced Anti Interference Technology
Anti Jam, Anti InterferenceThe EVO Max 4T uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4T to fly confidently near power lines, critical structures, and in complex areas.
42 Minute Flight Time
Platform CapabilityEVO Max 4T redefines portability with its powerful platform and all weather design.
42 minsMax. Flight Time
IPS43Weather Rating
23,000ftService Ceiling
12.4 milesImage Transmission Range
27 mph*Max. Wind Resistance
*Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
A-Mesh 1.0

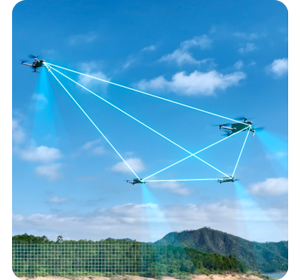

The Drone Industrys First Mesh Networking TechnologyEVO Max 4T features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.
Strong Anti-InterferenceThe EVO Max 4T can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.
Beyond-Line-of-Sight ApplicationsWith A-Mesh, multiple aircrafts in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.
Full-fleet ControlMultiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.
Enhanced RangeCommunication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.
SkyLink 3.0

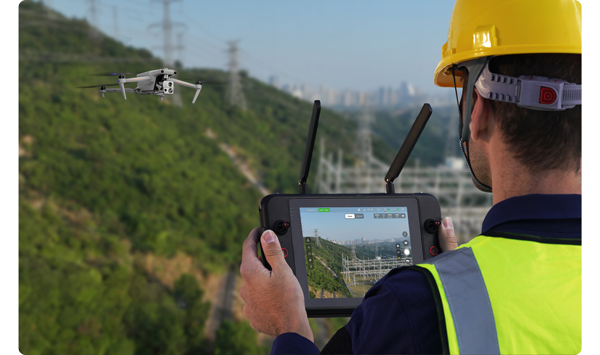

Autel SkyLink 3.0The EVO Max 4T SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption*, and optional 4G integration* to provide users with the most advanced flight capabilities ever in an EVO.
12.4 milesImage Transmission Distance
< 150msLatency
1080p/60fpsReal-Time Image Quality
900MHz/2.4GHz/5.2GHz/5.8GHz**Frequency Bands
*This feature will be available in a future update.
**5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.

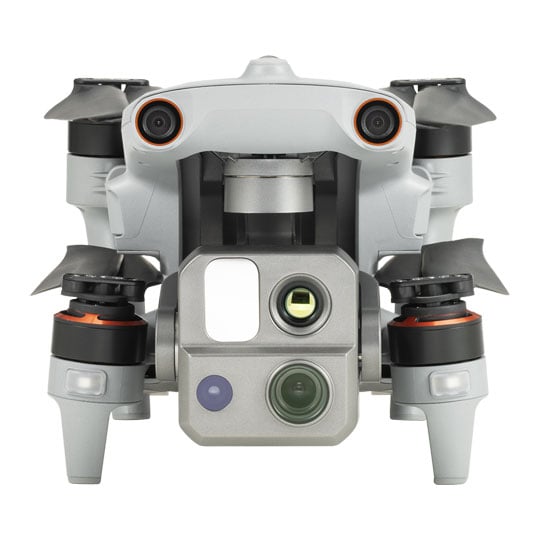

3 High Resolution Cameras, 1 Payload

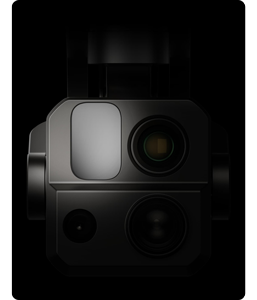

Mission Ready PayloadThe payload integrates wide-angle camera, zoom camera, thermal camera and a laser rangefinder for all data capture needs and critical decision making.

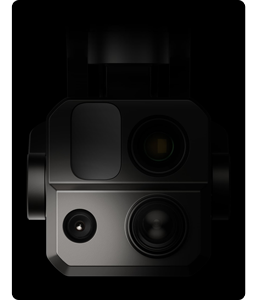

50MP | 1/1.28" CMOS | Aperture: f1.9 | DFVO: 85° | Equivalent: 23 mm

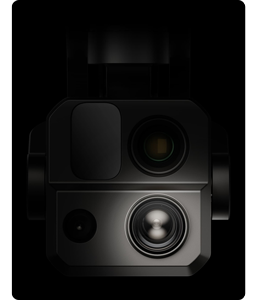

48MP | 8K 10x Optical Zoom | 160x Max. Hybrid Zoom | Aperture: f/2.8-f/4.8
640x512 | Aperture: 13mm | 16x Digital Zoom | Temperature Measurement | Range: -20°C to 550°C
Measuring Range: 5 - 1200m | Measurement Accuracy: +1m
Supports for 8K 10x optical zoom, and 160x Max. Hybrid Zoom with clear details on targets up to 1.24 miles away.
Moonlight Agorithm 2.0 boosts postprocessing anp allows the pilot to capture crisp, detailed images in low-light environments.
Video: support 4K 30fps, max ISO 64000.
Photo: Moonlight mode reduces noise and enhances HDR.
Equipped with 640*512 hightresolution thermal imaging camera, 30fps, and 16x digital zoom.
Tap a target to get the coordinates and altitude rapidly from up to 0.75 miles away.
Autel Enterprise App Platform

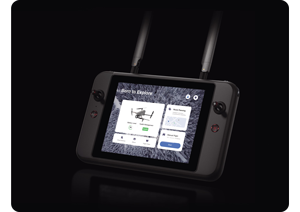

Built for industrial ApplicationsThe Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4T's mission capability.
Smart Features

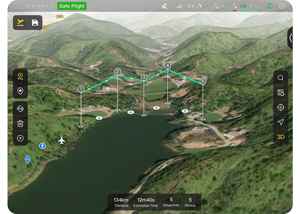

3D Map PlanningPlan, create, and execute 3D waypoint mission plan on a 3D map.

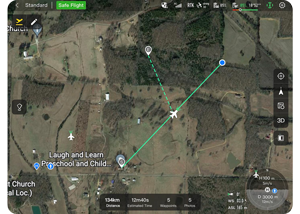

Quick Mission*Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.

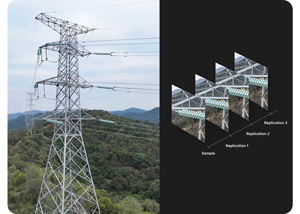

Mission Reproduction*With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max4T will automatically record the camera angles and replicate the mission you just flew.
9 Different Mission Types
Multiple Mission TypesThe Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.
*This feature will be available in a future update.

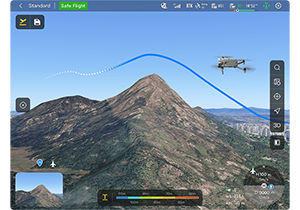

Terrain Follow*Maintain relatively constant altitude from the ground for uneven or sloped terrain.

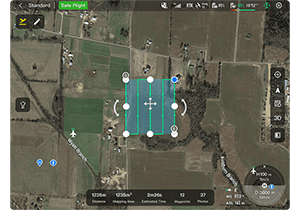

Rectangular MissionSupports one-click automatic generation of a rectangular flight area.

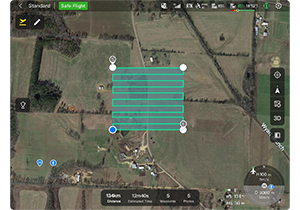

Automatic Mission Generation and Data Capture*Automatically produce routes by adding regional boundary points through dots or importing KML files.

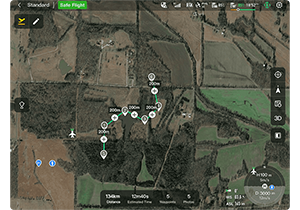

Waypoint MissionsUsers can add waypoints for flexible, non-structure flight paths.

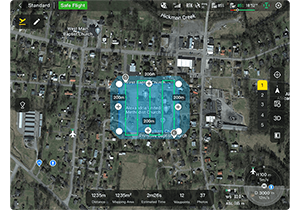

Oblique photographyAutomatically plan 5 groups of routes (1 ortho + 4 oblique) according to the flight area set by the user.

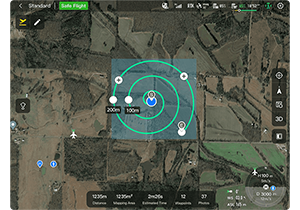

Spiral Mission*Supports helical flight search in a desigated area for SAR.

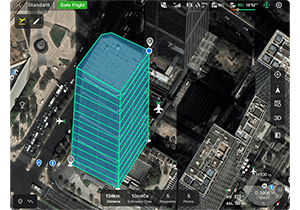

Vertical Scan*Perform vertical surveys for building facades, open pit walls and towers.

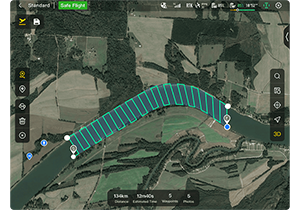

Corridor Mission*Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, powerlines and other narrow, large-scale terrain.

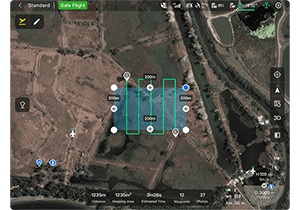

Polygon missionSupports one-click automatic generation of polygon flight areas.
Privacy Protection & Data Encryption
Data SecurityPrivacy Protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.
Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.
Enhanced Live-View

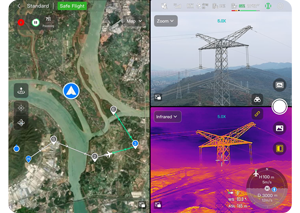

Multi-channel Projections Screen*Supports simultaneous output of RGB, infrared, night vision, and wide-angle images.
*This feature will be available in a future update.

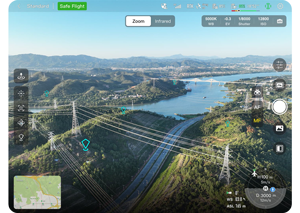

AR Scene*Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for users to confirm the drone's location and avoid airborne risks.
*This feature will be available in a future update.
Autel Open SDK
Autel SDKThe Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.
Mobile SDKOpen UX SDK (iOS & Android) can directly call up the ready-made interactive interface.
Payload SDK*Unified interface standards support access to third-party mounts such as micriophones and gas detectors.
Cloud SDK*Enables remote live broadcast and control of drones and nests through third-party platforms or web pages.
*This feature wil be available in a future update.
Drone Laws, Training and Limitations
Registration RequiredRegister via the CAA website. If you have already registered it is mandatory to attach your Operator ID to your UAS/Drone.
LimitationsCAA Limitation for all UAS/Drones flights in UK Airspace Max Operating Height 120m/400ft and Maximum Operating Distance of 500m/visual line of site.
Additional InformationFor more information about Drone Rules & Requirements please read HERE or contact Scan Pro Video for further information on Training Requirements.
