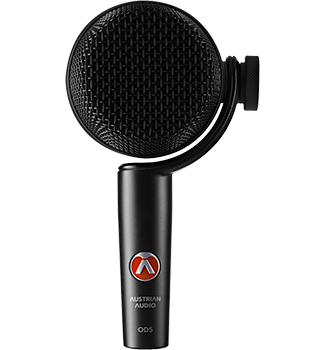

Austrian Audio - OD5 Active Dynamic Instrument Microphone

Austrian Audio - OD5 High Precision Cardioid Active Dynamic Instrument Microphone, 220° Swivle Joint, -10 dB pad

Thumbnail 1 : Austrian Audio - OD5 Active Dynamic Instrument Microphone Thumbnail 2 : Austrian Audio - OD5 Active Dynamic Instrument Microphone Thumbnail 3 : Austrian Audio - OD5 Active Dynamic Instrument Microphone Thumbnail 4 : Austrian Audio - OD5 Active Dynamic Instrument Microphone
Scan code: LN127835 Manufacturer code: AUA0040
£229.00Item due on 15 August 2022
Due 15th Aug
From £10.52 / month (APR 9.9%) or 0% for 4 months
Monthly Payment: £20.08
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £229.00
Total inc. interest: £240.92
Monthly Payment: £10.52
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £229.00
Total inc. interest: £252.26
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Active Dynamic Instrument Microphone
Austrian Audio - OD5

Austrian Audio OD5

Perfect performance. Everywhere.The Austrian Audio OD5 introduces an active-dynamic microphone designed for use on instruments. Handmade in Vienna and subject to the strictest quality assurance processes, the OD5 instrument microphone once again comes with some unique features in true Austrian Audio style.

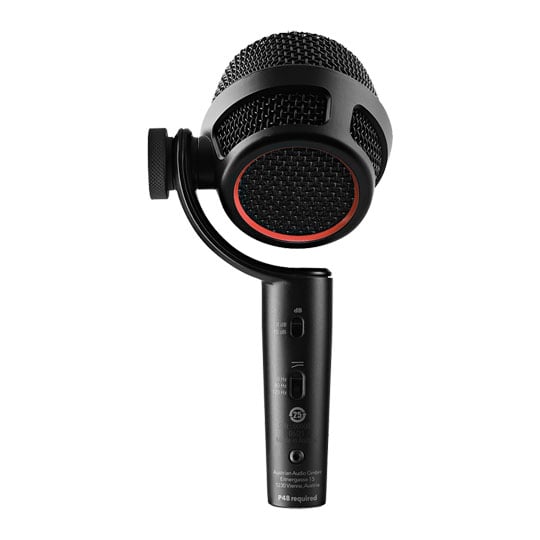

Most noticeable is the “Swivel Joint” mechanism. To simplify the positioning of the instrument microphone, Austrian Audio’s engineers have designed a suspension system for the microphone basket to allow for a 220° rotation of the field. This allows the microphone to be directly aligned to the sound source or according to personal sound preferences.

A feature recognised from the OD505 vocal microphone is the active-dynamic circuit. This ensures that even long cable runs have no negative impact on the signal. The active-dynamic design also allows the integration of a proper high-pass filter. As a very versatile instrument microphone, the OD5 will find many uses. Perfectly suited for use on various drums; a custom mount is available as an optional accessory; it works on guitar amplifiers too, as well as in front of wind instruments.

6.7 mV/PaSensitivity

20Hz - 18kHzFrequency Range

151 dBMax. SPL

Amazing Features • Active dynamic capsule ensures that even long cable runs have no negative effect on the signal
• Innovative Swivle Joint allows 220° rotation of the microphone basket
• Rugged die-cast body ideal for the most challenging live environments
• Switchable high pass filter 80 Hz (2nd order), 120 Hz (2nd order)
• High Precision Cardioid directional microphone
• -10 dB pad

Austrian Audio OD5 Active Dynamic Instrumental Microphone

The Tech Spec

Features Specification
Directional characteristic Cardioid
Sensitivity 6.7 mV/Pa
Max. SPL 151 dB SPL (>160 dB SPL mit pad)
Pad -10 dB
Load impedance > 1 kΩ
Main Connector XLR 3 pin
Frequency range 20 Hz – 18 kHz
Equivalent noise level 21 dB SPL (A)
Low cut filter 80 Hz (2nd Order), 120 Hz (2nd Order)
Impedance 275 Ω (symmetrical)
Supply voltage 48 V (< 1.5 mA)
Dimensions 147 x 82 x 54 mm
Weight 265 g
Specifications
Type Dynamic
Polar Pattern (Direction) Cardioid
Sensitivity 6.7 mV/Pa
Frequency Response 20Hz - 18kHz
Wired / Wireless Wired
Connectors 1 x 3 Pin XLR
Weight 265 g
Including Shock Mount No
Including Pop Shield No
Including Mic Clip No
Powered By Non-powered
