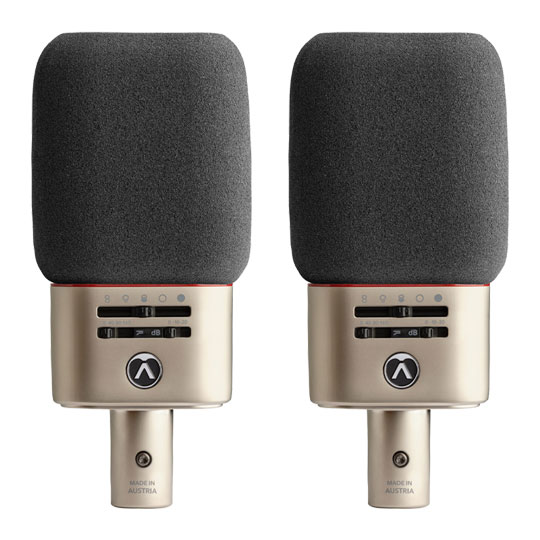

Austrian Audio - OC818 Large-diaphragm Condenser Microphone Dual Set Plus
Austrian Audio - OC818 Large-diaphragm Condenser Microphone Dual Set Plus, Complete with Carrying Case & Accessories
Large-diaphragm Condenser Microphone
Austrian Audio - OC818 (Dual Set Plus)
The ultimate package!The Austrian Audio OC818 is engineered and manufactured in Austria and is Austrian Audio’s premier, professional, large diaphragm microphone. Featuring high sensitivity, low self-noise and the ability to handle everything from a whisper to extreme SPLs make it the most advanced microphone for studio, broadcast and live applications. As the unique ceramic capsule design is so consistent, any OC818 is match-paired with any other OC818, and when in cardioid mode, it can also be match-paired with any OC18, its affordable, smaller sibling. This Dual Set Plus comes complete everything you need to get the best from a stereo recording.
13 mV/PaSensitivity
20Hz - 20kHzFrequency Range
148 dBMax. SPL
Amazing Features
• Handmade CKR12 ceramic capsule, made to the same critical dimensions as the classic CK12 capsules
• Cardioid, omnidirectional & custom programmable polar patterns
• 40 Hz, 80 Hz, 160 Hz analogue high-pass filters
• Microprocessor control of polarisation voltages

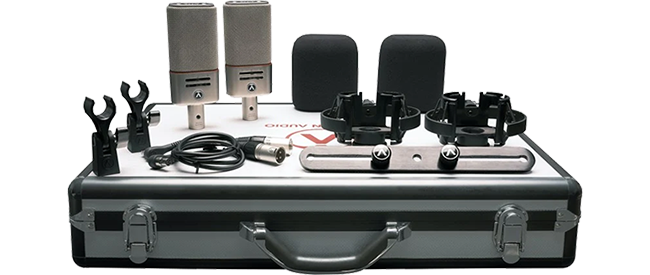

What's included?
• 2x OC818 large-diaphragm condenser microphones
• 2x OCS8 elastic microphone spreader
• 2x OCH8 microphone clamp
• 2x OCC8 Mini XLR cable
• 2x OCW8 windscreen
• 1x SB1 Stereo bar
• All in one large carrying case
The Heart of the OC818
CKR12 Ceramic CapsuleAustrian Audio never cut corners with the design and components of their microphones. Every CKR12 ceramic capsule is handmade in-house at their facility in Vienna and are now developing the next generation of transducer and microphone builders to serve our expanding customer-base.
OC818 & OC18. Made in Vienna. Again!
Handmade Capsules and Mics Made in Vienna.
The Tech Spec
| Features | Specification | Directional characteristic | Multi |
|---|---|
| Polar pattern | Cardioid, omnidirectional, figure-8, hypercardioid & custom programmable |
| Frequency range | 20 Hz - 20 kHz |
| Sensitivity (all directions) | 13 mV/Pa |
| Equivalent noise level | 9 dB (A) |
| Max SPL | 148 dB SPL (158 dB SPL) |
| Switchable pad | -10 dB, -20 dB |
| Analogue Low Cut filter | 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below) |
| Impedance | 275 Ω (symmetrical) |
| Load impedance | > 1 kΩ |
| Supply voltage | 48 V (< 4mA, typical 2.1mA) |
| Connectors | XLR 3 pin Or remote: Mini XLR 5 pin Connector for back membrane |
| Dimensions | 157 x 63 x 35 mm |
| Weight | 360g |
