Audio Technica ATM710 Cardioid Condenser Handheld Microphone

Product Overview This electret singing microphone from the Artist Series range is designed for detailed and faithful voice reproduction. With a capacitor designed for studio-quality performance, the ATM710 provides remarkable clarity. This microphone is equipped with an integral 80Hz low-cut filter that allows easy switching from a flat frequency response to severe attenuation position which reduces the sensitivity of the microphone "pops" when used in proximity to voice. The ATM710 is also equipped with a 10 dB switchable attenuator that reduces the sensitivity of the microphone and provides superior SPL capacity. The cardioid microphone improves isolation of the sound source and reduces pickup of sounds to the sides and rear.

Static For Stage Studio Quality
The condenser element of the ATM710 delivers on stage clarity, sharpness and remarkable precision equivalent to the performance of professional studio microphones. Moreover, its highly balanced cardioid ensures a high quality rejection.

Robust Design
Built for the road, the ATM710 has a multilayer metal grid that provides excellent protection against plosives and sibilance without affecting treble clarity. Its superior anti-shock system significantly reduces handling noise.

Low-Cut Filter And Fader
The integrated low-cut filter allows for the easy switching of flat frequency response to attenuate the bass. The 10dB attenuator reduces microphone sensitivity, whilst increasing the sound pressure level, thus increasing the versatility of the ATM710.

• Excels in venues with controlled stage volume or in-ear monitoring
• Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Superior anti-shock engineering for reduced handling noise and quiet performance
• Condenser design for studio-quality performance
• Integral 80 Hz HPF switch and 10 dB pad switch
• Corrosion-resistant contacts from gold-plated XLRM-type connector
• Rugged, all-metal design and construction for years of trouble-free use
• Quiet-Flex™ stand clamp provides silent, exible microphone positioning
• Product guaranteed for 15 years Features • Customised vocal reproduction, high fidelity and extreme clarity maximizing impact and intelligibility
• Condenser design for studio-quality performance
• Excels in venues with controlled stage volume or in-ear monitoring
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Superior anti-shock engineering for low handling noise
• Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
• Integral 80 Hz HPF switch and 10 dB pad switch
• Rugged, all-metal design and construction for years of trouble-free use

Tech Specs
• Element: Fixed-charge back plate permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 40 - 20,000 Hz
• Open Circuit Sensitivity: -40 dB (10.0 mV) re 1V at 1 Pa
• Impedance: 200 ohms
• Maximum Input Sound Level: 148 dB SPL, 1 kHz at 1% T.H.D. / 158 dB SPL, with 10 dB pad (nominal)
• Low Frequency Roll Off: 80 Hz, 12 dB/octave
• Dynamic Range: 127 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 73 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 3.5 mA typical
• Weight: 274g
• Dimensions: 179.0 mm (7.05") long, 50.0 mm (1.97") diameter
• Output Connector: Integral 3-pin XLRM-type

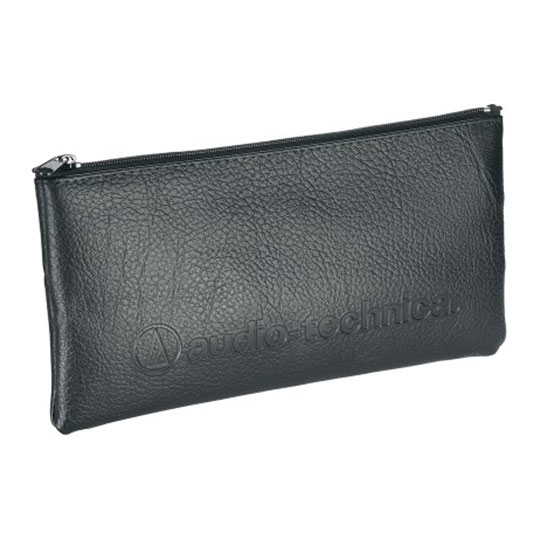

• Accessories Included: AT8470 Quiet-Flex® stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
