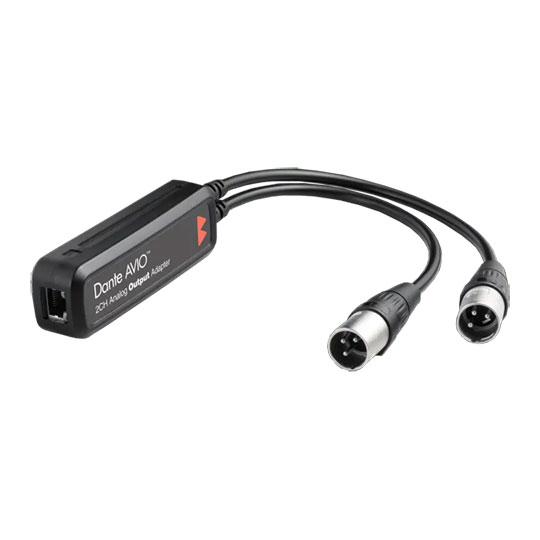

Audinate ADP-DAO-AU-0x2 Dante AVIO Adaptor
Audinate - ADP-DAO-AU-0x2 Dante AVIO Adaptor, RJ45 & 2 XLR-M, 16, 24 and 32-bit Audio Support
Email me when the availability or price changes
Dante Avio Adaptor (Analogue Output)
Audinate - ADP-DAO-AU-0X2
Plug & play operationThe AudinateDante AVIO Analogue Adapter allows you to use your favourite analogue audio gear with any Dante-connected system, delivering the interoperability, performance and scalability that only networking can bring. Cost effective, compact and built for the road, Dante AVIO adapters bring the modern network connectivity that every audio professional needs in their toolbox.
Each Dante AVIO analogue adapter is a complete, high performance Dante device, delivering all the automation and ease of use that have made Dante the most popular audio networking solution worldwide. Dante AVIO analogue adapters are automatically discovered and ready to use when connected, and no separate power supplies are required – just use a common PoE (Power over Ethernet) switch and Dante AVIO analog adapters are ready to go.
At a glance
• 16, 24 and 32-bit audio support
• Excellent dynamic range, SNR and THD performance
• Dante Audio over IP and AES67 RTP transport formats
• Power over Ethernet (PoE) support
• Configurable gain / attenuation
The Tech Spec
| Features | Specification | Max signal level (balanced) | +18dBu / +4dBu / 0dBu 0dBV /-10dBV |
|---|---|
| Frequency Response | 20Hz to 20kHz (-/+0.5dB) |
| Impedance | 150 Ohm balanced 75 Ohm unbalanced |
| Dynamic Range | > 100dB |
| Signal to Noise Ratio | > 100dB |
| Total Harmonic Distortion | < 0.01% at +4dBu |
| Connectors | RJ45 & 2 XLR-M |
| Power | Class 1 802.3af PoE |
| Sample Rates | 44.1, 48, 96 kHz |
| Bit Depth | 24 |
| Dante Device Latency | 1, 2, or 5ms (configurable using Dante Controller) |
| Network Transport | Dante Audio over IP, AES67 RTP |
| Part Number | ADP-DAO-AU-0X2 |
