Scan code: LN124972 Manufacturer code: VE8952T

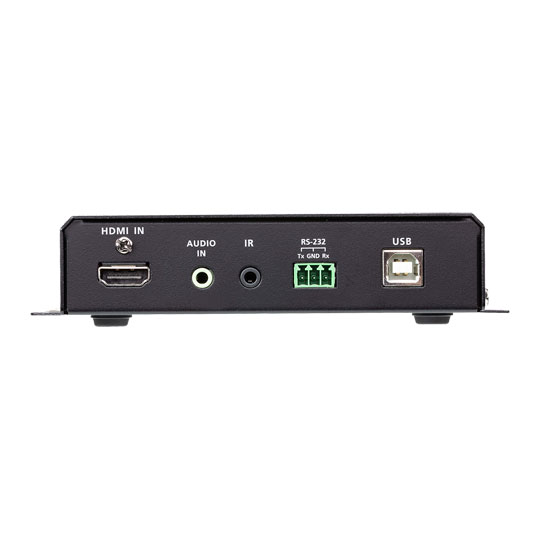

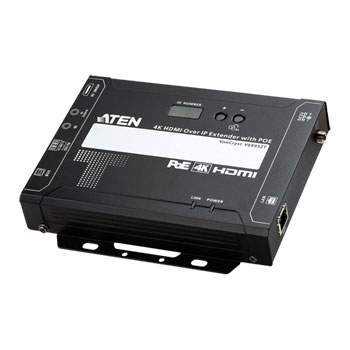

Aten VE8952T 4K HDMI over IP Transmitter with PoE

Aten VE8952T HDMI (Female) over IP Transmitter with RJ-45 PoE, 4K@60Hz, RS-232/USB Type-B/Stereo Jack

Thumbnail 1 : Aten VE8952T 4K HDMI over IP Transmitter with PoE Thumbnail 2 : Aten VE8952T 4K HDMI over IP Transmitter with PoE Thumbnail 3 : Aten VE8952T 4K HDMI over IP Transmitter with PoE
Scan code: LN124972 Manufacturer code: VE8952T
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Product Overview

4K HDMI over IP Transmitter with PoE

The ATEN VE8952T 4K HDMI over IP Transmitter with PoE delivers visually lossless 4K AV signals with low latency over long distance via a standard Gigabit network. It is an effective and easy-to-use solution that directly addresses the challenges system integrators encounter when deploying AV over IP.


Limitless Scalability and Flexibility

From a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications.


No Complicated IP Setup

Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience.


No Additional Server PCs or Software Required

Effortlessly manage your AV over IP system by logging in to any transmitter from the intuitive web GUI with drag and drop operation.


Go Further for Less with Daisy Chaining

Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs.


Locate Anywhere without the Need for Power Cabling

With PoE support, you can easily place VE8952T units where they are needed the most without having to install additional power cabling and outlets.


Flexible Control with Mobile App

Manage and control any VE8952T with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations.

Features

• Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4.
• Ensures stunning quality video using ATEN advanced video lossless compression technology.
• EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens.
• Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage.
• Locate VE8952 anywhere without having to install additional power cabling and outlets.
• Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations.
• Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications.
• Mix and match the latest 4K displays. The built-in scaler automatically scales up incoming video signal to match the maximum resolution of the connected display devices.
• Integrated solution – Compatible with ATEN Control System, allowing users to directly operate VE8900/VE8950/VE8952 via CLI Telnet, RS-232 protocol, or Mobile Control App.
• Effortless operation – One click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad.

Package Contents:
• 1x VE8952T 4K HDMI over IP Transmitter with PoE.
• 1x RS-232 Terminal Block.
• 1x Power Adapter.
• 4x Foot Pads.
• 1x User Instructions.

Specifications
Edition VE8952T
Interface
Video Input Signal Digital: HDMI
Audio Input Signal
  • Analog: 3.5mm Audio
  • Digital: HDMI
Audio Input Format
  • 3.5mm Audio
  • HDMI
Input/Pass-through Resolution
  • 2160p @ 30fps (3840x2160)
  • 2160p @ 60fps (3840x2160)
Input/Pass-through Chroma Subsampling
Video Output/Pass-through Signal
Audio Output/Pass-through Signal
Audio Output/Pass-through Format
Codec
Capture Resolution
  • 2160p @ 30fps (3840x2160)
  • 2160p @ 60fps (3840x2160)
Capture Chroma Subsampling
Audio Capture Format
  • 3.5mm Audio
  • HDMI
Maximum Recording Quality
Input Ports
Output/Pass-through Ports
Supported Software
Compatible Operating Systems
Minimum CPU Requirements
Minimum Graphics Card Requirements
Minimum Memory Requirements
Dimensions 146.9 x 30 x 170.2 mm (WxHxD)
Weight 670 g
Additional Information
Scan Code LN124972
Model Number VE8952T
GTIN 4710469340390
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Telephone:
08448 158923
