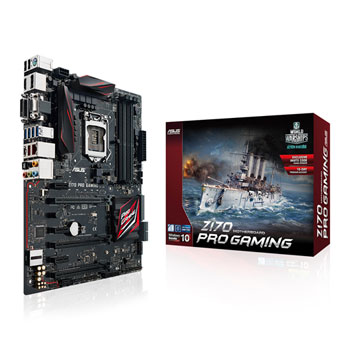

Asus Z170 PRO GAMING USB 3.1 ATX Motherboard

Asus Z170 PRO GAMING, Intel Z170, S 1151, DDR4, SATAe, M.2 (PCIe/SATA), 2-Way SLi/CrossFire, Intel GbE, USB 3.1 A+C, ATX

Asus
Scan code: LN66320 Manufacturer code: 90MB0MD0-M0EAY0 Request call
£129.49
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review 3xs Approved High End
Delivery options £5.48 By DPD On 2nd May 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Features • LGA1151 socket for 6th Gen Intel® Core™ Desktop Processors.
• Dual DDR4 3400 (OC) support.
• PRO Clock technology, 5-Way Optimization and 2nd-generation T-Topology: Easy and stable overclocking.
• SupremeFX: Flawless audio that makes you part of the game.
• Intel Gigabit Ethernet, LANGuard & GameFirst III: Top-speed protected networking.
• RAMCache: Speed up your game loads.
• USB 3.1 Type A/C & M.2: Ultra-speedy transfers for faster gaming.
• Gamer's Guardian: Highly-durable components and smart DIY features.
• Sonic Radar ll: Scan and detect your enemies to dominate.
Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z170
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400(OC)
  • DDR4 - 2600(OC)
  • DDR4 - 2666(OC)
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3100(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio SupremeFX 8-Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.2
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATAe / SATA3 / M.2
RAID Support via SATA3 0~5
Storage Mode Support
  • Intel Rapid Storage Technology Support
  • Intel® Smart Response Technology
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 5-pin EXT_FAN(Extension Fan) connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU OPT Fan Connector
  • 1 x CPU_OV
  • 1 x Front Panel Audio Header
  • 1 x ROG Extension header (ROG_EXT)
  • 1 x SATA Express (Compatible with 2x SATA III)
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x Thermal sensor connector
  • 1 x TPM Header
  • 1 x TPM Header (14-1 pin)
  • 3 x USB 2.0 Header
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x D-Sub (VGA) Out
  • 1 x DisplayPort 1.2
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x SPDIF Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.0
  • 1 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
Reviews
Asus Z170 PRO GAMING, Intel Z170, S 1151, DDR4, SATAe, M.2 (PCIe/SATA), 2-Way SLi/CrossFire, Intel GbE, USB 3.1 A+C, ATX is rated 4.2 out of 5 by 6.
Rated 5 out of 5 by from awesome board I bought this product to go with my new parts, it is a great board. I bought a few items to completely upgrade my PC - they were well packed, delivery was quick and i found the pricing was competitive - i was super impressed.
Date published: 2016-11-06
Rated 5 out of 5 by from Fine product Top quality product. Works flawlessly. 123456789123
Date published: 2016-08-29
Rated 5 out of 5 by from A good motherboard for the money. I bought this to replace a RoG Gene V and I was a little worried about quality after reading reviews around the internet. Happily, I got a great board that worked first time. It packs a lot of features into a 'cheaper' baord and has been absolutely rock solid for me, recognising my RAM and applying XMP on first boot. It came with BIOS v1206 installed (I've since updated) and the BIOS is a doddle to overclock with. I'm not using on-board sound so I can't comment on any problems, but this has been a great update for me.
Date published: 2016-07-11
Rated 2 out of 5 by from Unfinished product from Asus Very disappointed , would not boot with 2 Ram sticks , poor quality management from good company , shame . Ill steer away from Asus for now :( . Given 2 stars just because Scan service was great .
Date published: 2016-01-27
Rated 3 out of 5 by from Ok board so long as you dont want to use the "excellent" onboard sound... I will admit this is a value packed board, it has many good features but it gets totally let down by the supremefx chip, which is either faulty and has been for a number of years or asus/realtek just cant get their heads together to make proper drivers. Ive tried for the last four weeks to fix my sound problems, all to no avail, same problems with rear line out and front panel out and on 5 sets of cans and monitor soundbar. A usb headset/mic setup from plantronics using ms drivers however works no problem. If you buy this board make sure you also have a pcie soundcard, one with a fpanel connector if you have headphone and mic inputs on the front of your case.
Date published: 2015-11-19
Rated 5 out of 5 by from All round excellent I've always bought Asus MB's because they have always worked well for me. I had to flash the BIOS but that's to be expected with a new platform. Everything works great on it and lots of features.
Date published: 2015-10-05
