Scan code: LN113170 Manufacturer code: 90SW00U0-M0EAY0

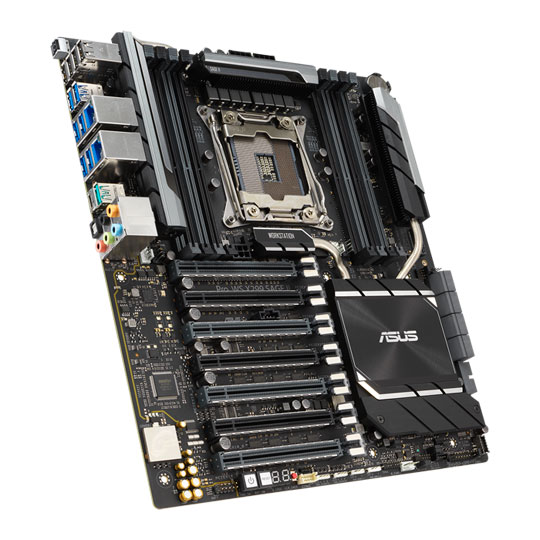

ASUS Intel Core-X WS X299 SAGE II Dual 2.5G LAN CEB Workstation Motherboard

ASUS WS X299 SAGE II, Intel X299, S 2066, DDR4, SATA3, U.2, Dual M.2, 4-Way SLi/CrossFire, Dual Intel 2.5GbE, USB3.2,CEB

Thumbnail 1 : ASUS Intel Core-X WS X299 SAGE II Dual 2.5G LAN CEB Workstation Motherboard Thumbnail 2 : ASUS Intel Core-X WS X299 SAGE II Dual 2.5G LAN CEB Workstation Motherboard Thumbnail 3 : ASUS Intel Core-X WS X299 SAGE II Dual 2.5G LAN CEB Workstation Motherboard Thumbnail 4 : ASUS Intel Core-X WS X299 SAGE II Dual 2.5G LAN CEB Workstation Motherboard
Scan code: LN113170 Manufacturer code: 90SW00U0-M0EAY0
£559.99
Order now and get it tomorrow, Tue 18th May
From £19.13 / month (APR 14.9%)
Monthly Payment: £50.28
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £559.99
Total inc. interest: £603.25
Monthly Payment: £26.88
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £559.99
Total inc. interest: £645.07
Monthly Payment: £19.13
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £559.99
Total inc. interest: £688.70
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £13.99 / month (APR 15.9%)
Delivery Options
  • By DPD On 18th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together
Product Overview

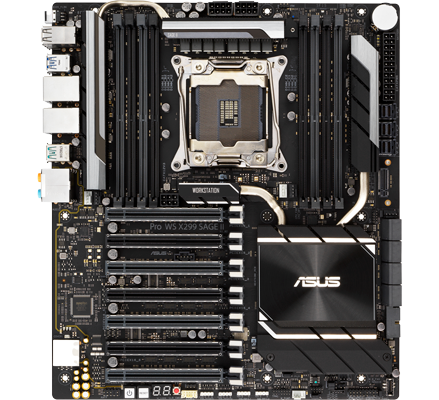

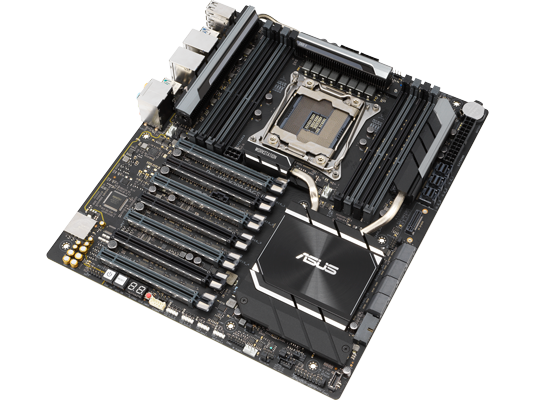

Pro Workstation Motherboard

ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralised management software with support for out-of-band management, so they're also an efficient and cost-effective option for IT administrators.


Breakthrough Performance

Intel®'s high-end desktop platform raises the stakes with updated Intel Core™ X-Series Processors that boast cores, cache, and bandwidth. The Pro WS X299 Sage II is ready for the additional processing power that plows through CPU-intensive tasks, and the extra bandwidth allows you to add more GPUs and NVMe SSDs to accelerate a wide range of work.


Four Dual-slot GPUs Support

Pro WS X299 Sage II fits up to four dual-slot graphics cards and supports both NVIDIA® SLI™ and AMD CrossFire™ 4-way configurations to enable multi-GPU setups that harness the full power of the latest graphics technologies, including NVIDIA® Quadro®. NVIDIA® Quadro® is the perfect complement to Pro WS X299 Sage II, delivering the best performance for design, modeling, medical research, and processing-intensive simulation and rendering applications.


Make your Memory Go Faster

With optimised trace paths for time-aligned signaling and minimal crosstalk, Third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4-4266 MHz and beyond.


Intel Dual 2.5G Internet

2.5G on-board Ethernet kicks your Ethernet connection up a notch with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.


Thunderbolt 3 Card

Pro WS X299 Sage II provides full support for a Thunderbolt EX 3 card. An Intel®-certified Thunderbolt™ 3 add-on card enables breathtaking bi-directional speeds of up to 40Gbps through a single cable — up to 4X faster than other PC data-transfer protocols. Beyond sheer bandwidth, Thunderbolt™ 3 supports daisy-chaining up to six devices, utilises a Type-C reversible connector for compatibility with the latest USB 3.1 Gen 2 Type-C devices, and meets USB power delivery specifications for fast, high-power charging.


USB 3.2 Gen 2 Ports

The back panel of the Pro WS X299 Sage II features two USB 3.2 Gen 2 ports, including one reversible Type-C™ and one backward-compatible Type-A to deliver ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.


USB 3.2 Gen 2 Front-Panel Header

Pro WS X299 Sage II's front panel USB 3.2 header is ready for next-gen PC cases and devices.


M.2 & U.2

Professional applications require fast solid-state storage, which is why the Pro WS X299 Sage II is equipped with dual M.2 slots and triple U.2 slots that are compatible with the latest NVMe SSDs. M.2 slots support longer 110 mm drives, and they can be configured into bootable RAID arrays connected directly to the CPU via Intel VROC technology.


VROC

Virtual RAID on CPU (VROC) is an all-new feature of Pro WS X299 Sage that enables use of an Intel VROC hardware key. With VROC, you can easily configure RAID arrays and eliminate traditional bottlenecks, so your storage is not held back by other traffic — perfect for busy scratch drives and content libraries.


AI Overclocking

ASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system.


Cool To The Core

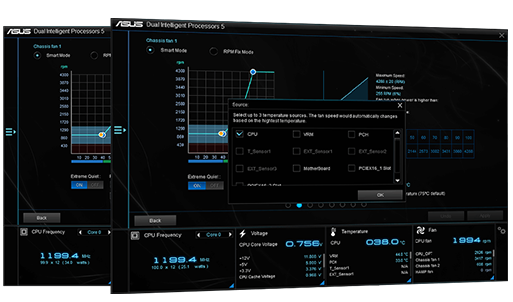

Effective cooling is extremely important, even at stock speeds. That is why the Pro WS X299 Sage II allows consolidated cooling control of the entire system, even for the most hardcore rigs. It comes equipped with onboard heatsinks, an array of fan headers, options for water pump and AIO headers.

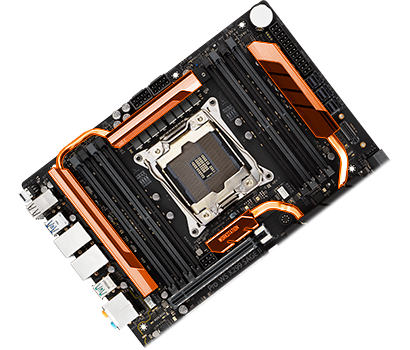

Multiple Ultra-Efficient Heatsinks

Pro WS X299 Sage II features a thoughtful thermal design to ensure maximum performance with no CPU throttling. Its ultra-efficient VRM heatsink with a metal fin array maximises surface area for heat dissipation, and its heatsinks and a connecting heat-pipe that's situated in the direct path of airflow combine to ensure optimal cooling performance — even under the most demanding workloads.


M.2 Heatsink

Pro WS X299 Sage II features an ultra-efficient heatsink to reduce M.2 SSD temperatures for optimal storage performance and improved SSD longevity.


Audio & Personality

We pay careful attention to all the little details that improve your overall experience, from integrating a flashing utility directly into the UEFI to simplifying firmware updates or displaying your system vital signs. Pro WS X299 Sage II provides the tools you need to personalise your build and stay on top of things.


Exclusive Codec

Pro WS X299 Sage II utilises a unique audio codec designed in close collaboration with Realtek — the Realtek S1220A. It also features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in, providing pristine audio quality. Additionally, a new impedance-sensing circuit automatically adjusts the gain to ensure optimal volume range for your headphones. DTS:X® Ultra adds a spatial audio feature to boost headphones and speakers for an enhanced gaming, VR, and extended reality experience. DTS:X Ultra supports sound based on channels, scenes, and objects to allow for deeper sonic immersion in enabled content. It also provides post-processing enhancements and device-level tuning for DTS® codecs.


Aura Sync

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.


ASUS Control Centre

Pro WS X299 Sage II features ASUS Control Centre (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Features
Intel LGA 2066 socket: Ready for the latest Intel® Core™ X-series processors
AI Overclocking: Quickly optimises CPU performance by profiling the CPU and cooler, achieving results that are extremely close to manual tuning by experts
Dual Intel® 2.5G LAN: Offers increased data throughput and improved efficiency, making it ideal for large file transfers and backup
Fits up to 4-way graphics cards: Includes 7 PCIe Gen 3 x16 slots and supports NVIDIA® SLI and AMD CrossFire™
Ultra-efficient VRM heatsink: Metal-fin-array design maximises surface area for heat dissipation to enable unthrottled performance
Next-gen connectivity: Next-gen transfer speeds with dual M.2, triple U.2 and USB 3.2 Gen 2 Type-A and Type-C™
Specifications
Core Specifications
Edition Pro WS X299 SAGE II
Form Factor CEB
CPU Socket 2066
Chipset Intel X299
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3600(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
Max. Memory Capacity 256GB
Audio
Audio Realtek ALC S1200A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 4-Way SLi
AMD CrossFire Support 4-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 7 x PCIe 3.0 x16
  • 8 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 6-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x AAFP
  • 2 x Addressable Digital RGB Header
  • 1 x AIO Pump Connector
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Button
  • 2 x CPU Fan Connector
  • 1 x CPU_OV jumper
  • 1 x M.2 Fan Header
  • 8 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 1 x TPM Header
  • 3 x U.2 Connector
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x VROC_HW_Key
  • 1 x Water Pump Header
External Connectivity
Network Interface Type
Network Chip/Modules 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Audio I/O
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 6 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 267 mm
Note
Additional Information
Scan Code LN113170
Model Number 90SW00U0-M0EAY0
GTIN 4718017322362
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
