Scan code: LN147886 Manufacturer code: TUF GAMING Z790-BTF WIFI

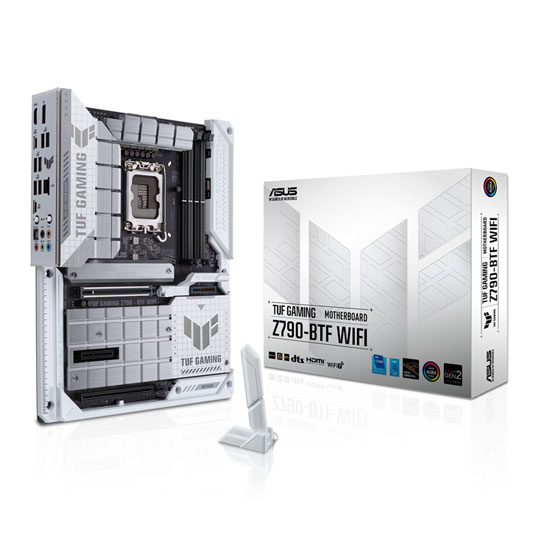

ASUS Intel Z790 TUF GAMING Z790-BTF WIFI PCIe 5.0 DDR5 ATX Motherboard

ASUS TUF GAMING Z790-BTF WIFI, Intel Z790, S 1700, DDR5, SATA3, PCIe 5.0, 4x M.2, 2.5GbE/WIFI 7, USB 3.2 Gen2x2,TB4, ATX

Thumbnail 1 : ASUS Intel Z790 TUF GAMING Z790-BTF WIFI PCIe 5.0 DDR5 ATX Motherboard Thumbnail 2 : ASUS Intel Z790 TUF GAMING Z790-BTF WIFI PCIe 5.0 DDR5 ATX Motherboard Thumbnail 3 : ASUS Intel Z790 TUF GAMING Z790-BTF WIFI PCIe 5.0 DDR5 ATX Motherboard Thumbnail 4 : ASUS Intel Z790 TUF GAMING Z790-BTF WIFI PCIe 5.0 DDR5 ATX Motherboard
Scan code: LN147886 Manufacturer code: TUF GAMING Z790-BTF WIFI
Order now and receive it by Tuesday, 18th June
£329.99
Get it Tuesday, 18 JunIn stock
From £16.12 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £29.90
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £329.99
Total inc. interest: £358.76
Monthly Payment: £16.12
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £329.99
Total inc. interest: £386.68
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.77 / month (APR 19.9%)
Delivery Options
  • By DPD On 18th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

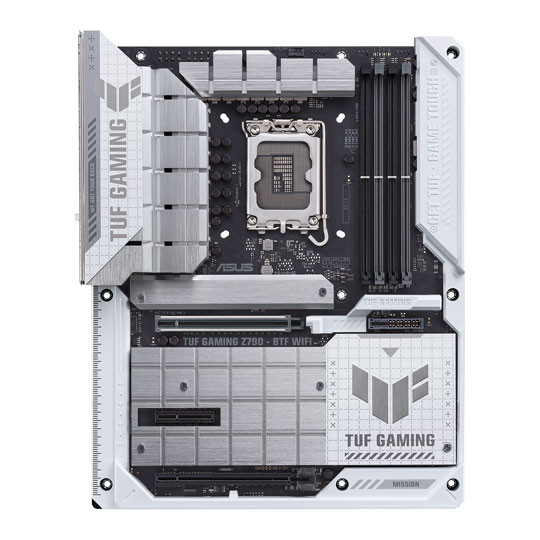

TUF GAMING Z790-BTF WIFI

TUF GAMING Z790-BTF WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. "BTF" means "Back To (the) Future" for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance.


Easy PC DIY

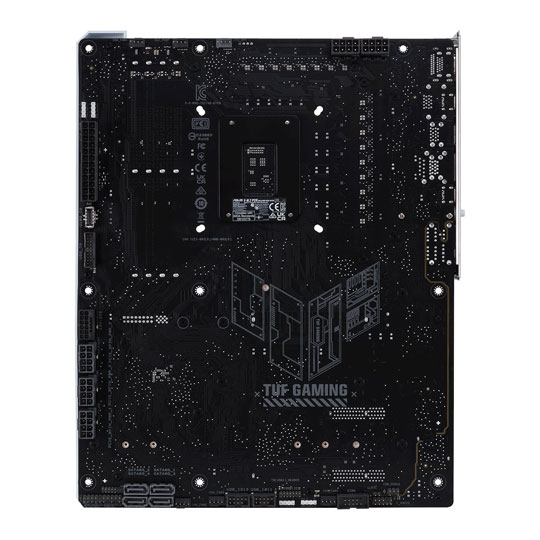

The TUF GAMING BTF line-up allows easy cable management and setup for builders of all levels. The ASUS BTF Alliance ecosystem confirms compatibility, while Armoury Crate displays hardware information and makes it easy to adjust Fan Xpert 4, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.


Optimized Cable Management

The hidden-connector design can be ideal for a first-time builder, because it allows easier cable management and also enhances a build's appearance by presenting neat and clean internals.


Advanced BTF Design

With the combination of a BTF graphics card, motherboard, and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through graphics cards compatible with the new graphics card high-power slot to deliver up to 600 watts through this motherboard. With a set of compatible BTF components, builders can eliminate the need for visible cables for a clean and organized Advanced BTF look.


SafeSlot & SafeDIMM

SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot-all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.


ESD Guards

ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge - greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.


TUF LANGuard

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.


Stainless Steel Back I/O Panel

TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that's three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.


PCIe Q-Release

A physical button unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.


Q-Antenna

With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.


M.2 Q-Latch

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.


Q-LED

The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup. It can also alert them when memory modules have not been properly installed--even before booting.


Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storages, the TUF GAMING Z790-BTF WIFI is the perfect foundation for your next Intel battle rig.


Premium Power Delivery

16+1+1 power stages are each rated to handle up to 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.


Six-Layer PCB Design

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.


8+8 PIN ProCool Power Connectors

Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.


TUF Chokes

Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.


TUF Capacitors

The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.


Digi+ VRM

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.


Unleash DDR5 With AEMP II

ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature that allows users to achieve supreme memory performance and compatibility with optimized clock speeds, even when they're using PMIC-restricted memory modules that do not provide an XMP or EXPO profile. Developed through a flexible training method, AEMP II simplifies the process of fine-tuning memory settings beyond the baseline configuration, all while ensuring system stability. This applies whether you are maximizing the potential of an entry-level module or preparing a high-speed kit for ultimate performance.
Now, AEMP II offers even more flexibility. With the latest firmware update, AEMP II allows users to optimize the performance of a four-DIMM DDR5 RAM configuration, even with a mixture of different brands and dies. Increasing the memory capacity of your build by adding additional DIMMs has never been easier - with AEMP II, you can get optimized memory performance even when all four memory modules are not an exact match, provided that all four DIMMs have the same capacity.


PCIe 4.0 Support

The four PCIe 4.0 M.2 slots support up to two 22110 devices and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.


Cooler by Design

The TUF GAMING Z790-BTF WIFI is armed with an enlarged VRM heatsink, while four M.2 slots and the PCH feature heatsinks that provide the perfect balance of mass and surface area for heat dissipation.


Comprehensive Fan Controls

TUF GAMING Z790 motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 4 utility in Armoury Crate or via the award-winning ASUS UEFI BIOS.


Cooler Compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new Z790 motherboards, empowering you to build your dream gaming rig.


Connectivity

The TUF GAMING Z790-BTF WIFI reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C® connections, and Thunderbolt 4 expands compatibility and bandwidth even further.


Intelligent Control

The TUF GAMING Z790 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.


AI Cooling II

Balance the thermals and acoustics of any build with a single click. An ASUS-exclusive algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.


All-Around Energy Efficiency

The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.


UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.


Armoury Crate

The ASUS-exclusive Armoury Crate software centralizes control of all supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also displays information from, and enables control of, a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community.


Immersive Gaming

TUF GAMING Z790 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.


ASUS WiFi Q-Antenna

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.


Fast Check

Armoury Crate's Fast Check empowers users to rapidly detect WiFi signal strength.


Direction Finder

Armoury Crate's Direction Finder helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.


WiFi 7

With Multi-Link Operation (MLO), WiFi 7 can outperform WiFi 6E to deliver faster speeds, higher reliability and increased data transfer efficiency.


Intel®2.5 Gb Ethernet

On-board 2.5 Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5X. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers.


Two-Way AI Noise Cancelation

This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are muffled so you can hear and be heard with excellent clarity while gaming or during calls.


Realtek 7.1 Channel Audio

This motherboard utilizes an audio codec designed in close collaboration with Realtek - the Realtek ALC1220P. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.


DTS Audio Processing

DTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.


Features


• Intel LGA 1700 Socket: Ready for 14th and 13th Gen Intel Core processors, 12th Gen Intel Core, Pentium Gold, and Celeron processors.
• Upgraded Power Solution: 16+1+1 power stages, six-layer printed circuit board, ProCool sockets, alloy chokes and durable capacitors to provide stable power.
• Hidden Connectors Design: Provides an unprecedented level of cable management to PC DIY enthusiasts.
• High Power Graphics Card Slot: Compatible with the graphics card's high-power PCIe connector, provides up to 600 watts through the motherboard.
• AI & Memory Technology: AI Cooling II, two-way AI Noise Cancelation, and ASUS Enhanced Memory Profile II.
• DIY Design for PC: PCIe Slot Q-Release, M.2 Q-Latch, Q-LED, Q-Antenna, and SafeSlot.
• Next-generation connectivity: PCIe 5.0, USB 20Gbps, Front USB 10Gbps and Thunderbolt 4 Header
• DESIGNED FOR ONLINE GAMING: WiFi 7 with ASUS WiFi Q-Antenna White, 2.5Gb Intel Ethernet with TUF LANGuard.

Specifications
Core Specifications
Edition TUF GAMING Z790-BTF WIFI
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
Max. Memory Capacity 192GB
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 1 x M.2, 22-42/80/110, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x4
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via RAID 0/1/10/5 (Intel RSTe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x 8-pin PCIe (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x AUX_PWR header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 4 x M.2 Connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7 LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11be WiFi 7
  • 1 x Intel (2.5GbE LAN)

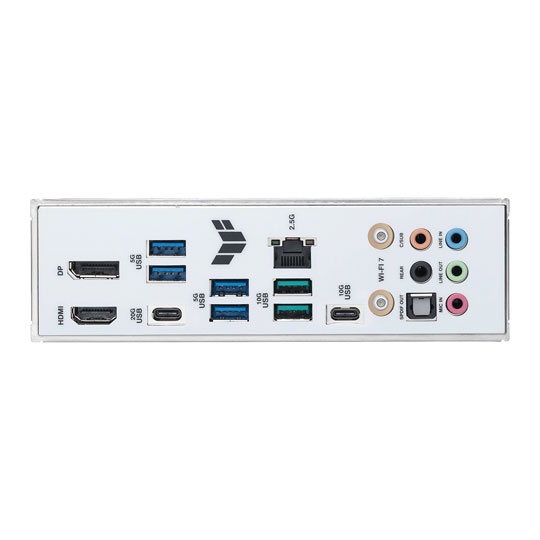

Rear I/O Connectors
  • 1 x 7.1 Audio I/O
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 7 (802.11be 2x2) / BT 5.4
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN147886
Model Number TUF GAMING Z790-BTF WIFI
GTIN 4711387468159
