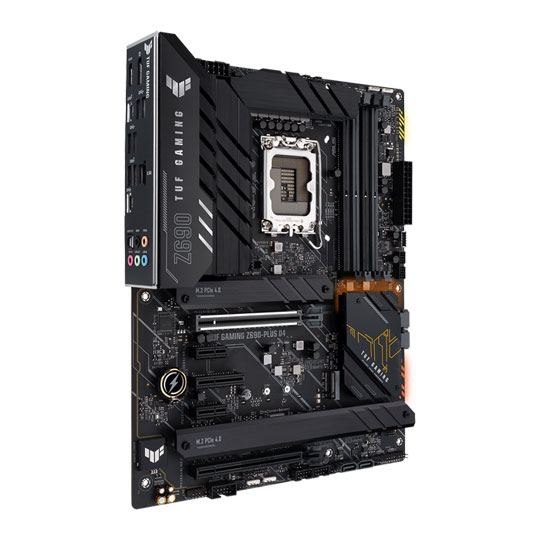

ASUS TUF GAMING Z690-PLUS D4 12th Generation Intel ATX Motherboard
Incredible Durability Across the Board ASUS TUF GAMING Z690-PLUS D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING Z690-PLUS D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
Driver and mosfet The onboard VRMs feature 14+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 12th Gen Intel Core processors demand.The power stages are each rated to handle 80 amps to provide stable performance for current and future Intel processors.
Six-Layer PCB DesignHaving multiple PCB layers helps to optimise heat managment for critcal components, providing more headroom for overclocking and system tweaks.
Procool Power ConnectorsCompared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
TUF capacitorsProprietary capacitors provide up to 20% wider temperature tolerance and five times longer lifespan.
TUF ChokesCertified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.
Digi+ VRMThe integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimised for ultra-smooth and ultra-clean power delivery to the CPU at all times.
Cooler by Design
1. Enlarged VRM HeatsinkThe extensive surface area of the massive heatsink covers the VRMs and chokes to improve heat dissipation.
2. Enlarged PCH HeatsinkAn expanded surface area for the chipset cooler maximizes performance and heat dissipation.
3. Three M.2 slots with heatsinksThree out of four M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.
Comprehensive Fan Controls
Multiple temperature sourcesEach header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.
AIO water-cooling settingsAn integrated AIO system enables full control of PWM or DC water pumps, making it perfect for custom or self-contained cooling setups.
Excercise Your Control TUF GAMING Z690 motherboards feature comprehensive fan controls that can be configured via Fan Xpert 4 utility in Armoury Crate or the award-winning ASUS UEFI BIOS.
4-pin PWM/DC fanAll onboard chassis fan headers support auto-detection of PWM or DC fans.
Smart fan protectionA dedicated integrated circuit protects each fan header from excess heat and electrical currents.
Incredible Memory Performance
DDR4 OC 5333 Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.CLICK HERE TO FIND OUT MORE >
Unprecedented Storage Capabilities
Four PCIe 4.0 M.2 The four PCIe 4.0 M.2 slots support up to two 22110 devices and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.
Say Hello to The Latest Generation
PCIe 5.0 support The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of PCI Express
TUF Protection for your Motherboard
SafeSlot Protection PCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted their SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protects memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.
ESD GuardsESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV.
TUF LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
DRAM Overvoltage Protection Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless Steel Back I/O Panel TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
Intel® 2.5 Gb Ethernet
Keeping Your ConnectedOnboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming. Turbo LAN is a network-optimisation software for customisable packet prioritisation. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.
Two-Way AI Noise Cancelation
500M Deep-learning database
Minimal Performance impact
Excellent Gaming Audio This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls.
Let Your Personality Shine Through
A. Addressable Gen2 RGB Header
ASUS Aura SyncA well-tuned system deserves a matching aesthetic. TUF Gaming Z690 series features edge lighting to enhance its rugged look, and now the PCH heatsink gets RGB lighting to take the style even further. ASUS Aura offers full RGB control with a variety of functional presets for built-in LEDs as well as third-party strips you can connect to onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
ASUS Armory Crate
Intutive Software Control Armoury Crate is exclusive ASUS software that gives you centralised control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customise RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for uniﬁed system lighting effects. It also provides hardware information and control of settings for a select and growing number of products, including keyboard and mouse preferences, Fan Xpert 4 and Two-Way AI Noise Cancelation, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news sections to help you stay in touch with the gaming community.
|Edition||TUF GAMING Z690-PLUS D4|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||7.1 Channel HD Audio|
|Primary GPU Interface||PCIe 5.0 (x16)|
|NVIDIA SLI Support||N/A|
|AMD CrossFire Support||N/A|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||None|
|RAID Support via||SATA|
|Storage Mode Support||
|Network Interface Type||Wired 2.5 Gigabit LAN (10/100/1000/2500)|
|Network Chip/Modules||1 x Intel (2.5GbE LAN)|
|Rear I/O Connectors||
|Board Dimensions||305 x 244 x 43mm mm|
|Model Number||TUF GAMING Z690-PLUS D4|
