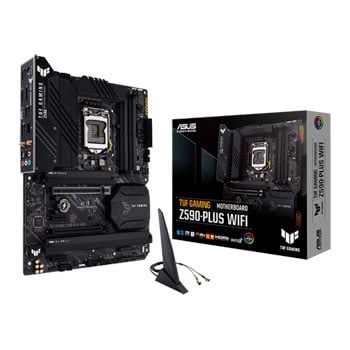

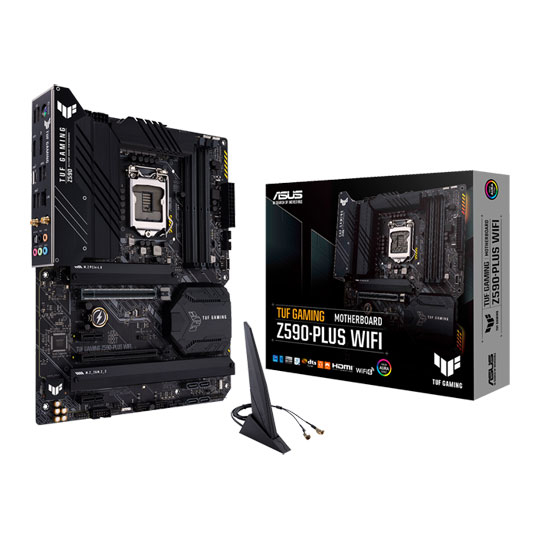

ASUS Intel Z590 TUF GAMING Z590-PLUS WIFI ATX Motherboard
End Of Life
ASUS Intel Z590 TUF GAMING Z590-PLUS WIFI ATX Motherboard
Scan code: LN114065 Manufacturer code: TUF GAMING Z590-PLUS WIFI
End Of Life
  • Thumbnail 1 : ASUS Intel Z590 TUF GAMING Z590-PLUS WIFI ATX Motherboard
  • Thumbnail 2 : ASUS Intel Z590 TUF GAMING Z590-PLUS WIFI ATX Motherboard
  • Thumbnail 3 : ASUS Intel Z590 TUF GAMING Z590-PLUS WIFI ATX Motherboard
  • Thumbnail 4 : ASUS Intel Z590 TUF GAMING Z590-PLUS WIFI ATX Motherboard
End Of Life

ASUS Intel Z590 TUF GAMING Z590-PLUS WIFI ATX Motherboard

ASUS TUF GAMING Z590-PLUS WIFI, Intel Z590, S 1200, DDR4, SATA3, 3x M.2, ax WiFi/BT 5.0, 2.5GbE, USB 3.2 Gen2 A+C, ATX

Scan code: LN114065 Manufacturer code: TUF GAMING Z590-PLUS WIFI
End of life
This product is no longer available to purchase.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

TUF GAMING Z590-PLUS WIFI Intel ATX Motherboard from ASUS

Durable, Stable and Reliable ASUS TUF GAMING Z590-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING Z590-PLUS WIFI sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.

Intel Z590Chipset

LGA 1200CPU Socket

ATXForm Factor

TUF Gaming Power Design

DrMOSThe onboard VRM of TUF GAMING Z590 series motherboards utilize 14+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 11th Gen Intel Core processors demand.

6-layer PCB DesignMultiple PCB layers shift heat away from critical components, providing more headroom to push CPUs beyond stock speeds.

Enhanced EATX 4-Pin and 8-Pin ConnectorsCompared with traditional power inputs, ProCool connectors are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

TUF Chokes and CapacitorsCertified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability. Proprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.

Digi+ VRM The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.

Built to Take the Strain

Power Delivery Enhancements

POWER DELIVERY ENHANCEMENTS With upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel® Core™ processors, plus support for faster memory and storage, TUF GAMING Z590 series motherboards are the perfect foundation for your next high-core-count battle rig.

1.6X larger VRM heatsink The extensive surface area of the large, high-mass heatsink covers the VRM and choke to improve heat dissipation. The total surface area of the VRM heatsink is 1.6X that of the previous generation.

2. Three M.2 slots with heatsinks Each M.2 slot has a dedicated heatsink keep the M.2 SSDs at optimum operating temperature to ensure consistent performance and reliability.

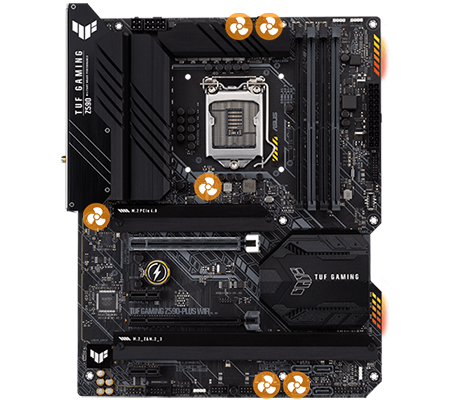

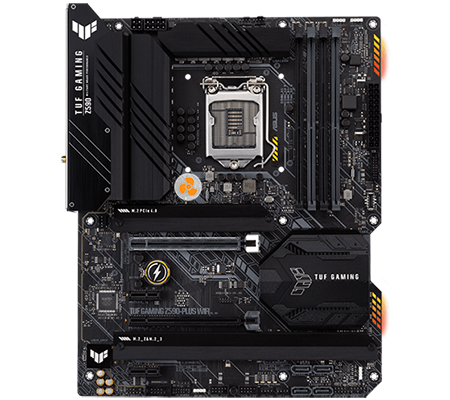

Comprehensive Fan Controls

Multiple temperature sourcesEach header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI. ​

AiO water-cooling setAn integrated AiO system enables full control of PWM or DC water pumps, making it perfect for custom or self-contained cooling setups.

4-pin PWM/DC fanAll onboard chassis fan headers support auto-detection of PWM or DC fans.

protection

Smart protection A dedicated integrated circuit protects each fan header from over-temperature and overcurrent.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Excellent Memory and Storage Capabilities

back

PCIe 4.0 M.2 (up to 64 Gbps)TUF GAMING Z590 series motherboards feature PCIe 4.0 M.2 and NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage to enjoy the fastest data-transfer speeds on the 11th Gen Intel Core processors.

back

DRAM Overclocking Performance Revisions to the motherboard’s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Make the most with Thunderbolt™ 4

M.2 Support

USB 3.2 Gen 2x2 Type-C TUF GAMING Z590 series feature Thunderbolt™ 4 support via an on-board header. With latest Intel-certified ASUS ThunderboltEX 4 add-on card, TUF GAMING Z590-PLUS WIFI can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Extensive USB support ensures connections to a wide array of peripherals. TUF GAMING Z590-PLUS WIFI includes USB 3.2 Gen 2x2 Type-C® that deliver increased bandwidth and transmission speeds of up to 20 Gbps.

TUF Protection for your Motherboard

SafeSlot Protection SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured via a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

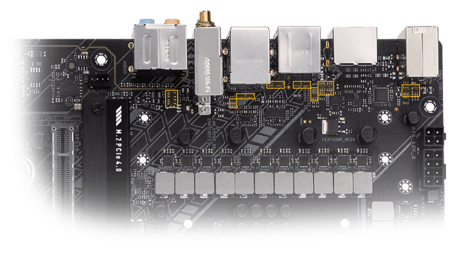

ESD GuardsESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV.

TUF LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

protection

DRAM Overvoltage Protection Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

protection

Stainless Steel Back I/O Panel TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.

Intel® WiFi 6 for Wireless Connectivity

back

Get up to 2.4GbpsThe Intel® WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. It is optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

Intel® 2.5 Gb Ethernet

back

MyASUS offers a variety of support featuresOnboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.

Two-Way AI Noise Cancelation

4K Recording

500M Deep-learning database

Audio Input/output

High Fidelity

Minimal Performance impact

Excellent Gaming Audio This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls. The unique audio codec designed in close collaboration with Realtek for TUF Gaming Z590 series motherboards features an unprecedented 108 dB signal-to-noise ratio for the stereo line out and a 103dB SNR for the line in, providing pristine audio quality.

Outshine the Competition with ASUS Aura Sync

2 X Addressable Gen 2 RGB Headers

2 X RGB Headers

Your Motherboard, Your Way A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers - and it can all be synced with an ever-growing portfolio of Aura-capable hardware. The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.

Breathe

Breathe

Colour cycle

Colour Cycle

Smart Cycle

Smart Cycle

EQ Effect

Equaliser

Rainbow Effect

Rainbow

Stars Effect

Starry Night

Static Effect

Static

Strobing Effect

Strobing
