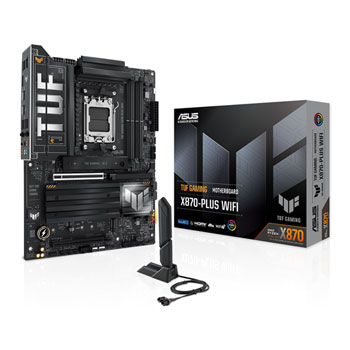

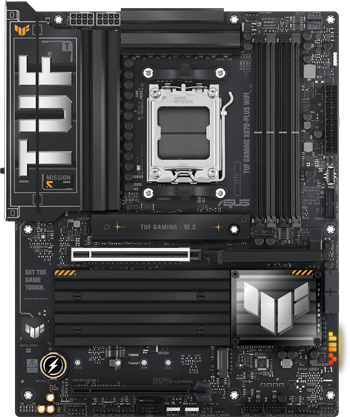

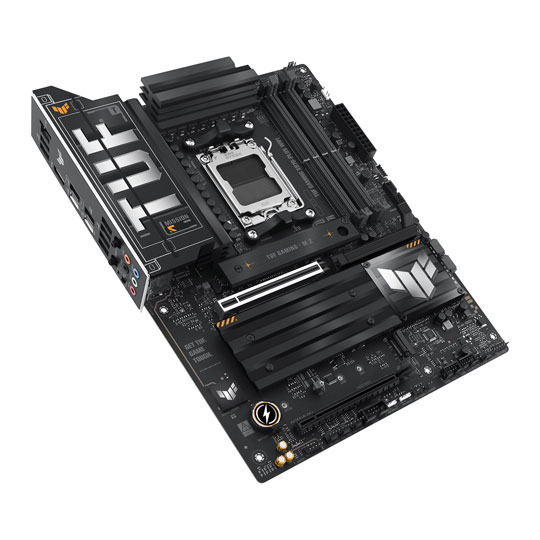

ASUS TUF GAMING X870-PLUS WiFi AM5 DDR5 PCIe 5.0 ATX Motherboard

TUF Gaming X870-PLUS WIFI

ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

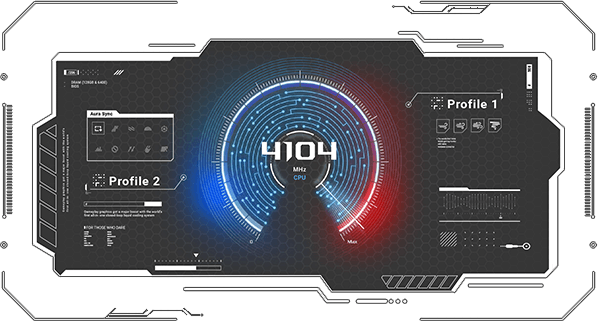

AI Overclocking II

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

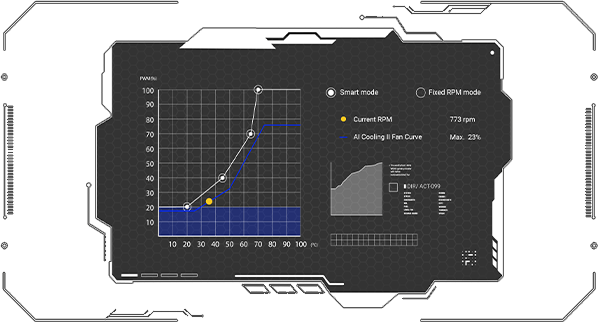

AI Cooling II

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

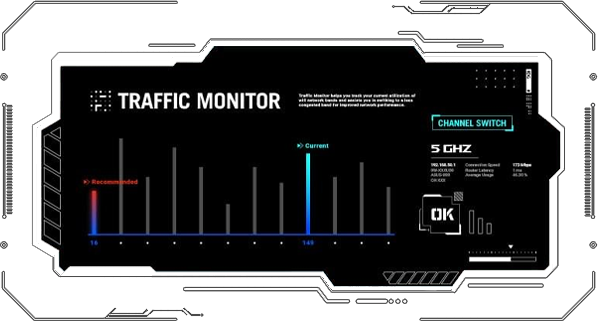

Traffic Monitor

Armoury Crate's Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the "Channel Switch" button* for improved network performance.

Fast Check

Armoury Crate's Fast Check empowers users to rapidly detect WiFi signal strength

Direction Finder

Armoury Crate's Direction Finder helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.

M.2 PCIE 5.0 Support

This motherboard also features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

M.2 Q-Release

The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.

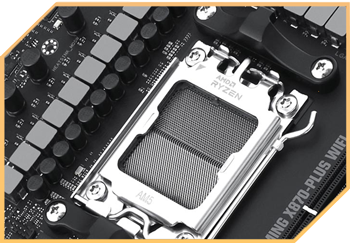

Power Design

Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 16(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Memory

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

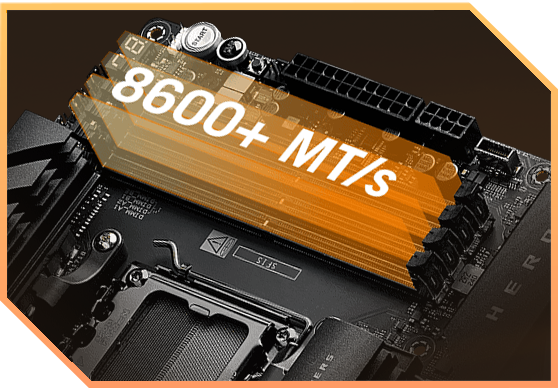

DDR5 Dominance

For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

Asus AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

Enlarged VRM Heatsinks

The extensive surface area of this heatsink covers the MOSFETs and chokes to improve thermal performance.

Multiple Temperature Sources

Each header can dynamically reference five thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Enlarged M.2 Heatsinks

Three of the four M.2 slots have dedicated heatsinks to help keep M.2 SSDs at optimal operating temperatures and ensure consistent performance and reliability.

Superb PCH Heatsink

An expanded surface area for the chipset cooler maximizes system performance and heat dissipation.

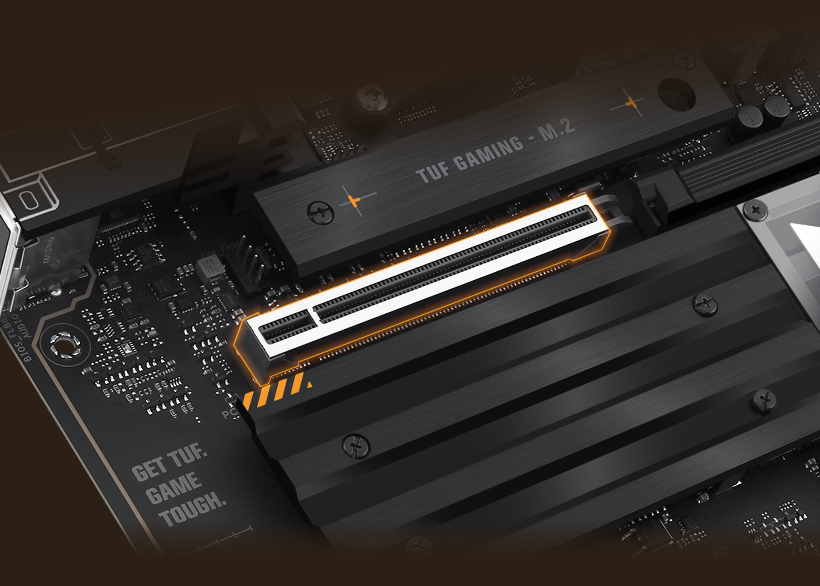

PCIe 5.0 for Graphics Card

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.

USB4® 40Gbps Type-C® Port

Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.

Front USB 20Gbps Type-C®

This motherboard features a USB 20Gbps Type-C® front panel connector for speedy data transfers of up to 20Gbps. And it offers Power Delivery (PD) 3.0 technology to provide up to 30W of quick charging.

WIFI 7

The next-gen WiFi 7 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.

Intel 2.5Gb Ethernet

On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5X. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers.

ASUS WiFi Q-Antenna

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

PCIe Slot Q-Release

A physical button unlocks the first PCIe slot's security latch with one tap.

M.2 Q-Latch

Secure the drive and neatly detach it with one tap.

Q-Antenna

With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast.

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 Series desktop processors.
Enhanced Power Solution: 16+2+1, 80A power stages, 8-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery.
ASUS Exclusive Technologies: AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance.

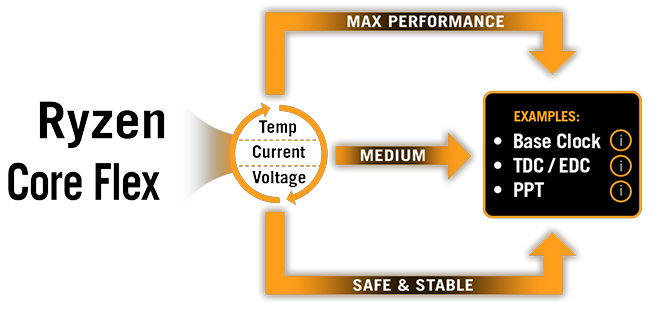

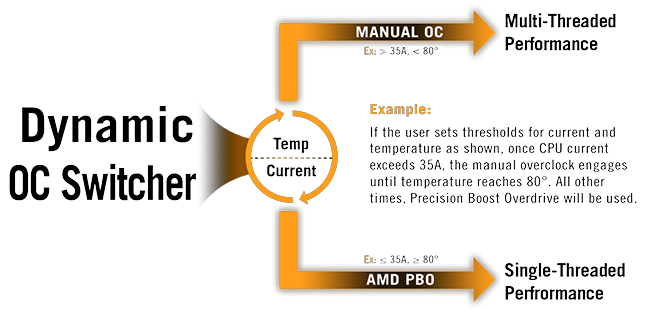

Overclocking Technologies: Dynamic OC Switcher, Core Flex and PBO Enhancement.
Latest M.2 Support: Two PCIe® 5.0 M.2 slots and two PCIe 4.0 M.2 slots, with massive M.2 heatsinks.

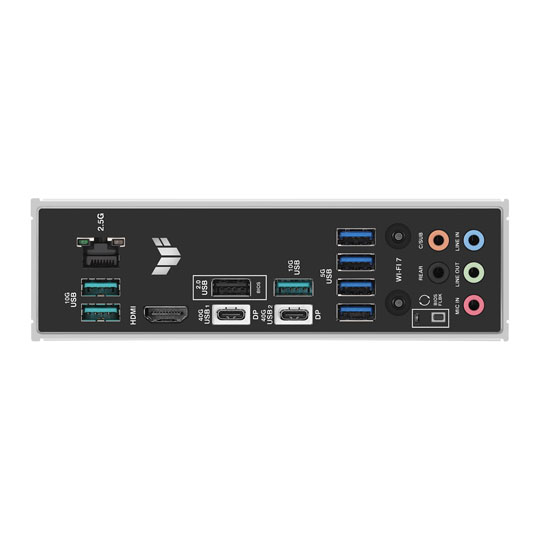

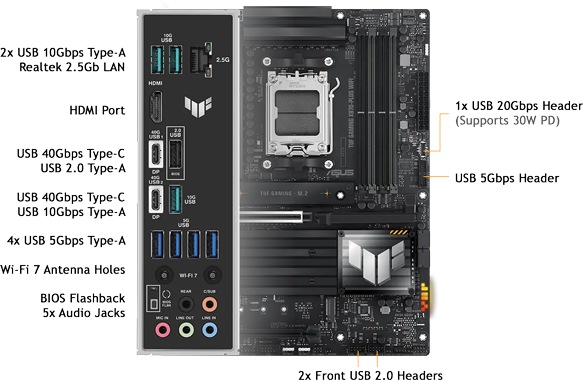

Ultrafast Connectivity: WiFi 7, PCIe 5.0 x16 slot full support for next-gen GPUs, Realtek 2.5G Ethernet, dual USB4® 40Gbps ports, front USB 20Gbps Type-C® with PD Fast Charge Support.

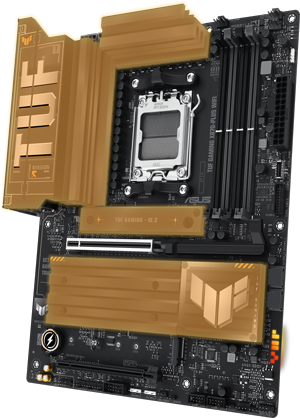

Comprehensive Cooling: Enlarged VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II.

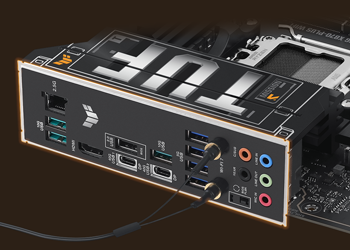

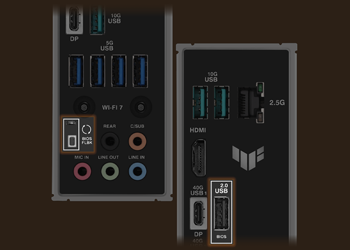

DIY-Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, BIOS FlashBack™ button, Q-LED and Pre-mounted I/O shield.
Renowned Software: ASUS DriverHub, ASUS GlideX and intuitive UEFI BIOS dashboard.
