Scan code: LN99749 Manufacturer code: TUF Gaming X570-Plus (WI-FI)

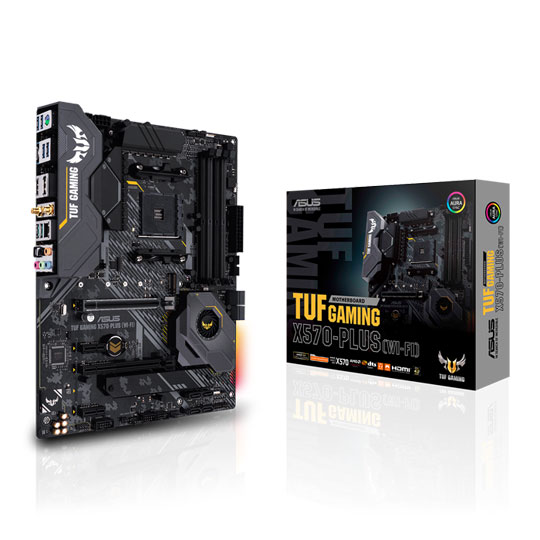

ASUS AMD Ryzen TUF GAMING X570 PLUS WIFI AM4 PCIe 4.0 ATX Motherboard

ASUS TUF GAMING X570-PLUS (WI-FI), AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way CrossFire, GbE/WiFi, USB 3.2, ATX

MORE INFO
MORE INFO
Thumbnail 1 : ASUS AMD Ryzen TUF GAMING X570 PLUS WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS AMD Ryzen TUF GAMING X570 PLUS WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS AMD Ryzen TUF GAMING X570 PLUS WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS AMD Ryzen TUF GAMING X570 PLUS WIFI AM4 PCIe 4.0 ATX Motherboard ASUS AMD Ryzen TUF GAMING X570 PLUS WIFI AM4 PCIe 4.0 ATX Motherboard : video thumbnail 1
Scan code: LN99749 Manufacturer code: TUF Gaming X570-Plus (WI-FI)
Order by 8:30 PM today and get it tomorrow
£233.94
Add To Basket
Get it Tomorrow, 30 JunIn stock
From £10.35 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £20.11
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £233.94
Total inc. interest: £241.29
Monthly Payment: £10.35
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £233.94
Total inc. interest: £248.19
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 30th Jun to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

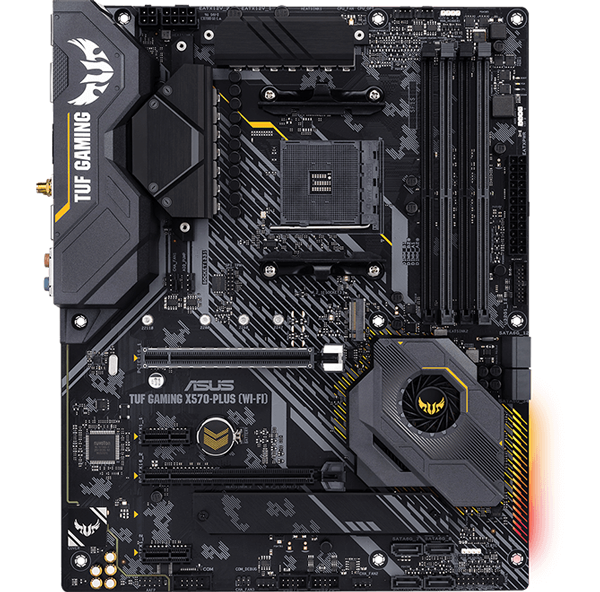

ASUS TUF Gaming X570-Plus (Wi-Fi) Ryzen 3rd Gen Motherboard

ASUS Gaming Motherboard

Built For the New 3rd gen RYZEN LineupTUF Gaming X570-Plus (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability. This particular X570 motherboard comes with built in Wi-Fi that pushes wireless data up to 2X faster so you'll get fast, smooth transfers, even when your rig is further away from the router.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

ASUS Power Design Motherboard

powerconnector

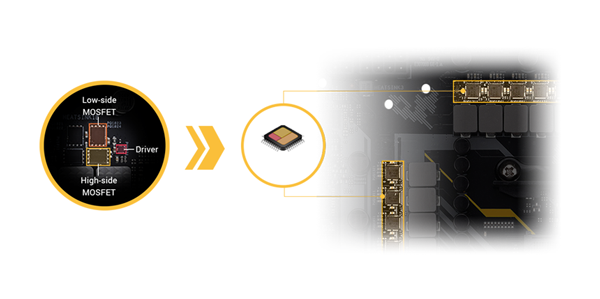

Driver and Mosfet The TUF Gaming X570-Plus (Wi-Fi)'s CPU VRM utilises 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.

controller

6-Layer PCB Multiple PCB layers shift heat away from critical components, providing more headroom to push your CPUs beyond stock speeds

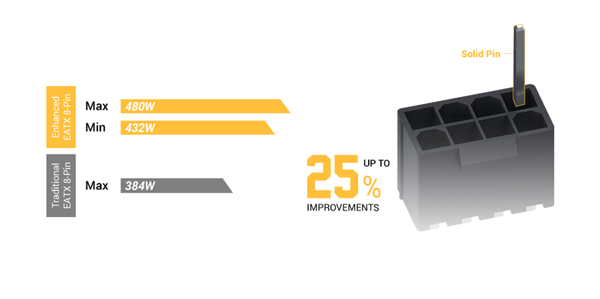

Procool Sockets Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.

Integrated Heatsink For Maximum Efficiency

COOLING
down

VRM heatsink with thermal PadLarge, high-mass heatsink with extensive surface that covers the VRM and choke areas. Also High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.

up

ACTIVE CHIPSET HEATSINKA chipset heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.

up

M.2 heatsinkThe M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

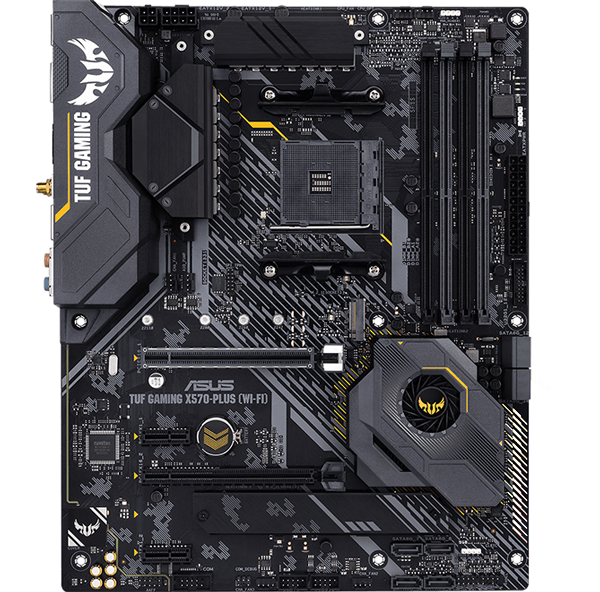

Get the Ultimate Light Show with ASUS AURA SYNC

RGB

Get the ultimate control of all your RGB DevicesASUS motherboards deliver sterling performance, accented by aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Built with Integrated Intel Wi-Fi

built in wifi

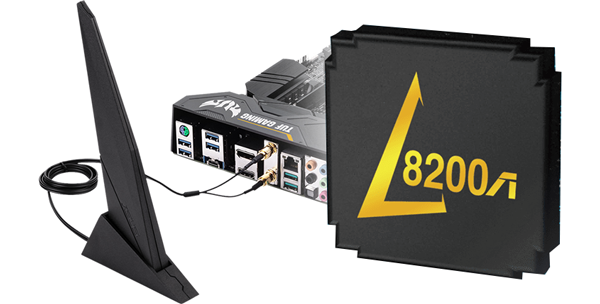

Pushing the Boundaries of Wireless Connections TUF Gaming X570-Plus (Wi-Fi) features Intel Wireless AC-9260 Wi-Fi 5 for wireless speeds of up to 1.73Gbps. In fact, its integrated Wireless-AC 9260 Wi-Fi adapter pushes wireless data up to 2X faster so you'll get fast, smooth transfers, even when your rig is further away from the router. The Intel Wireless also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.

ASUS High Definition Gaming Audio

asus audio
down

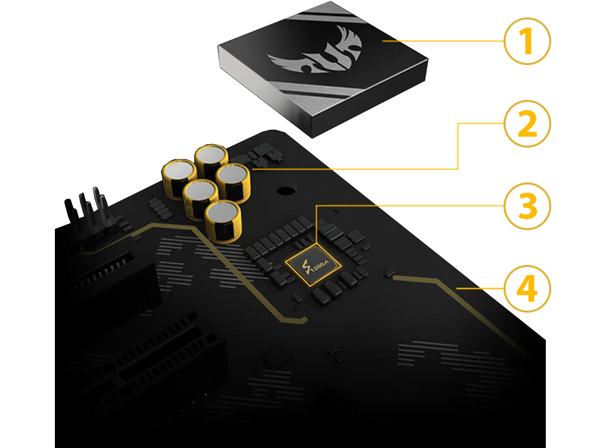

TUF Gaming audio coverEffective shielding preserves the integrity of audio signals to ensure best quality.

up

Audio EnjoymentPremium Japanese audio capacitors provide warm, natural, and immersive sound.

up

Exclusive S1200A CodecDelivers an expansive and soundstage and reliable dynamics.

up

Audio shieldingSeparates analogue/digital signal domains, significantly reducing multi-lateral interference.

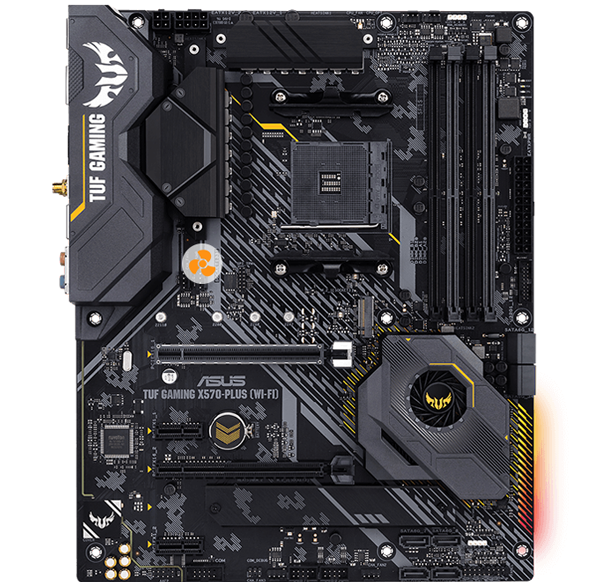

ASUS Cooling Optimization and Monitoring

powerconnector

Multiple temperature sources Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.​

controller

All in One Water Cooling Set Enables full control of PWM or DC water pumps, perfect for both custom and self-contained cooling setups.

4-PIN

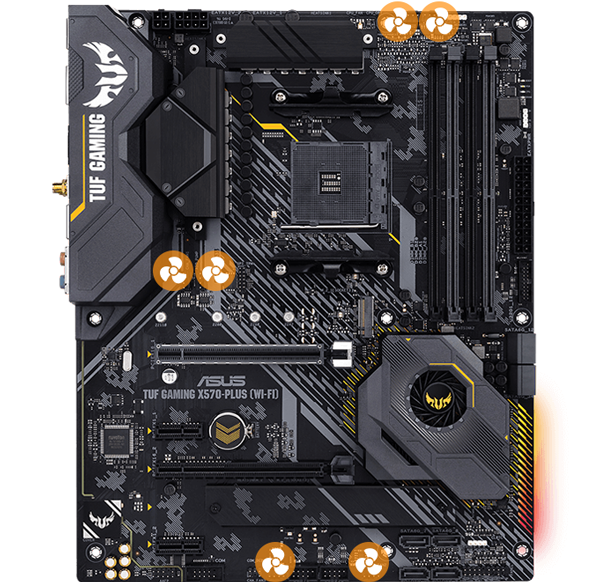

4-Pin PWM/DC fan Every onboard header supports auto-detection of PWM or DC fans.

Smart Protection

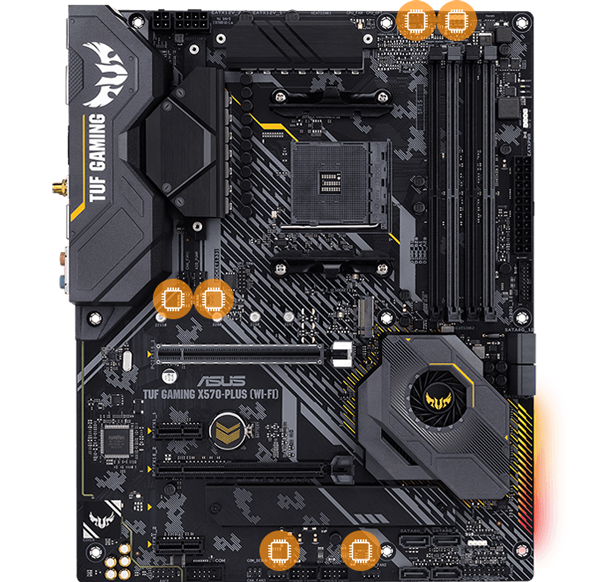

Smart Protection A dedicated integrated circuit protects each fan header from over-temperature and overcurrent.

Control Your Rig With Detailed Tuning Software

Fan Xpert 4

Flexible Cooling Controls With the ROG Series you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

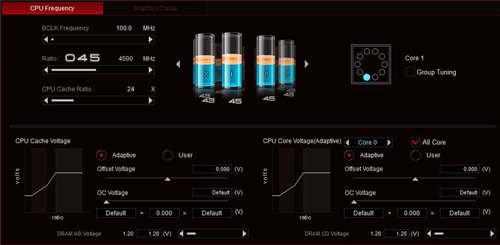

TPU Insight

CPU Performance Boost Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

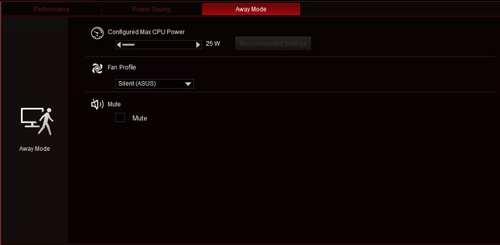

EPU Guidance

All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.

Turbo App

Optimization for gamers and professionals Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App every day. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level, meaning your ROG system is perfectly optimized for what you're doing.

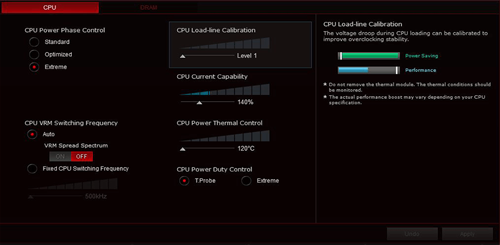

DIGI+POWER CONTROL

Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Specifications
Core Specifications
Edition TUF GAMING X570-PLUS (WI-FI)
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1200A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 3 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-bit dual-channel LVDS
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 2 x RGB Header
  • 8 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Wireless-AC 9260 (ac WiFi, BT5)
  • 1 x Realtek L8200A (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI 1.4b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN99749
Model Number TUF Gaming X570-Plus (WI-FI)
GTIN 4718017388498
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
ASUS TUF GAMING X570-PLUS (WI-FI), AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way CrossFire, GbE/WiFi, USB 3.2, ATX is rated 4.7 out of 5 by 21.
